OEM#: VKWO36-BNew OEM Original Outright

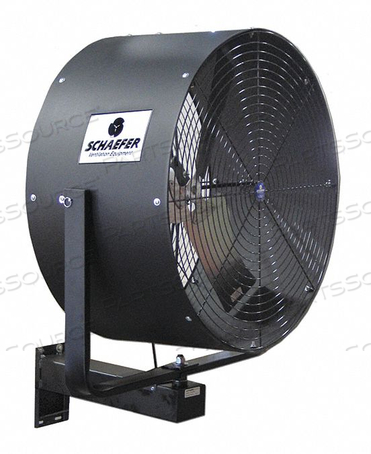

STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by JJS Technical Services
Your price:
$2,338.43 each
OEM#: VKWO36-BSTNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD by JJS Technical Services
New OEM Original Outright
Your price:
$2,338.43 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: VKWO36-B Key Specs
Item
STNDRD DTY INDSTRL FAN 36 BLDE DIA 1SPD
OEM
JJS Technical Services
OEM #
VKWO36-B
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
11,690 cfm
Air Velocity @ 20 Ft.
500 fpm
Amps
7/3.5
Assembly
Assembly Required
Bearing Type
Sealed Ball
Blade Diameter
36 in
Blade Material
Galvanized Steel
Country of Origin
USA
Depth
33 1/4 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
5 ft
Fan Housing Material
Polyethylene
Fan Mounting Location
Wall
Guard Material
Steel
Height
60 7/8 in
Hz
60 Hz
Includes
Wall Mount Bracket
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/2 hp
Motor Insulation
Class F
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
1
Oscillation
Oscillating
Phase
1
RPM
825
Shaft Dia.
5/8 in
Standards
UL Motor
Thermal Protection
Auto
Voltage
115/230V AC
Watts
540
Wheeled Base
Stationary
Width
40 1/4 in
Wire Guard Finish
Black Powder Coated
