OEM#: ET1125CNew OEM Original Outright

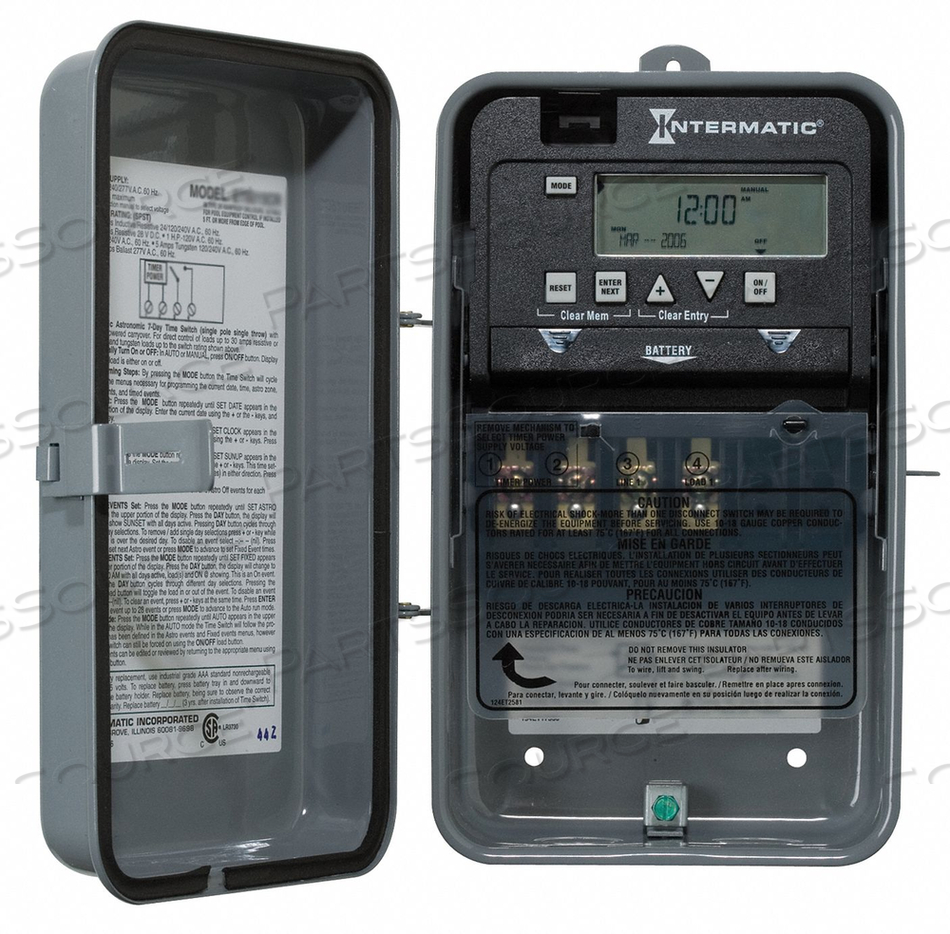

ELECTRONIC TIMER 24 HR SPST by Intermatic

Your price:
$334.50 eachReady to ship
ELECTRONIC TIMER 24 HR SPST by Intermatic
ELECTRONIC TIMER 24 HR SPST by Intermatic

OEM#: ET1125C
ELECTRONIC TIMER 24 HR SPST by Intermatic

New OEM Original Outright
Your price:
$334.50 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
Product Overview

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.

Technical Specs
P/N: ET1125C Key Specs
Item
ELECTRONIC TIMER 24 HR SPST
OEM
Intermatic
OEM #
ET1125C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
30 A
Available Actions - Electronic Timer
On/Off, Pulse
Backup Device
(2) AAA Batteries
Backup Time
3 yr
Color
Gray
Contact Form
SPST
Country of Origin
China
Depth
5 in
Description/Special Features
Non-volatile EEPROM memory protects programming indefinitely; Temporary override or permanent manual override available via push buttons
Display Height
1 in
Display Width
2-3/4 in
Enclosure
Metal
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
Events Available - Electronic Timer
28
HP @ 120V
1
HP @ 240V
2
Height
7-3/4 in
Max Time Setting
24 hr
Min Time Setting
1 min
Mounting
Surface
NEMA Rating
1
Number of Channels
2
Number of Poles
1
Operating Temperature
-40 Degrees to 155 Degrees F
Operation Mode
24 hr
Pulse Duration
2 sec
Standards
California Title 24 Complaint, cCSAul Listed
Voltage
120/208 to 240/277V AC
Width
3 in

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
