OEM#: CRY30VUURNew OEM Original Outright

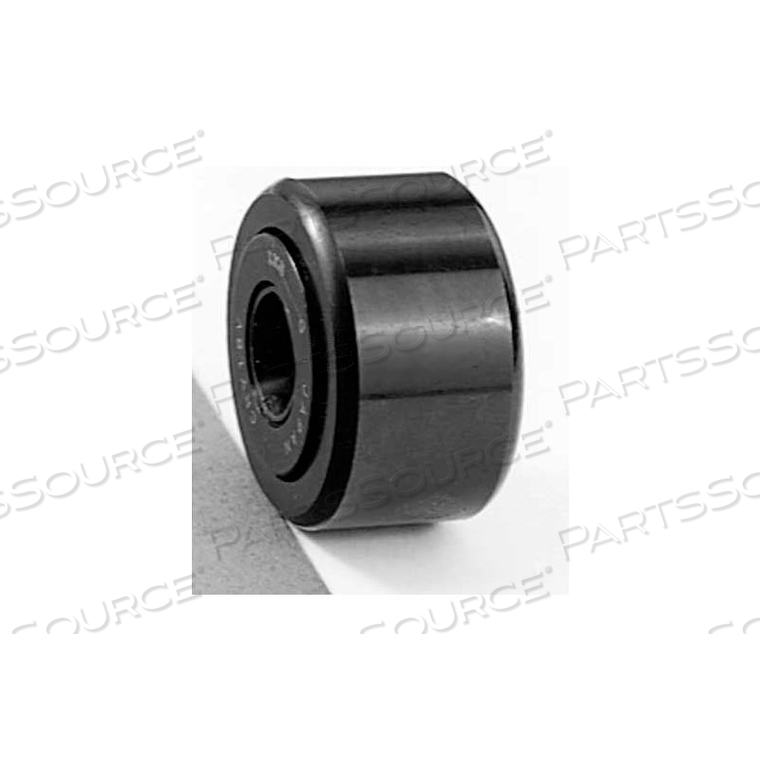

ROLLER FOLLOWER- FULL COMP- INCH, CROWNED OD, DOUBLE SEALED, 1-7/8" OD by IKO International

Your price:
$44.15 eachReady to ship
ROLLER FOLLOWER- FULL COMP- INCH, CROWNED OD, DOUBLE SEALED, 1-7/8" OD by IKO International
ROLLER FOLLOWER- FULL COMP- INCH, CROWNED OD, DOUBLE SEALED, 1-7/8" OD by IKO International

OEM#: CRY30VUUR
ROLLER FOLLOWER- FULL COMP- INCH, CROWNED OD, DOUBLE SEALED, 1-7/8" OD by IKO International

New OEM Original Outright
Your price:
$44.15 each
Ready to ship
Asset Information

Must purchase minimum of 2

Are you an existing customer? Sign in to access your account.
Product Overview

IKO Roller Follower- Full Comp- Inch, CRY30VUUR, Crowned OD, Double Sealed, 1-7/8" OD

IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

Technical Specs
P/N: CRY30VUUR Key Specs
Item
ROLLER FOLLOWER- FULL COMP- INCH, CROWNED OD, DOUBLE SEALED, 1-7/8" OD
OEM
IKO International
OEM #
CRY30VUUR
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Crowned OD
Bore Diameter Millimeters (Inch)
12.700 (1/2)
Bore Tolerance (Mm)
+0.005 / -0.010
Country of Origin
Japan
Crown Radius (R) Mm (Inch)
500 (20)
Dynamic Load Rating (N)
35300
Needle Construction
Full Compliment
O.D. Tolerance (Mm)
+0 / -0.050
Od Mm (Inch)
47.625 (1-7/8)
Oil Hole & Groove
At inner ring
Outer Ring Width Mm (Inch)
25.400 (1)
Overall Width Mm (Inch)
26.988 (1.0625)
Prepacked Grease
YES
Radial Clearance
0.035 to 0.060
Retainer
None
Series
CRY
Shaft Dia Drive Fit (Mm)
12.698 to 12.708
Shaft Dia Press Fit (Mm)
12.708 to 12.718
Shaft Dia Push Fit (Mm)
12.682 to 12.692
Side Plate Od (A) Mm (Inch)
32.7 (1.287)
Static Load Rating (N)
55600
Tolerance Outer Ring Width (Mm)
+0 / -0.130
Tolerance Overall Width (Mm)
+0.130 / -0.250
Track Capacity (N)
4610
Type
Double Sealed

IKO Roller Follower- Full Comp- Inch, CRY30VUUR, Crowned OD, Double Sealed, 1-7/8" OD

IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.
