OEM#: CR32BUUNew OEM Original Outright

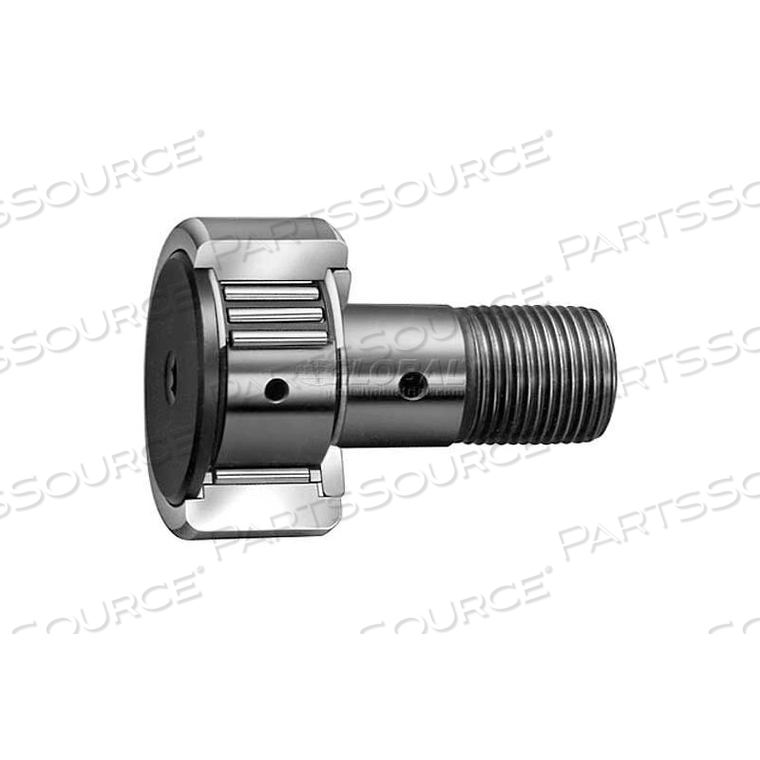

CAM FOLLOWER-INCH CAGED HEX HOLE DBL SEALED 2" OD 1-1/4"W 7/8 - 14 THR by IKO International
Your price:
$75.61 each
OEM#: CR32BUUCAM FOLLOWER-INCH CAGED HEX HOLE DBL SEALED 2" OD 1-1/4"W 7/8 - 14 THR by IKO International
New OEM Original Outright
Your price:
$75.61 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
IKO Cam Follower-INCH, Caged, Hex Hole, Double Sealed, 2" OD, 1-1/4" Width, 7/8 - 14 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Technical Specs
P/N: CR32BUU Key Specs
Item
CAM FOLLOWER-INCH CAGED HEX HOLE DBL SEALED 2" OD 1-1/4"W 7/8 - 14 THR
OEM
IKO International
OEM #
CR32BUU
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Cylindrical OD
Clamping Diameter (F) Minimum Mm (Inch)
37.306 (1-15/32)
Corner Radius ( R ) Mm (Inch)
1.588 (1/16)
Country of Origin
Japan
Dimension B
33.5mm (1.32")
Dimension B2
50.800mm (2")
Dimension B3
12.700mm (1/2")
Dimension C1
0.794mm (1/32")
Dimension G1
4.762mm (3/16")
Dimension G2
4.762mm (3/16")
Dimension H
11.112mm (7/16")
Dynamic Load Rating (N)
32500
Needle Construction
Caged
O.D. Tolerance (Mm)
+0 / -0.25
Od (D) Mm/Inch
50.800 (2)
Oil Hole
Stud End, Stud Outside
Radial Clearance
0.010 to 0.030
Series
CR
Static Load Rating (N)
63900
Stud Diameter (D1) Mm (Inch)
22.225 (7/8)
Temperature Range F
-20°-120°F
Thread (G) Unf
7/8 - 14
Tolerance For Mounting Hole (Mm / Inch)
+0.041 / +0.020 (+.0016 / +.0008)
Tolerance For Stud Diameter (Mm)
+0.25 / -0
Torque Max (Nm)
162
Track Capacity (N)
30900
Type
Double Sealed
Width (C) Mm/Inch
31.750 (1-1/4)
Width (C) Tolerance (Mm)
+0 / -0.130
IKO Cam Follower-INCH, Caged, Hex Hole, Double Sealed, 2" OD, 1-1/4" Width, 7/8 - 14 Thread
