OEM#: CR14New OEM Original Outright
CAM FOLLOWER-INCH CAGED SCREWDRIVER SLOT 7/8" OD 1/2"W 3/8 - 24 THR by IKO International
Your price:
$20.59 each
OEM#: CR14CAM FOLLOWER-INCH CAGED SCREWDRIVER SLOT 7/8" OD 1/2"W 3/8 - 24 THR by IKO International
New OEM Original Outright
Your price:
$20.59 each
Asset Information
Must purchase minimum of 4
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

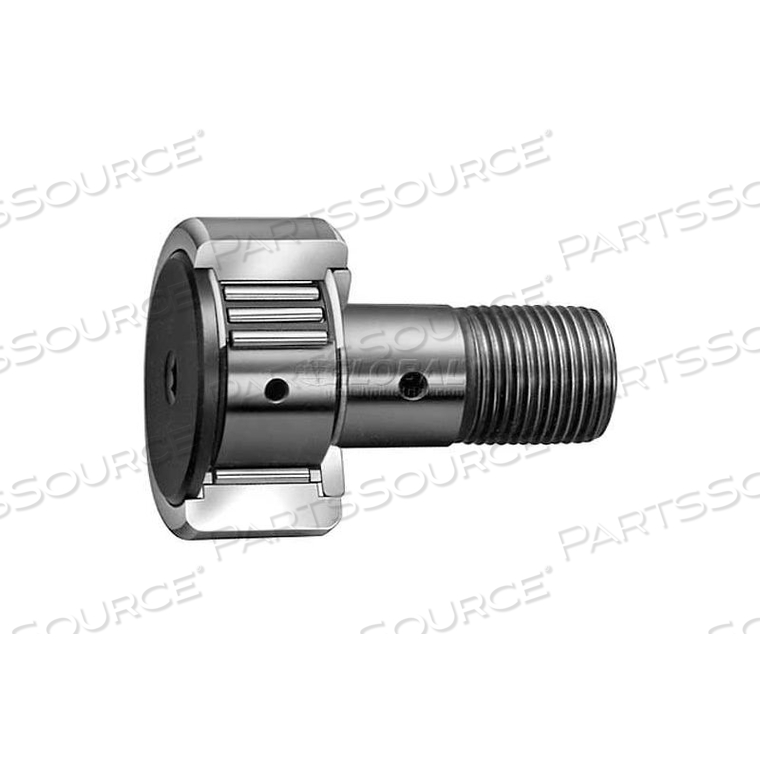

IKO Cam Follower-INCH, Caged, Screwdriver Slot, 7/8" OD, 1/2" Width, 3/8 - 24 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Technical Specs
P/N: CR14 Key Specs
Item
CAM FOLLOWER-INCH CAGED SCREWDRIVER SLOT 7/8" OD 1/2"W 3/8 - 24 THR
OEM
IKO International
OEM #
CR14
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Cylindrical OD
Clamping Diameter (F) Minimum (mm (in))
15.081 (19/32)
Corner Radius (R) (mm/in)
0.794 (1/32)
Country of Origin
Japan
Dimension B
14.2mm (0.56")
Dimension B2
22.225mm (7/8")
Dimension B3
6.350mm (1/4")
Dimension C1
0.794mm (1/32")
Dimension G1
4.762mm (3/16")
Dimension G2
2.381mm (3/32")
Dynamic Load Rating (N)
4790
Maximum Torque (Nm)
10.8
Needle Construction
Caged
OD (D) (mm (in))
22.225 (7/8)
OD Tolerance (mm)
+0 / -0.25
Oil Hole
Stud Head, End, Outside
Radial Clearance
0.005 to 0.025
Series
CR
Static Load Rating (N)
5810
Stud Diameter (D1) (mm (in))
9.525 (3/8)
Temperature Range (°F)
-20°-120°F
Thread (G) UNF
3/8 - 24
Tolerance for Mounting Hole (mm/in)
+0.028 / +0.013 (+.0011 / + .0005)
Tolerance for Stud Diameter (mm)
+0.25 / -0
Track Capacity (N)
5250
Width (C) (mm (in))
12.700 (1/2)
Width (C) Tolerance (mm)
+0 / -0.130
