OEM#: CFE16VUURNew OEM Original Outright

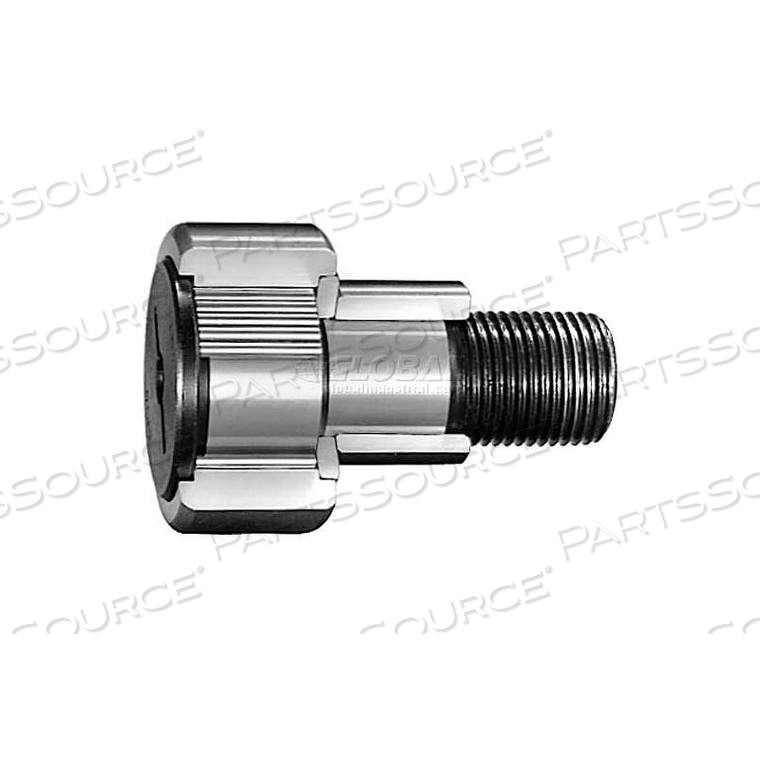

CAM FOLLOWER ECC COLLAR FULL COMP CROWN OD SCDR SLOT DBL SEALED 35MM OD 18MM W M16 X 1.5 THR by IKO International
Your price:
$125.95 each
OEM#: CFE16VUURCAM FOLLOWER ECC COLLAR FULL COMP CROWN OD SCDR SLOT DBL SEALED 35MM OD 18MM W M16 X 1.5 THR by IKO International
New OEM Original Outright
Your price:
$125.95 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
IKO Eccentric Cam Follower-METRIC, Eccentric Collar, Full Complement, Crowned OD, Screwdriver Slot, Double Sealed, 35mm OD, 18mm Width, M16 x 1.5 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. An eccentric collar is fixed to the stud that makes outer ring positioning easier in radial direction against mating track surface. Most of Cam Followers come with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. An eccentric collar is fixed to the stud that makes outer ring positioning easier in radial direction against mating track surface. Most of Cam Followers come with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Technical Specs
P/N: CFE16VUUR Key Specs
Item
CAM FOLLOWER ECC COLLAR FULL COMP CROWN OD SCDR SLOT DBL SEALED 35MM OD 18MM W M16 X 1.5 THR
OEM
IKO International
OEM #
CFE16VUUR
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Crowned OD
Clamping Diameter (F) Minimum Mm (Inch)
26
Collar Diameter (De) (Mm)
22
Corner Radius ( R ) Mm (Inch)
0.6
Country of Origin
Japan
Crown Radius (R) Mm (Inch)
500
Dimension B
19.6mm max
Dimension B1
52.1mm max
Dimension B2
32.5mm
Dimension B3
15.5mm
Dimension C1
0.8mm
Dimension G1
6mm
Dynamic Load Rating (N)
20700
Eccentricity (ℇ) (Mm)
0.8
Inner Ring Corner Radius Min (Mm)
0.6
Needle Construction
Full Complement
O.D. Tolerance (Mm)
+0 / -0.050
Od (D) Mm/Inch
35
Oil Hole
Stud Head, End, Outside
Permissible Static Load (N)
23200
Prepacked Grease
Yes
Radial Clearance
0.010 to 0.030
Series
CFE
Static Load Rating (N)
37600
Temperature Range F
-20°-120°F
Thread (G) Unf
M16 x 1.5
Torque Max (Nm)
58.5
Track Capacity (N)
3060
Type
Double Sealed
Width (C) Mm/Inch
18
Width (C) Tolerance (Mm)
+0 / -0.120
IKO Eccentric Cam Follower-METRIC, Eccentric Collar, Full Complement, Crowned OD, Screwdriver Slot, Double Sealed, 35mm OD, 18mm Width, M16 x 1.5 Thread
