OEM#: RJUI-01-24New OEM Original Outright

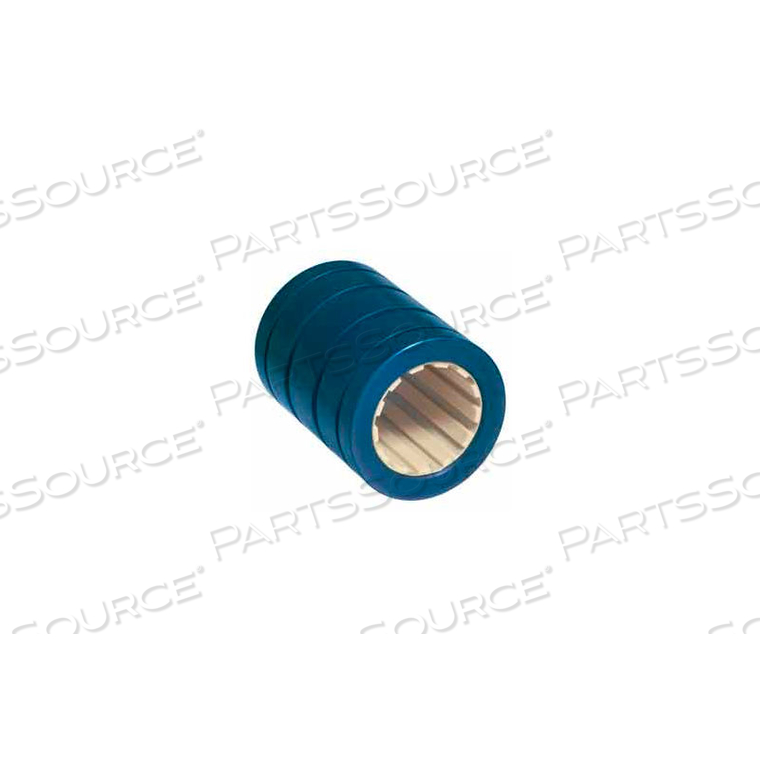

1-1/2" DRYLIN R POLYMER LINEAR BEARING WITH SHELL by igus
Your price:
$71.35 each
OEM#: RJUI-01-241-1/2" DRYLIN R POLYMER LINEAR BEARING WITH SHELL by igus
New OEM Original Outright
Your price:
$71.35 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
1-1/2" DryLin R Polymer Linear Bearing with Shell
Special Features:
- Anodized aluminum adapter
- Dimensionally interchangeable with recirculating ball bushings
- Equipped with liner made from iglide® J
- Temperature range -40°F to +194°F JUI-01 (standard), JUI-20 (low clearance)
*T500 liner optional for chemicals/high temps (up to 482°F for steel housing, 356°F for aluminum) - Suitable shafting for iglide® J: DryLin® AWI aluminum, case-hardened, 300 series
- Best shafting for T500: hard-chrome and hard stainless steel
Technical Specs
P/N: RJUI-01-24 Key Specs
Item
1-1/2" DRYLIN R POLYMER LINEAR BEARING WITH SHELL
OEM
igus
OEM #
RJUI-01-24
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Diagram Dimension Dn
2.2410
Diagram Dimension Do
2.1520
Diagram Dimension E
0.750
Diagram Dimension S
0.0950
Dimension B
3.0000
Dimension B1
2.4400
Dimension C
0.875
Dimension O
0.1620
Dynamic Load Lbs.
1622
Manufacturer Name
igus, Inc.
Max. Temperature
194°F
Nominal Size Inches
1/2
Static Load Lbs.
11358
Tolerance
0.0020-0.0041
