OEM#: 9630ANPBNew OEM Original Outright

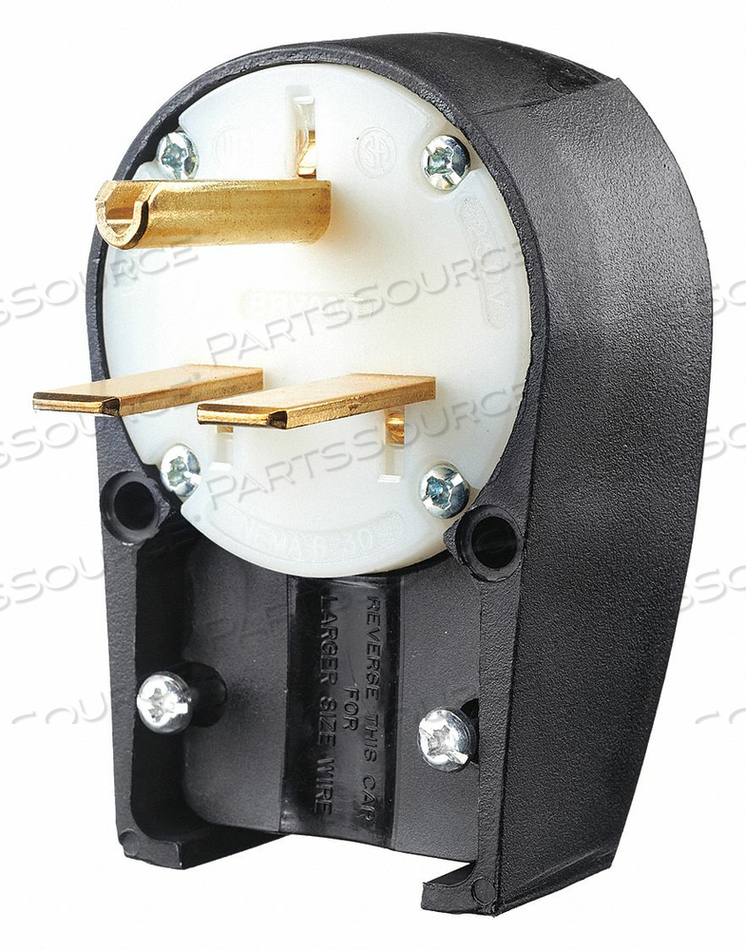

ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK/WHITE, 2 POLES by Hubbell Power Systems

Your price:
$73.82 eachReady to ship
HomeHubbell Power Systems9630ANPB
ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK/WHITE, 2 POLES by Hubbell Power Systems
ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK/WHITE, 2 POLES by Hubbell Power Systems

OEM#: 9630ANPB
ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK/WHITE, 2 POLES by Hubbell Power Systems

New OEM Original Outright
Your price:
$73.82 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 9630ANPB Key Specs
Item
ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK/WHITE, 2 POLES
OEM
Hubbell Power Systems
OEM #
9630ANPB
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Blade Material
Brass
Connection Orientation
Angled
Country of Origin
USA
Current Rating
30 A
For Maximum Cable Diameter
1.38 in
For Minimum Cable Diameter
0.625 in
Horsepower Rating
2 hp
Housing Color
Black; White
Housing Material
Nylon
IP Rating
Not Rated
Insulation Material
Nylon
NEMA Plug Configuration
6-30P
Number of Blades
3
Number of Poles
2
Outside Diameter
3.25 in
Overall Length
4.19 in
Phase
Single
Polarized
Yes
Resistance Properties
Chemical Resistant ; Impact Resistant
Standards
CSA Certified; UL Listed
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Wiring Style
Standard
