OEM#: 8269TNew OEM Original Outright

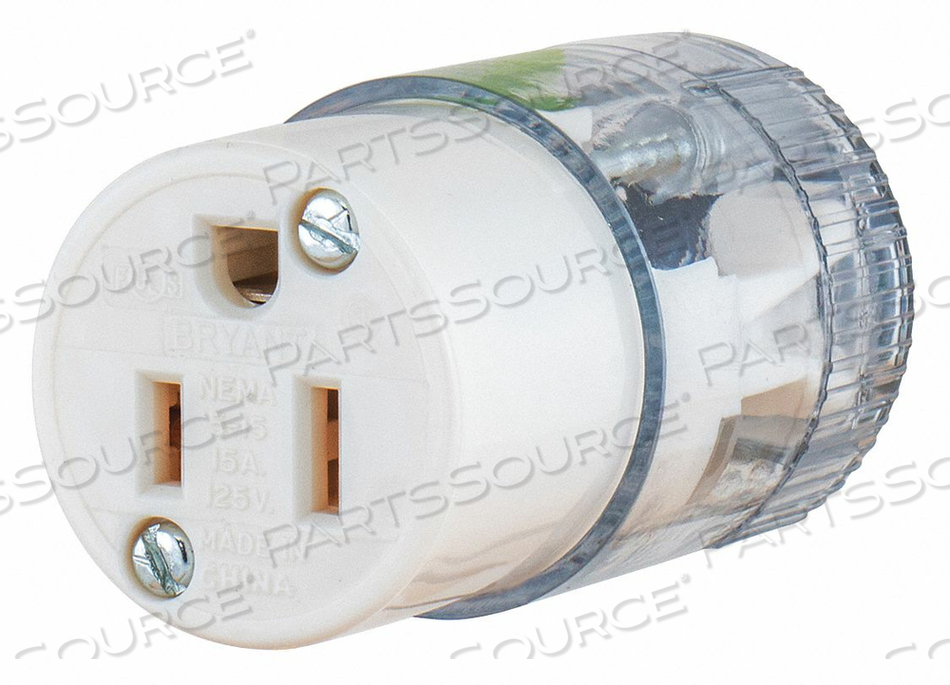

STRAIGHT BLADE CONNECTOR, 5-15R, 15 A, 125V AC, 2 POLES, CLEAR by Hubbell Power Systems
Your price:
$29.06 each
OEM#: 8269TSTRAIGHT BLADE CONNECTOR, 5-15R, 15 A, 125V AC, 2 POLES, CLEAR by Hubbell Power Systems
New OEM Original Outright
Your price:
$29.06 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 8269T Key Specs
Item
STRAIGHT BLADE CONNECTOR, 5-15R, 15 A, 125V AC, 2 POLES, CLEAR
OEM
Hubbell Power Systems
OEM #
8269T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Connection Orientation
Straight
Contact Material
Copper
Country of Origin
China
Current Rating
15 A
For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.25 in
Grade
Hospital Grade
Grounding
Grounded
Housing Color
Clear
Housing Material
Thermoplastic Elastomer
IP Rating
Not Rated
Insulation Material
Thermoplastic Elastomer
Maximum Operating Temperature
60 °C
Maximum Wire Size
10 AWG
Minimum Operating Temperature
-40 °C
Minimum Wire Size
18 AWG
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Overall Length
2.95 in
Phase
Single
Power Indicating Light
No
Resistance Properties
Dust Ignition Proof; Impact Resistant
Standards
CSA Certified; Federal Specification W-C-596; NEMA WD-1; NEMA WD-6; UL 498
UL 94 Flammability Rating
HB
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Wiring Style
Standard
