OEM#: 70615NPNew OEM Original Outright

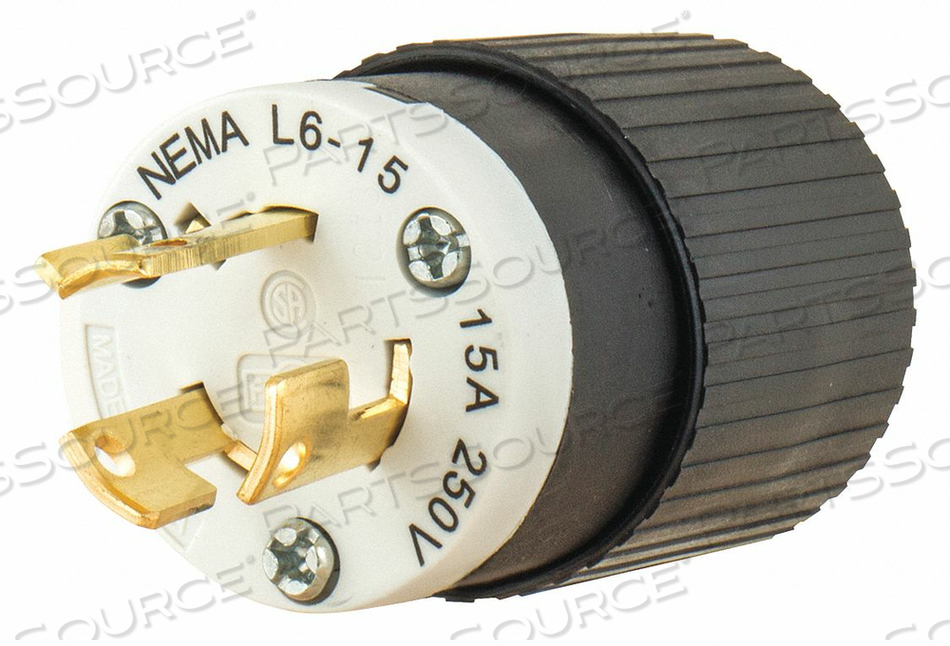

LOCKING PLUG, L6-15P, 250V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L6-15 by Hubbell Power Systems

Your price:
$16.08 eachReady to ship
HomeHubbell Power Systems70615NP
LOCKING PLUG, L6-15P, 250V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L6-15 by Hubbell Power Systems
LOCKING PLUG, L6-15P, 250V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L6-15 by Hubbell Power Systems

OEM#: 70615NP
LOCKING PLUG, L6-15P, 250V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L6-15 by Hubbell Power Systems

New OEM Original Outright
Your price:
$16.08 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 70615NP Key Specs
Item
LOCKING PLUG, L6-15P, 250V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L6-15
OEM
Hubbell Power Systems
OEM #
70615NP
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Length
1.53 in
Connection Orientation
Straight
Country of Origin
China
Current Rating
15 A
Face Diameter
1.38 in
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.3 in
Grounding
Grounded
Horsepower Rating
1/2 hp
Housing Color
Black; White
Housing Material
Nylon
IP Rating
IP20
Market
Industrial
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
NEMA Plug Configuration
L6-15P
Number of Blades
3
Number of Poles
2
Outside Diameter
1.53 in
Overall Length
1.53 in
Phase
Single
Polarized
Yes
Resistance Properties
Chemical Resistant; Impact Resistant
Shrouded
No
Standards
NEMA WD-1; NEMA WD-5; UL 498
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Wiring Style
Standard
