OEM#: 5662INew OEM Original Outright

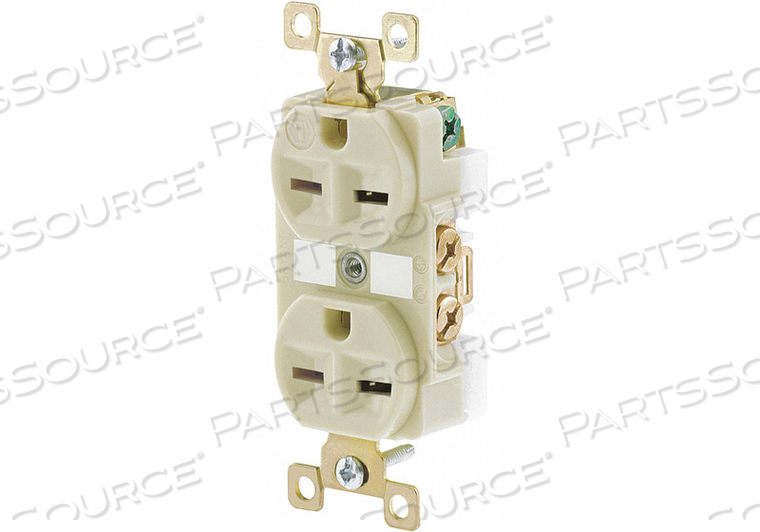

RECEPTACLE, DUPLEX, 6-15R, 250V AC, 15 A, IVORY, 2 POLE / 3 WIRE, SCREW TERMINALS by Hubbell Power Systems

Your price:
$22.05 eachReady to ship
HomeHubbell Power Systems5662i
RECEPTACLE, DUPLEX, 6-15R, 250V AC, 15 A, IVORY, 2 POLE / 3 WIRE, SCREW TERMINALS by Hubbell Power Systems
RECEPTACLE, DUPLEX, 6-15R, 250V AC, 15 A, IVORY, 2 POLE / 3 WIRE, SCREW TERMINALS by Hubbell Power Systems

OEM#: 5662I
RECEPTACLE, DUPLEX, 6-15R, 250V AC, 15 A, IVORY, 2 POLE / 3 WIRE, SCREW TERMINALS by Hubbell Power Systems

New OEM Original Outright
Your price:
$22.05 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5662I Key Specs
Item
RECEPTACLE, DUPLEX, 6-15R, 250V AC, 15 A, IVORY, 2 POLE / 3 WIRE, SCREW TERMINALS
OEM
Hubbell Power Systems
OEM #
5662I
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AFCI
No
Connection Orientation
Straight
Country of Origin
China
Cover Type
No Cover
Current Rating
15 A
Face Plate Height
2.7 in
Face Plate Width
1.4 in
GFCI
No
Grade
Federal Specification
Grounding
Grounded
Horsepower Rating
1-1/2 hp
Housing Color
Ivory
Housing Material
Nylon
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 °F
Maximum Wire Size
10 AWG
Minimum Operating Temperature
-40 °F
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Mount Type
Flush
NEMA Receptacle Configuration
6-15R
Number of Gangs
1
Number of Poles
2
Number of Wires
3
Overall Depth
0.8 in
Phase
Single
Polarized
Yes
Receptacle Type
Duplex
Signal & Power Protection
Standard Protection
Special Resistance Properties
Corrosion Resistant
Standards
CSA Certified C22.2; Federal Specification W-C-596; NEMA WD-6; UL 498
Surge Protection
No
UL 94 Flammability Rating
V-2
Voltage Rating
250V AC
Wire Connection Location
Back; Side
Wire Connection Type
Screw Terminals
Wire Connection Types
Screw Terminals
