OEM#: 4770NPNew OEM Original Outright

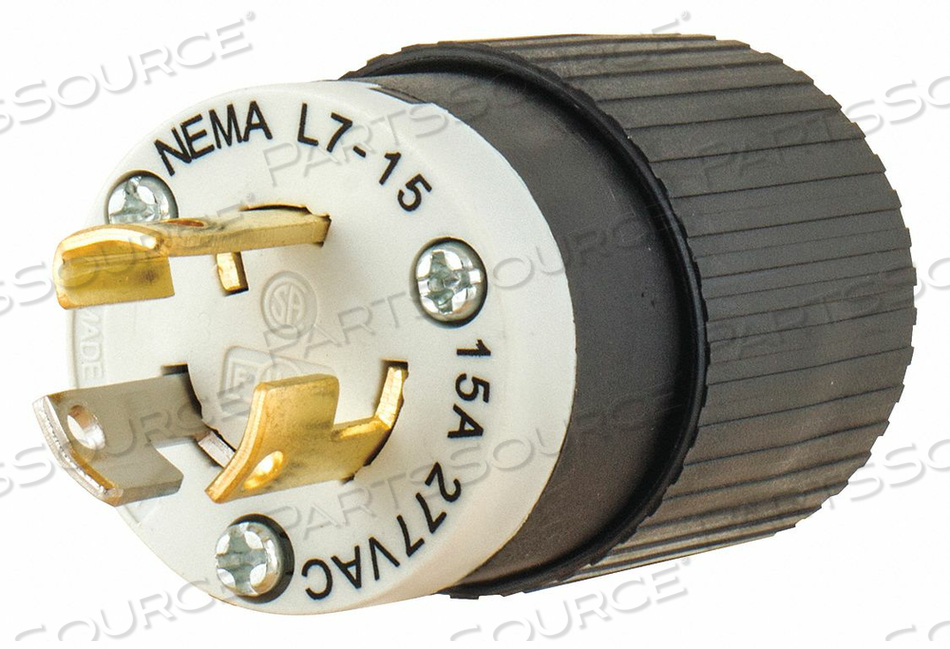

LOCKING PLUG, L7-15P, 277V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L7-15 by Hubbell Power Systems

Your price:
$21.49 eachReady to ship
HomeHubbell Power Systems4770NP
LOCKING PLUG, L7-15P, 277V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L7-15 by Hubbell Power Systems
LOCKING PLUG, L7-15P, 277V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L7-15 by Hubbell Power Systems

OEM#: 4770NP
LOCKING PLUG, L7-15P, 277V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L7-15 by Hubbell Power Systems

New OEM Original Outright
Your price:
$21.49 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4770NP Key Specs
Item
LOCKING PLUG, L7-15P, 277V AC, 15 A, 2 POLES, BLACK/WHITE, SCREW TERMINALS, L7-15
OEM
Hubbell Power Systems
OEM #
4770NP
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Length
1.53 in
Connection Orientation
Straight
Country of Origin
China
Current Rating
15 A
Face Diameter
1.38 in
For Environment
Dry
For Location
Indoor
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.3 in
Grounding
Grounded
Horsepower Rating
2 hp
Housing Color
Black; White
Housing Material
Composite
IP Rating
IP20
Market
Industrial
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
NEMA Plug Configuration
L7-15P
Number of Blades
3
Number of Poles
2
Outside Diameter
1.53 in
Overall Length
1.53 in
Phase
Single
Polarized
Yes
Resistance Properties
Chemical Resistant; Impact Resistant
Shrouded
No
Standards
NEMA WD-1; NEMA WD-5; UL 498
Voltage Rating
277V AC
Wire Connection Type
Screw Terminals
Wiring Style
Standard
