Repair

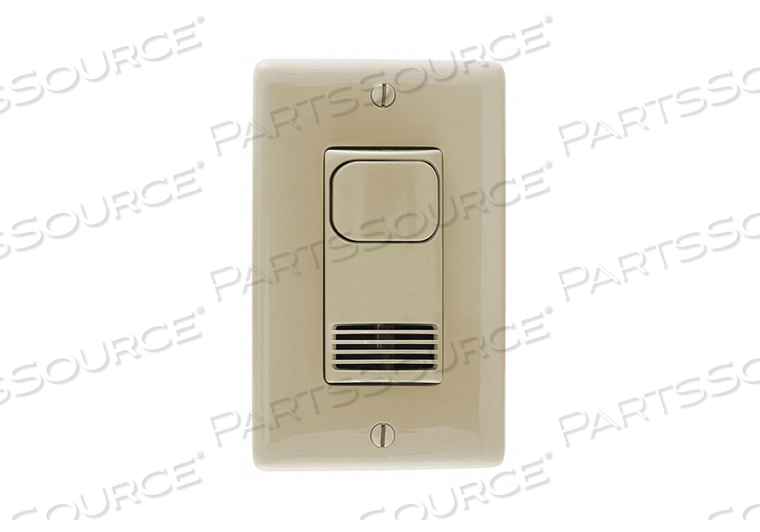

OCC/VAC SENSOR DT 1000SQ.FT. IVRY
OCC/VAC SENSOR DT 1000SQ.FT. IVRY
Technical Specs
P/N: AD2000I1N Key Specs
Item
OCC/VAC SENSOR DT 1000SQ.FT. IVRY
OEM
Hubbell Incorporated, Wiring Device-Kellums
OEM #
AD2000I1N
Returnable
No
Warranty
Color - Motion Sensing and Dimming
Ivory
Communication Method - Motion Sensing and Dimming
Hard Wired
Coverage Angle - Motion Sensor
180 Degrees
Coverage at Suggested Mounting Height
1000 sq. ft.
Description/Special Features
(1) Relay, No Button
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Installation Location - Motion Sensor
Wall Switch Box
Item - Motion Sensing and Dimming
Motion Sensor
Lighting Technology
Fluorescent, Incandescent, LED
Max. Capacity @ 120VAC
800W (Incandescent), 1000W (Fluorescent), 1/4 HP Motor
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Operating Voltage - Motion Sensing and Dimming
120VAC, 277VAC
Sensing Technology
Passive Infrared, Ultrasonic
Suggested Mounting Height - Motion Sensor
3 ft. 6 in to 4 ft. 6 in
Time Delay - Motion Sensor
4 to 30 min.
Time Delay Adjustment Method - Motion Sensor
Adaptive, Digital
