OEM#: 20001New OEM Original Outright
RESCUE AND DESCENT SYSTEM 310 LB. STEEL by Guardian Fall Protection
Your price:
$3,477.68 eachEstimated to ship by 04/19 if ordered before 4:30 PM EST
OEM#: 20001RESCUE AND DESCENT SYSTEM 310 LB. STEEL by Guardian Fall Protection
New OEM Original Outright
Your price:
$3,477.68 each
Estimated to ship by 04/19 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Product Overview

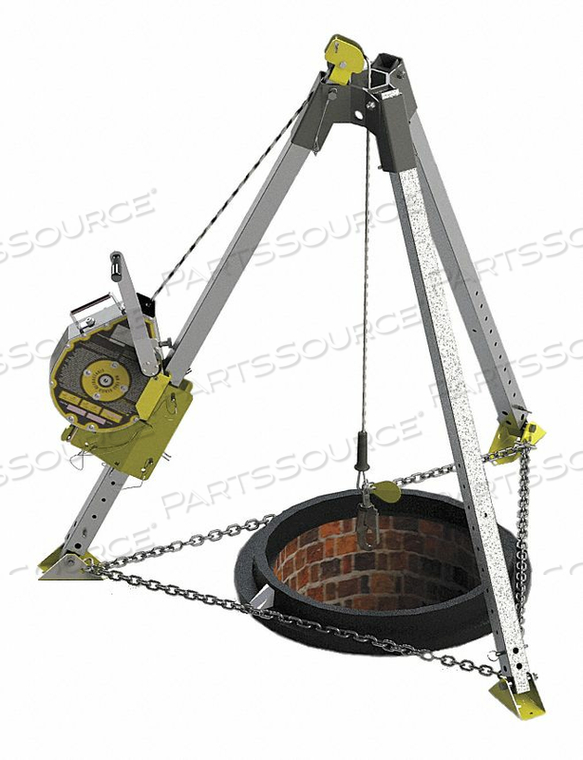

The Guardian Fall Protection Arc-O-Pod is an affordable, high quality Rescue and Retrieval system. The Arc-O-Pod is a 90-inches aluminum tripod that is lightweight, portable, and easily set up by just one worker. It also includes a storage bag for easy transportation between jobsites. Its adjustable, locking legs can be sized in 2 inch increments to best fit the layout of a given work area, and are kept in position with locking push pins. The tripod can be sized to fit a maximum 51/2 foot diameter hole, and is specially designed to eliminate all risk of slippage or movement when in use. Its heat-treated cast aluminum head incorporates a built-in pulley system to facilitate the proper use of mechanical lifeline equipment, and is also equipped with drop forged steel eyebolts for use as an anchorage point for a secondary or back-up system. The Arc-O-Pod also comes complete with a quick-mount bracket compatible with the Guardian 3-Way SRL. This system is certified to withstand a load of up to 5,000 pounds, and is compliant with all applicable ANSI Z359.1-2007, ANSI A10.14-2004, and OSHA regulations.
Features
- Manufacturer: Guardian Fall Protection
- Condition: New OEM Original
- Purchase Type: Outright
- Warranty: Mfr Warranty
- Returnable: No
Technical Specs
P/N: 20001 Key Specs
Item
RESCUE AND DESCENT SYSTEM 310 LB. STEEL
OEM
Guardian Fall Protection
OEM #
20001
Condition
New OEM Original
Returnable
No
Cable Diameter
3/16 in
Color
Yellow
Hardware Material
Steel
Harness Hook Gate Opening
1 in
Includes
Three-Way SRL and Bag, Tripod
Length
50 ft
Line Material
Galvanized Steel
Locking Anchorage Connection Hook Type
Screw Link
Locking Harness Connection Hook Type
Double Locking Snap Hook
Standards
ANSI Z359.1, OSHA 1926.502
Tensile Strength
5,000 lb
Weight Capacity
310 lb
The Guardian Fall Protection Arc-O-Pod is an affordable, high quality Rescue and Retrieval system. The Arc-O-Pod is a 90-inches aluminum tripod that is lightweight, portable, and easily set up by just one worker. It also includes a storage bag for easy transportation between jobsites. Its adjustable, locking legs can be sized in 2 inch increments to best fit the layout of a given work area, and are kept in position with locking push pins. The tripod can be sized to fit a maximum 51/2 foot diameter hole, and is specially designed to eliminate all risk of slippage or movement when in use. Its heat-treated cast aluminum head incorporates a built-in pulley system to facilitate the proper use of mechanical lifeline equipment, and is also equipped with drop forged steel eyebolts for use as an anchorage point for a secondary or back-up system. The Arc-O-Pod also comes complete with a quick-mount bracket compatible with the Guardian 3-Way SRL. This system is certified to withstand a load of up to 5,000 pounds, and is compliant with all applicable ANSI Z359.1-2007, ANSI A10.14-2004, and OSHA regulations.
