Replaces GE Healthcare GA200946

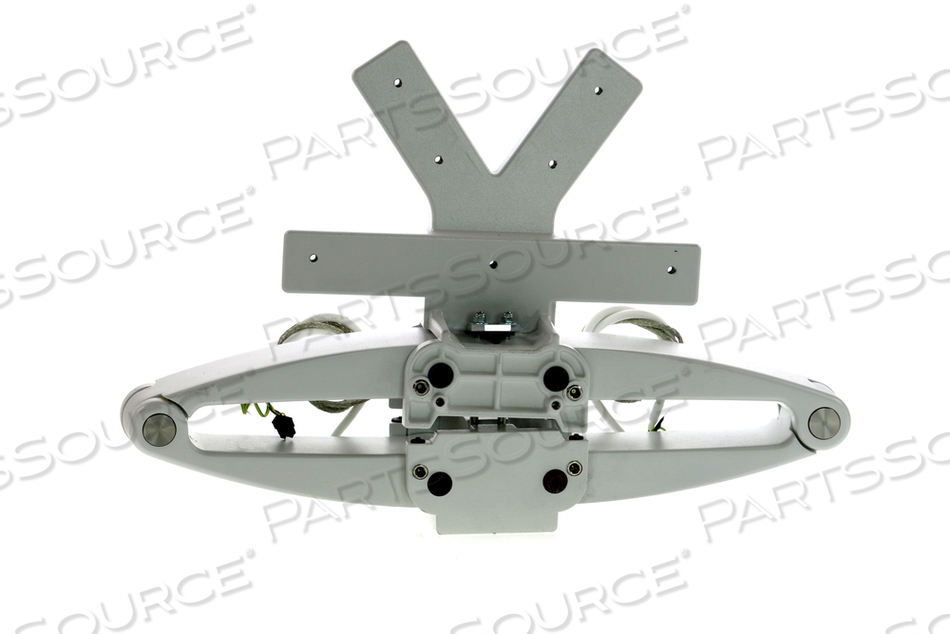

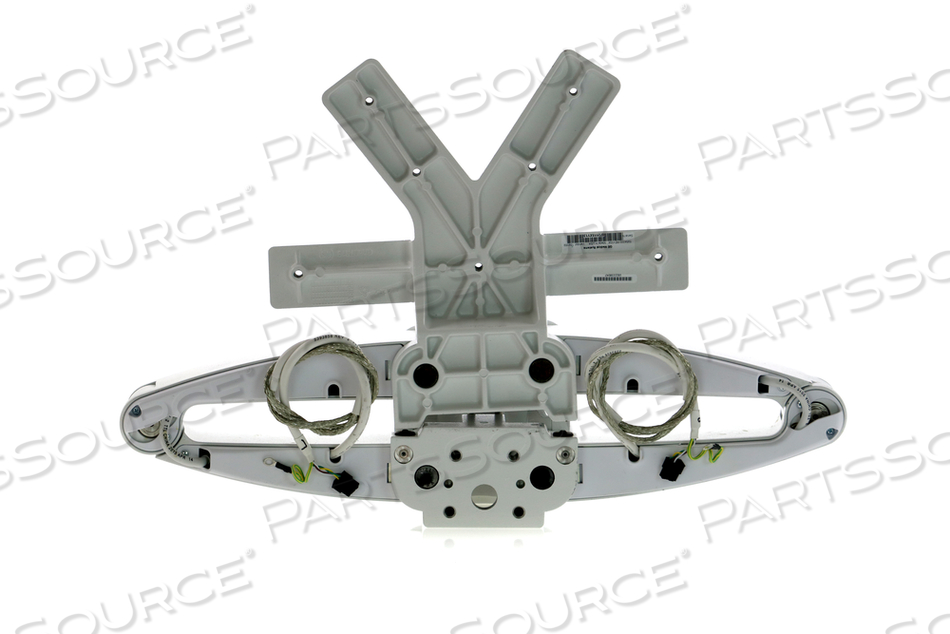

XY MECHANISM

The XY Mechanism Assembly is used for the movement of operator panel. The XY mechanism consist of two arms, brake mechanism, park lock, inner and outer bosses, axle joints, covers, bearings, retainers, fasteners and various other components. All the components in the assembly are manufactured using high precision techniques which helps to achieve a good surface finish as well as good product consistency. The high dimensional stability of the parts ensures their perfect fit as per the requirement. The high grade materials used for the components have good mechanical properties like tensile strength, impact and wear resistance which ensures a long-life span for the components. The high grade materials also help to make the components light in weight without compromising on the integral strength. All the parts in the assembly are free from burrs and sharp edges improving the safety aspect of the assembly. All the fasteners have high proof load capacity.
