KNOB KIT, MEETS ROHS

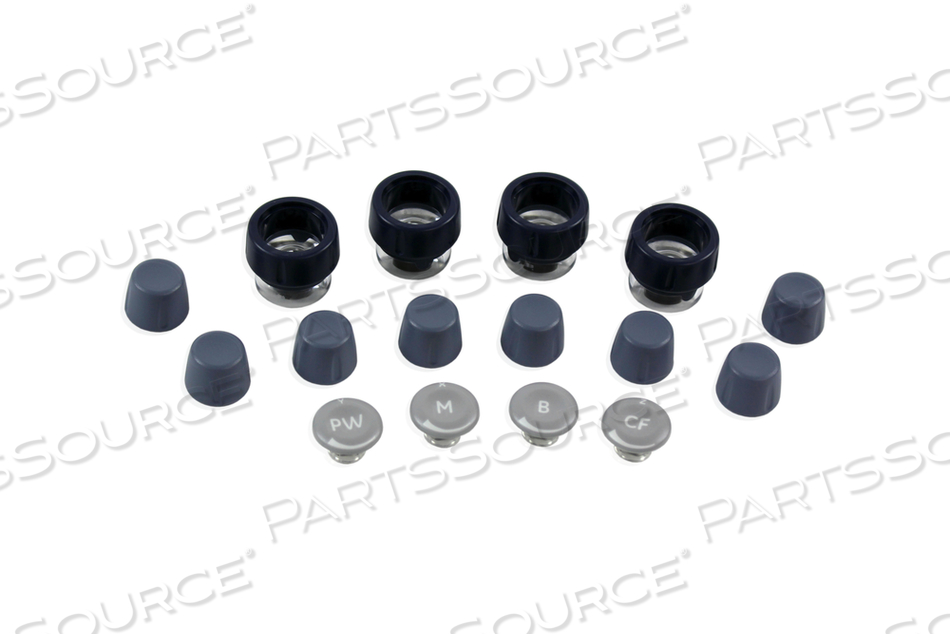

The knob kit for logiq e9 operator panel consists of 8 knobs for a joystick, 4 mode select knobs and 8 slide pots. In addition, spring clips are provided for all knobs. 2 knobs are for joysticks near the trackball. 5 joystick knobs are available below the touch panel and the other knob used to control width/depth or to steer/reverse is at the edge of the panel. Mode select knobs are used to change the mode/gain/xyz controls. There are 4 of them located around the trackball, a pulsed wave (pw) doppler knob, a b-mode for depth, gain and focus, an m-mode for sweep speed and a color flow (cf) mode for controlling sample volume length, map compress and packer size. Slide pots will be fixed to the operator panel which has a sliding motion to change various parameters and other setups. They are used to compensate for depth related attenuation in an image. This knob kit is used with logiq e9 ultrasound systems.

The knob kit for logiq e9 operator panel consists of 8 knobs for a joystick, 4 mode select knobs and 8 slide pots. In addition, spring clips are provided for all knobs. 2 knobs are for joysticks near the trackball. 5 joystick knobs are available below the touch panel and the other knob used to control width/depth or to steer/reverse is at the edge of the panel. Mode select knobs are used to change the mode/gain/xyz controls. There are 4 of them located around the trackball, a pulsed wave (pw) doppler knob, a b-mode for depth, gain and focus, an m-mode for sweep speed and a color flow (cf) mode for controlling sample volume length, map compress and packer size. Slide pots will be fixed to the operator panel which has a sliding motion to change various parameters and other setups. They are used to compensate for depth related attenuation in an image. This knob kit is used with logiq e9 ultrasound systems.
