Replaces GE Healthcare 5140713-2Tested Exchange

TUBE SUSPENSION LOGIC ASSM

Your price:
$2,590.28 each
$23,274.00 Savings: $20,683.72 (89%)
Ready to ship
HomeGE Healthcare51407132
BUYING OPTIONS:
Tested
Exchange ItemExchange Purchase
$2,590.28 each
Warranty: 6 Month
Tested
Outright Purchase
$5,180.57 each
Warranty: 6 Month
TUBE SUSPENSION LOGIC ASSM
TUBE SUSPENSION LOGIC ASSM
TUBE SUSPENSION LOGIC ASSM

Replaces GE Healthcare 5140713-2
TUBE SUSPENSION LOGIC ASSM

TestedExchange Item Exchange

Goods sold on an "Exchange" basis require that Buyer return a like, repairable item within 15 days (or the seller's specified time frame) in order to receive the price quoted. For full details, see Terms and Conditions.

Your price:
$2,590.28 each
With ELIGIBLE Exchange Core SHIPPED BACK
Ready to ship
Asset Information

Part #5140713-2

ADD TO LIST
Product Overview

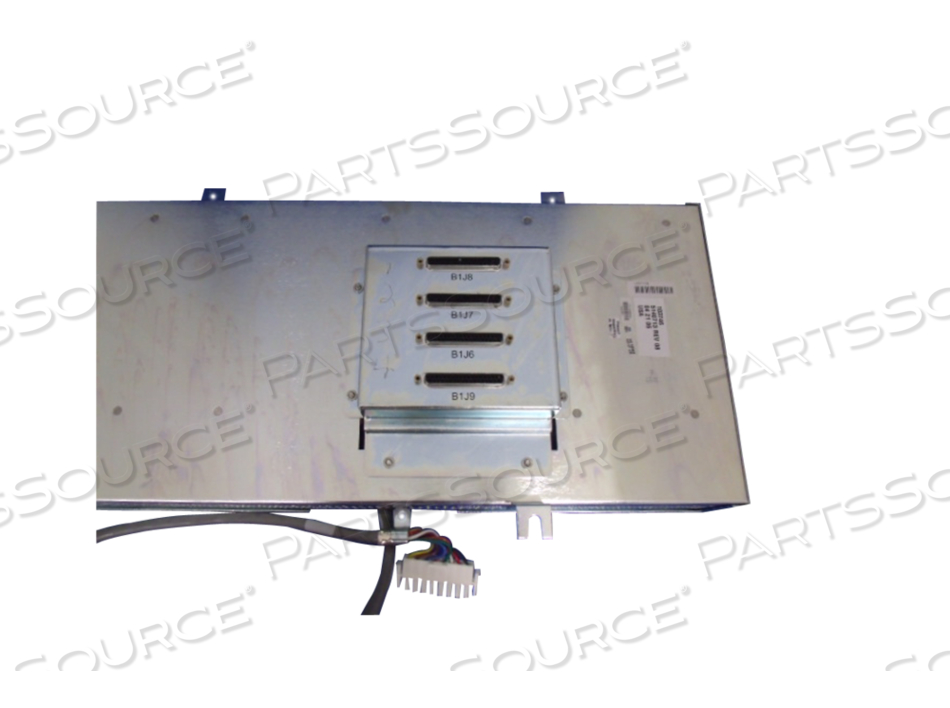

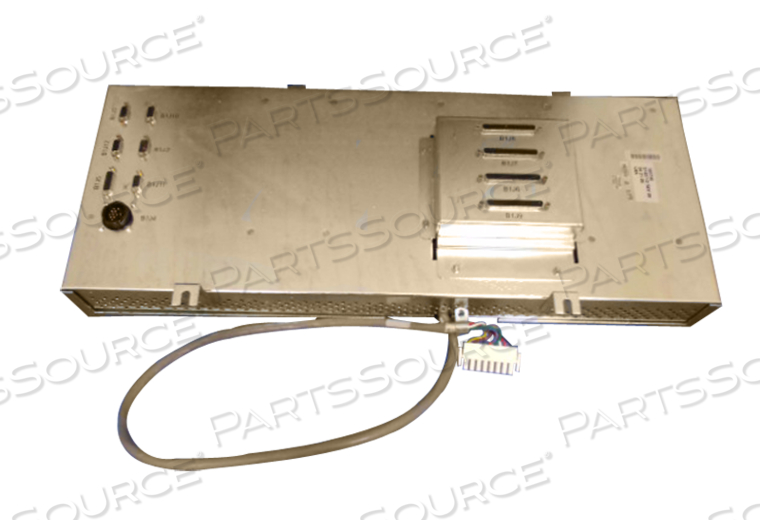

The Tube Suspension Logic (TSL) Assembly includes the TSL board and 4 servo amplifiers mounted on the board, enclosed in an EMC (Electromagnetic Compatibility) tight enclosure. The module also consists of harnesses to interconnect the board connectors to the connectors on the enclosure. This module is mounted on the upper carriage of the OTS (Overhead Tube Support) in the Thunder system. The main functions of this assembly are to provide 4-Axis Drive/Motor Interface for Vertical, Longitudinal, Lateral, and Column-Rotation, Tube-Angulation Drive Control, and Servo-Amplifier mounting and control. The assembly is powered with 38 VDC for motors, 24 VDC for logic, and 24 VDC lock power. This assembly has an on-board power supply section for converting the external power supply to required lower voltages.
Features
  • Protected by circuit brakers
  • High efficiency
  • Multiple output control
  • Field replaceable unit (FRU)
Technical Specs
P/N: 5140713-2 Key Specs
Item
TUBE SUSPENSION LOGIC ASSM
OEM
GE Healthcare
OEM #
5140713-2
Condition
Tested
Returnable
No
Warranty
6 Month
RoHS Compliant
Yes
Fitments
The Tube Suspension Logic (TSL) Assembly includes the TSL board and 4 servo amplifiers mounted on the board, enclosed in an EMC (Electromagnetic Compatibility) tight enclosure. The module also consists of harnesses to interconnect the board connectors to the connectors on the enclosure. This module is mounted on the upper carriage of the OTS (Overhead Tube Support) in the Thunder system. The main functions of this assembly are to provide 4-Axis Drive/Motor Interface for Vertical, Longitudinal, Lateral, and Column-Rotation, Tube-Angulation Drive Control, and Servo-Amplifier mounting and control. The assembly is powered with 38 VDC for motors, 24 VDC for logic, and 24 VDC lock power. This assembly has an on-board power supply section for converting the external power supply to required lower voltages.
    • GE Healthcare
      • OPTIMA XR640
      • DISCOVERY
      • DISCOVERY XR650
      • DISCOVERY XR656
