OEM#: 2173060New OEM Original Outright

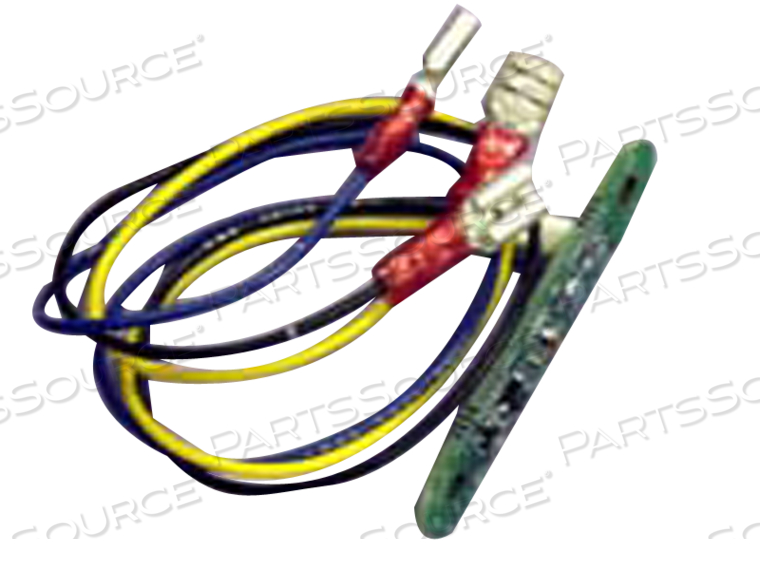

PARK LATCH SENSOR by GE Healthcare
Your price:
$110.56 each $123.00 Savings: $12.44 (10%)
Ship date will be provided after ordering
OEM#: 2173060PARK LATCH SENSOR by GE Healthcare
New OEM Original Outright
Your price:
$110.56 each
Asset Information
Drop Shipped From GE - Not For Export Out Of US
ADD TO LIST
Product Overview

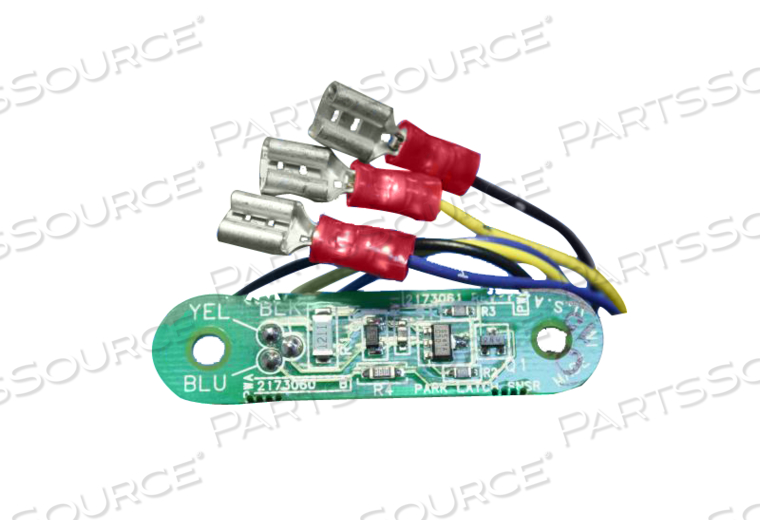

The Park Latch Sensor is used for indicating to the Central Processing Unit (CPU) of the X-ray machine that the X-ray tube arm is in the parked position. When a magnetic field of at least 160 gauss is presented to the surface of the Hall Effect sensor, the output of the sensor sinks the electric current and the output of the board gets activated. The park latch sensor is an assembly that consists of resistors, PNP transistors, semi-conductor diodes, Hall Effect switch, Park sensor, lead wires and other accessories with labels. There are three lead wires connected to the board, one for input supply, one for the grounding and the other for the output. The sensor will be tested with the disk shaped magnet attached to plastic spacer and the magnet can be touched against the sensor with the plastic in between. The voltage across the pull down resistor should be more than 20 VDC when the magnetic field is kept. The sensor is used in the Digital Imaging (DI) machines like AMX 4+, Optima CT660 128-Slice, LOGIQ 500, LightSpeed 5.X Pro 16-Slice, VMX PLUS, Brightspeed 16-Slice, Definium AMX 700, Discovery XR656 G2, Senographe 500T/600T, OEC Stenoscope, Silhouette VR, TelevixMVP, Prodigy Advance Plus Full Size and Infinia II.
Additional Features:
Features
- Manufacturer: GE Healthcare
- Condition: New OEM Original
- Purchase Type: Outright
- Warranty: 90 Day
- Returnable: No
- It reduces the manual effort for adjustments
- It is very small in size
- Reliable
- Shielded housings of the lead prevents accidental disconnects
Fitments
- GE Healthcare
- AMX 4
- AMX 4 PLUS
Technical Specs
P/N: 2173060 Key Specs
Item
PARK LATCH SENSOR
OEM
GE Healthcare
OEM #
2173060
Condition
New OEM Original
Returnable
No
The Park Latch Sensor is used for indicating to the Central Processing Unit (CPU) of the X-ray machine that the X-ray tube arm is in the parked position. When a magnetic field of at least 160 gauss is presented to the surface of the Hall Effect sensor, the output of the sensor sinks the electric current and the output of the board gets activated. The park latch sensor is an assembly that consists of resistors, PNP transistors, semi-conductor diodes, Hall Effect switch, Park sensor, lead wires and other accessories with labels. There are three lead wires connected to the board, one for input supply, one for the grounding and the other for the output. The sensor will be tested with the disk shaped magnet attached to plastic spacer and the magnet can be touched against the sensor with the plastic in between. The voltage across the pull down resistor should be more than 20 VDC when the magnetic field is kept. The sensor is used in the Digital Imaging (DI) machines like AMX 4+, Optima CT660 128-Slice, LOGIQ 500, LightSpeed 5.X Pro 16-Slice, VMX PLUS, Brightspeed 16-Slice, Definium AMX 700, Discovery XR656 G2, Senographe 500T/600T, OEC Stenoscope, Silhouette VR, TelevixMVP, Prodigy Advance Plus Full Size and Infinia II.
