OEM#: 5577713New OEM Original Outright

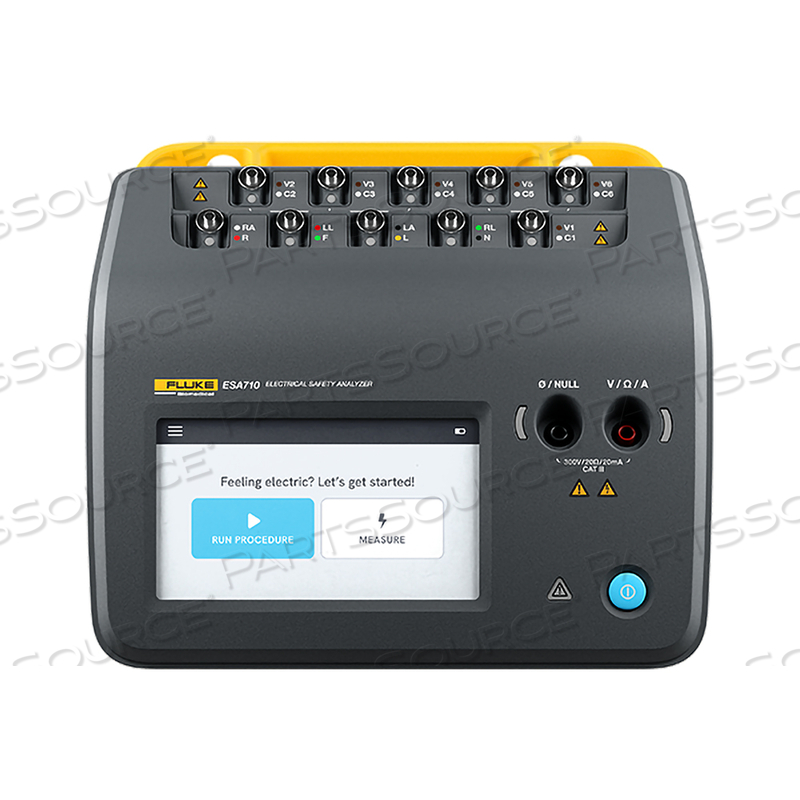

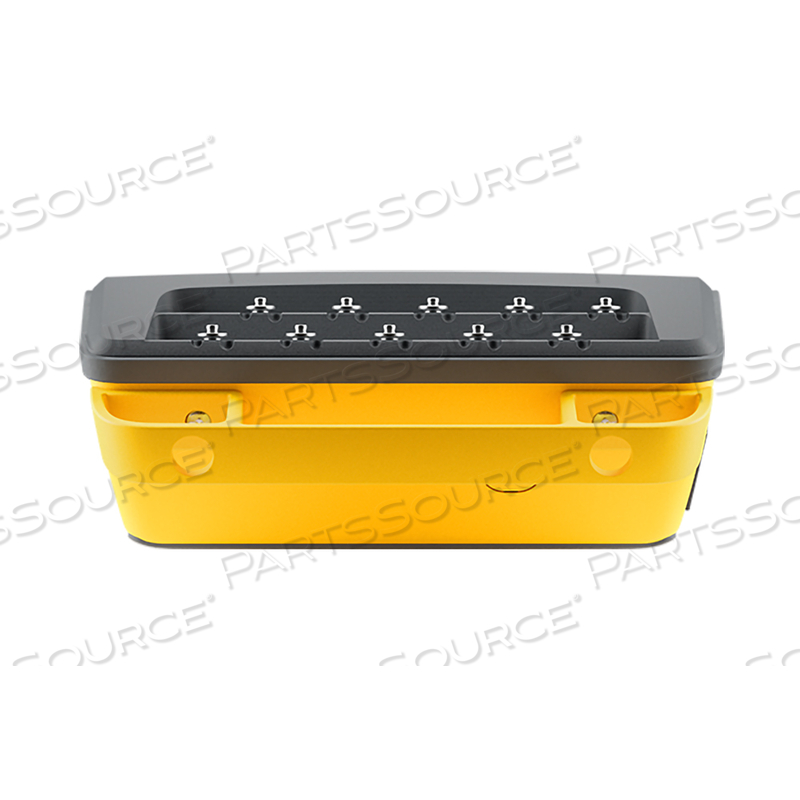

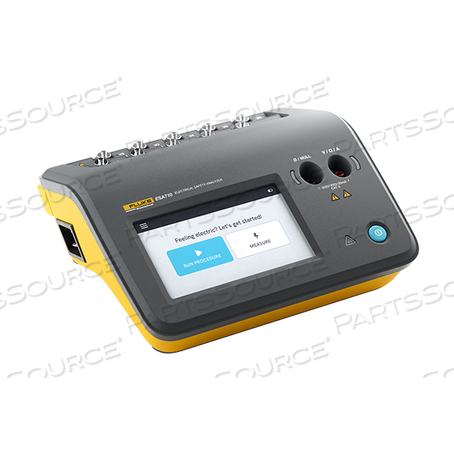

90 TO 132VAC 20A 47 TO 63HZ 5IN DISPLAY ELECTRICAL SAFETY ANALYZER by Fluke Electronics Corp (Biomedical Div.)
Your price:
$2,962.79 each
View All
OEM#: 557771390 TO 132VAC 20A 47 TO 63HZ 5IN DISPLAY ELECTRICAL SAFETY ANALYZER by Fluke Electronics Corp (Biomedical Div.)
New OEM Original Outright
Your price:
$2,962.79 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Our easiest-to-use electrical safetyanalyzer, ever.
Redefining automated testing in a compact format, the ESA710 Electrical Safety Analyzer is an essential tool for healthcare technology management professionals looking for portability without compromising functionality. This highfunctioning device enables users to perform from basic troubleshooting to comprehensive analysis, ensuring electrical safety testing on medical equipment complies with key electrical safety standards, such as ANSI/AAMI ES1 and NFPA 99, whether on-field or within facilities.
Integrated OneQA workflow automation software allows you to:Improve productivity, efficiency and accuracy by automating the execution and analysis of tests Standardize testing procedures across all technicians – have everybody work like your senior technicians Ditch the laptop – execute OneQA right from the ESA710, keeping you mobile Reduce confusion around related to connections and testing with onboard guidance instructions Reduce onboarding time standardized test procedures and an intuitive user-friendly interface Build, organize and share reports and data on a centralized platform Achieve compliance with regulatory agencies with improved traceability Collaborate real-time with your team on procedures, data analysis and reporting Lower the cost of and improvement to Quality Assurance programs
Redefining automated testing in a compact format, the ESA710 Electrical Safety Analyzer is an essential tool for healthcare technology management professionals looking for portability without compromising functionality. This highfunctioning device enables users to perform from basic troubleshooting to comprehensive analysis, ensuring electrical safety testing on medical equipment complies with key electrical safety standards, such as ANSI/AAMI ES1 and NFPA 99, whether on-field or within facilities.
Integrated OneQA workflow automation software allows you to:
Features
- 5" Color touchscreen with intuitive user interface & on screen instructions
- Easy data entry through barcode scanner, external keyboard or on-screen keyboard
- 20 A at 120 V equipment current capability
- Replaceable mains fuses keep your unit in the field and out of the repair shop
- Rigorously tested for rugged field applications with CE and CSA in addition to Fluke-quality ruggedness for longterm reliability
- Enjoy precision, compliance, and total peace of mind through our comprehensive service and coverage program, eliminating unexpected costs with our Protect+ Program
- Global support network delivering prompt service and peace of mind to Fluke Biomedical customers worldwide
- Small/Portable
- Easy to Use
- Aux. battery
- Colored LED light for connection guidance
- Small, portable, ergonomic design with an integrated handle
- OneQA-enabled workflow automation eliminates need for laptop
- Wireless capability allows you to run test procedures in the field and automatically sync results the field and automatically sync results
- Ten applied parts posts with innovative LED lighting guidance (ECG & Banana)
- Insulation resistance from 50V, 100V, 250V and 500V
- On-board automation with automated test sequences guidance (ECG & Banana) AAMI ES1, NFPA 99)
- ECG waveform tests and dual-lead measurements combine the functionality of a simulator and safety analyzer in a single test tool
- Ability to upload pictures, instructions, and text to procedures
Technical Specs
P/N: 5577713 Key Specs
Item
90 TO 132VAC 20A 47 TO 63HZ 5IN DISPLAY ELECTRICAL SAFETY ANALYZER
OEM
Fluke Electronics Corp (Biomedical Div.)
OEM #
5577713
Condition
New OEM Original
Returnable
No
Warranty
12 Month
Accuracy
±(5 % + 0.05 A)
Accuracy (Leakage Current)
dc & 20 Hz - 0.5 kHz: ±(1 % + 1 μA), 0.5 kHz - 50 kHz: ±(2.5 % + 1 μA), 50 kHz - 1 MHz: ±(5 % + 1 μA)
Accuracy (Mains voltage)
±(2 % + 0.2 V)
Accuracy (Point to point voltage)
±(2 % + 0.2 V)
Accuracy (Protective earth resistance)
±(1 % + 0.01 Ω) at ≤ 2 Ω, ±(1 % + 0.1 Ω) at >2 Ω
Additional uncertainty
Up to ±2 μA for 120 V, up to ±4 μA for 230 V
Altitude
100-127 V ac mains voltage and ≤5 150 V on input jacks: ≤ 5000 m, 200-240 V ac mains voltage and ≤5 300 V on input jacks: ≤ 2000 m
Amplitude accuracy
±5 %, for 2 Hz square wave
Battery life
Up to 2 h
Connectivity
1 x USB-C for PC communication, 2 x USB-A for peripherals
Country of Origin
USA
Crest factor
≤2
Current limit
1 mA ± 25 % at 115 V for AAMI ES1, NFPA 99
Data storage
> 10 000 measurements
Dimensions (w x d x h)
214 x 207 x 92 mm (8.4 x 8.1 x 3.6 inches)
Display
5-inch touchscreen
Frequency accuracy
±2 %
Impedance baseline
1000 Ω ± 5 % between leads
Impedance variation
1 ± 0.15 Ω
Ingress protection
IP40 per IEC 60529, excluding equipment outlet
Inspiration : expiration ratio
1:1
Max duty cycle
0-10 A: continuous, 0-15 A: 5 min on/5 min off, 15-20 A: 3 min on/7 min off
Maximum load capacitance
2 μF
Modes
ac + dc (true rms), ac only, dc only, Mains on applied part leakage test: ac only
Open circuit voltage (Protective earth resistance)
Max ±24 V
Operating humidity
10-90 %, non-condensing
Operating temperature
0 to +35 °C (+50 to +95 °F)
Patient load
AAMI ES1: 1993
Power
90-132 V ac, 20 A MAX, 47-63 Hz
Range
0-20 A ac rms, limited by power specification
Range (Leakage Current)
0 μA - 20 mA
Range (Mains voltage)
0-264 V ac rms, limited by power specification
Range (Point to point voltage)
0-300 V ac rms, limited by altitude specification
Range (Protective earth resistance)
0-20 Ω
Rate
Apnea (0 BrPM) and 10-100 BrPM in 10 BrPM steps
Respiration lead
LL or LA, user selectable
Short-circuit current
2 mA ± 0.25 mA
Storage humidity
5-95 %, non-condensing
Storage temperature
-20 to +60 °C (-4 to+ 140 °F)
Test current (Protective earth resistance)
±(1 % + 0.1 Ω) at >2 Ω
Test voltage
Mains voltage ±5 %
Waveforms
Normal
Weight
1.3 kg (2.7 pounds)
