OEM#: 4375516

ELECTRICAL SAFETY ANALYZER by Fluke Electronics Corp (Biomedical Div.)

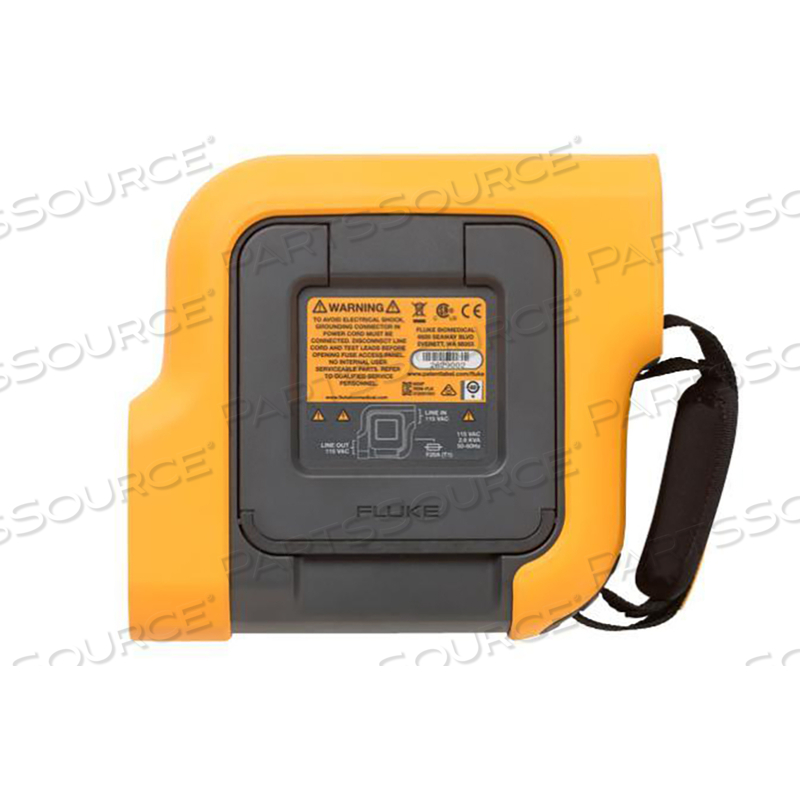

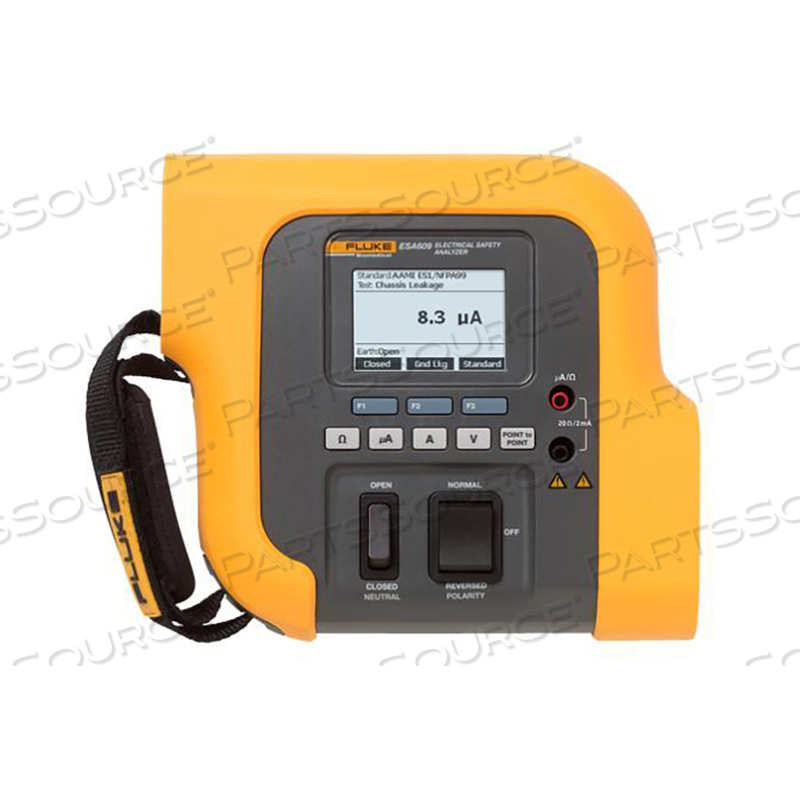

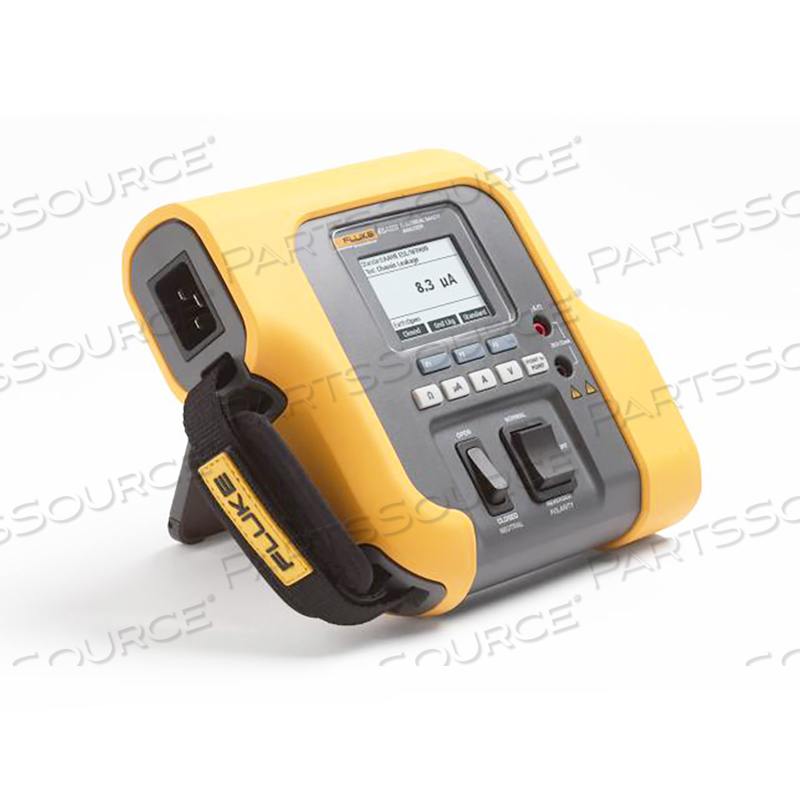

The ESA609-US Electrical Safety Analyzer is a rugged, portable and easy-to-use analyzer designed for general electrical safety testing. Engineered for on-the-go technicians, the ESA609 requires no prior training, has a rubberized case that allows it to sustain the rigor of transportation, and helps prevent damage when accidentally dropped.

The ESA609 Electrical Safety Analyzer is a rugged, portable and easy-to-use analyzer designed for general electrical safety testing:

Its functional strap and featherweight design make it one of the most portable electrical safety analyzers in its class. Heavy-duty switches allow you to effortlessly change polarity and configuration of the neutral connection between open and closed, while push-button operation ensures fast transition between tests for complete basic testing in minutes. The ESA609 integrates all functions needed to test medical devices when patient lead testing is not required, including: line (mains) voltage, ground wire (protective earth) resistance, equipment current, leakage current and point-to point tests. Versatile to global electrical safety standards of choice, the ESA609 tests to ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1.

• IEC Standards compliance: ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1
• Portable: Featherweight design, functional strap, and tilt stand make it easy for transportation and operation on-the-go (onsite or offsite)
• User-friendly: Quick push-button operation for rapid testing
• Rugged: Rubberized case and Ingress Protection rating of IP30 help prevent damage when dropped
• Global use: the ESA609 will operate at 120V and 230V
• Test current consumption up to 20A for a diverse set of medical devices
• All parameters needed for basic electrical safety testing: Line (Mains) voltage, Ground Wire (or Protective Earth) Resistance, Equipment current, Ground Wire (Earth) leakage, Chassis (Enclosure) leakage, Direct equipment leakage, and Point to point leakage and resistance
• Rigorously tested for safety and reliability, with CE, CSA and Australia RCM in addition to Fluke quality

Earth Resistance:

• Modes: Two-Wire
• Test current: > 200 mA ac
• Range: 0.000 O to 20.000 O
• Accuracy: ± (1 % of reading + 0.010 O)
• Resistance tests: Earth resistance and point to point

Equipment Current:

• Mode AC rms
• Range 0.0 A to 20.0 A
• Accuracy ± (5 % of reading + (2 counts or 0.2 A, whichever is greater))
• Duty cycle 15 A to 20 A, 5 min. on/5 min. off, 10 A to 15 A, 7 min. on/3 min. off, 0 A to 10 A continuous

Leakage Current:

• Modes: True-rms
• Patient load selection: AAMI ES1-1993 Fig.1
• IEC 60601: Fig 15
• Crest Factor: Less than or equal to 3
• Ranges: 0.0 µA to 199.9 µA
• DC to 1 kHz: ± (1 % of reading + 1 µA )
• 1 kHz to 100 kHz: ± (2.5 % of reading + 1 µA)
• 100 kHz to 1 MHz: ± (5 % of reading + 1 µA)
• Leakage Tests: Ground wire (earth), Chassis (enclosure), Direct equipment, Point to point

Power Ratings:

• 115 volt power outlet: 90 V to 132 V ac rms, 47 Hz to 63 Hz, 20 A maximum
• 230 volt power outlet: 180 V to 264 V ac rms, 47 Hz to 63 Hz, 16 A maximum
• Power input: 115 V 20 A to 2.6 kVA and 230 V at 16 A to 4.2 kVA

Physical Case:

• Safety: IEC 61010-1:Overvoltage Category II, Measurement 300V CAT II, Pollution Degree 2
• Electromagnetic Environment: IEC 61326-1:Portable
• Emissions Classification: IEC CISPR 11:Group 1, Class A

• Manufacturer: Fluke Electronics Corp (Biomedical Div.)
• Condition: New OEM Original
• Purchase Type: Outright
• Warranty: 12 Month
• Returnable: No

• Fluke Electronics Corp (Biomedical Div.)
  • ESA609
  • ESA609-US
