OEM#: UB600New OEM Original Outright

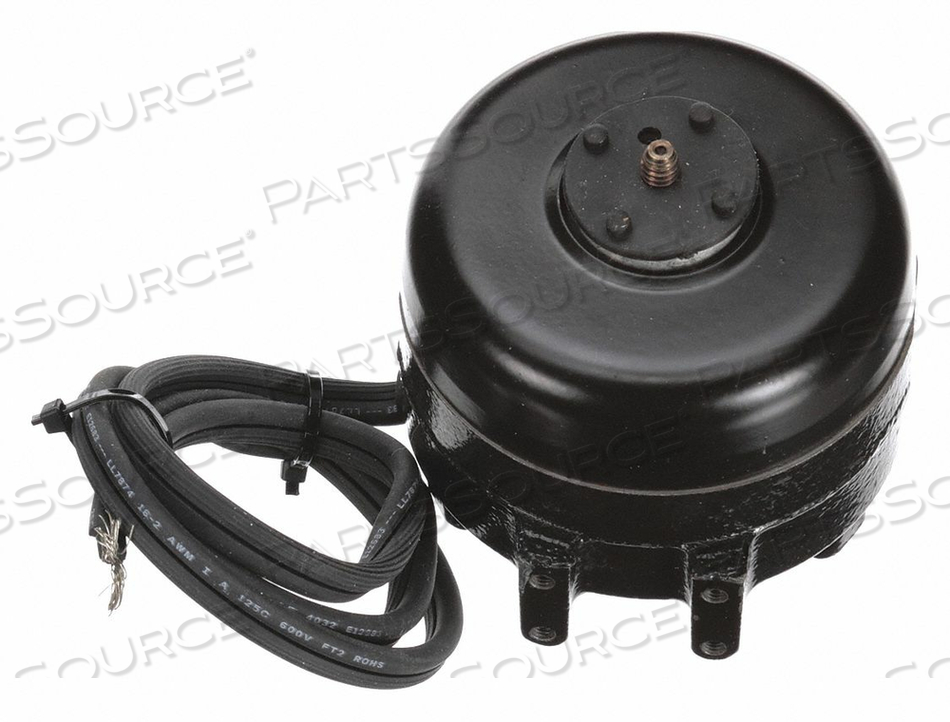

UNIT BEARING MOTOR 1/100HP 0.27 CCW 230V by Fasco
Your price:
$60.94 each
OEM#: UB600UNIT BEARING MOTOR 1/100HP 0.27 CCW 230V by Fasco
New OEM Original Outright
Your price:
$60.94 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: UB600 Key Specs
Item
UNIT BEARING MOTOR 1/100HP 0.27 CCW 230V
OEM
Fasco
OEM #
UB600
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
3-11/32 in
Bolt Circle Diameter
2-13/16 in
Frame
Non-Standard
Full Load Amps
0.27
HP
1/100
Hz
60/50
Includes
Speed Nut and Screw
Ins. Class
B
Length Less Shaft
2-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Unit
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Rear/Double Foot
Motor Service Factor
1
Motor Shaft Design
Threaded
Motor Shaft Rotation
CCWLE
Motor Sub Application
Refrigerator/Freezer
Motor Thermal Protection
Impedance
Mounting Stud Length
3/8 in
Nameplate RPM
1550
Output Watts
9
Overall Length
3-11/32 in
Phase
1
Shaft Diameter
1/4 in
Shaft Length
3-11/32 in
Standards
UL and CSA
Voltage
230
