OEM#: UB596New OEM Original Outright

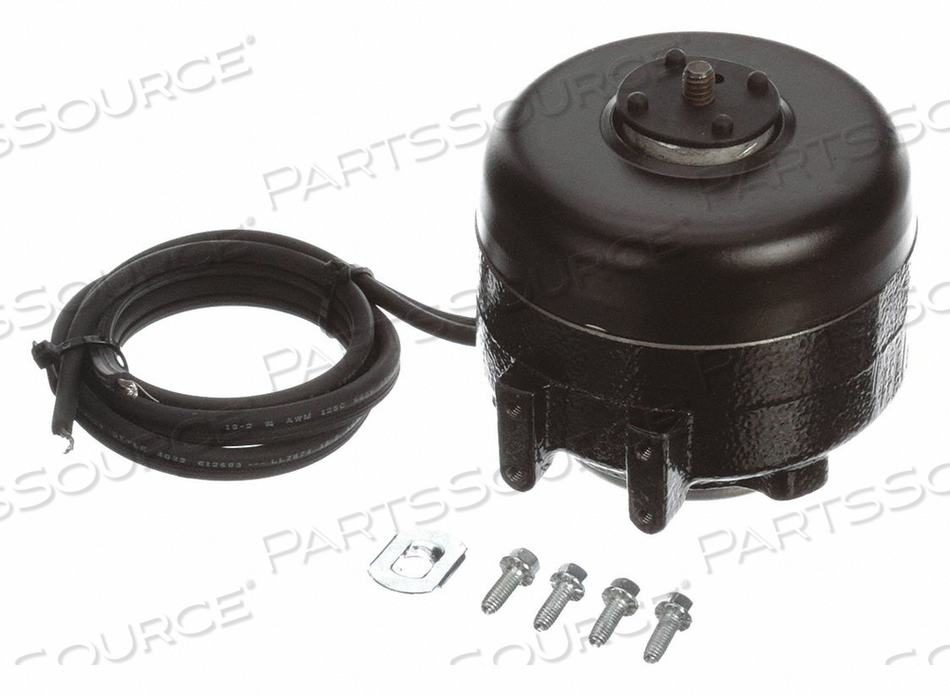

UNIT BEARING MOTOR 1/125 HP 230V CWLE by Fasco
Your price:
$81.16 each
OEM#: UB596UNIT BEARING MOTOR 1/125 HP 230V CWLE by Fasco
New OEM Original Outright
Your price:
$81.16 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: UB596 Key Specs
Item
UNIT BEARING MOTOR 1/125 HP 230V CWLE
OEM
Fasco
OEM #
UB596
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
3-7/16 in
Bolt Circle Diameter
2-13/16 in
Country of Origin
China
Frame
Non-Standard
Full Load Amps
0.18
HP
1/125
Hz
60/50
Length Less Shaft
3-1/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Unit
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Rear/Foot
Motor Service Factor
1
Motor Shaft Design
Threaded
Motor Shaft Rotation
CWLE
Motor Sub Application
Condenser Fans
Motor Thermal Protection
Impedance
Nameplate RPM
1550
Output Watts
6 W
Overall Length
3-1/2 in
Phase
1
Shaft Diameter
1/4 in
Shaft Length
3/8 in
Standards
UL (E81653), CURUS (E81653)
Voltage
230
Voltage Compatibility
115/230, 120/240, 230, 240
