OEM#: D219New OEM Original Outright

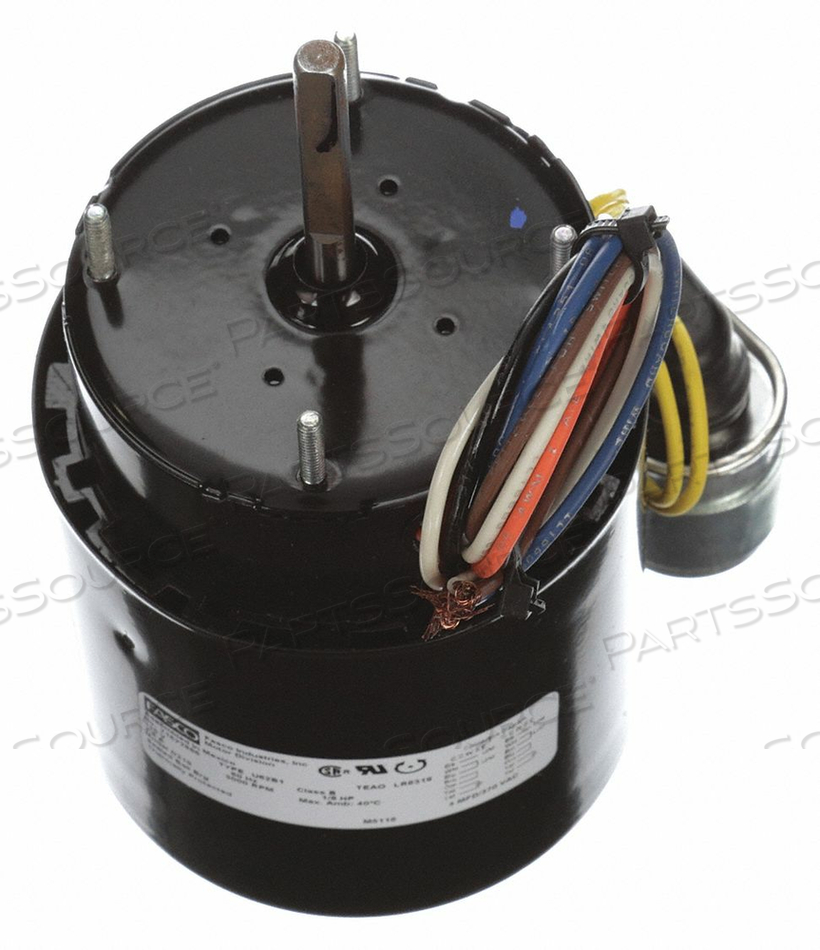

HVAC MOTOR 1/8 HP 3000 RPM 115V 3.3 by Fasco
Your price:
$342.86 each
OEM#: D219HVAC MOTOR 1/8 HP 3000 RPM 115V 3.3 by Fasco
New OEM Original Outright
Your price:
$342.86 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D219 Key Specs
Item
HVAC MOTOR 1/8 HP 3000 RPM 115V 3.3
OEM
Fasco
OEM #
D219
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
HVAC/R
Body Diameter
3.3 in
Capacitor Required
Yes
Duty
Continuous
Frame
3.3
Full Load Amps
1.8
HP
1/8 hp
Hz
60
Includes
4MFD/370 V AC Capacitor
Ins. Class
B
Length Less Shaft
5-1/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Pattern
2-7/8 x 2-7/8
Mounting Stud Location
4/Shaft End
Nameplate RPM
3000
Number of Shafts
1
Number of Speeds
1
Phase
1
Shaft Diameter
5/16 in
Shaft Length
2-1/4 in
Standards
CSA Certified (LR6319), UL Recognized (E40513)
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Voltage
115
