OEM#: D454New OEM Original Outright

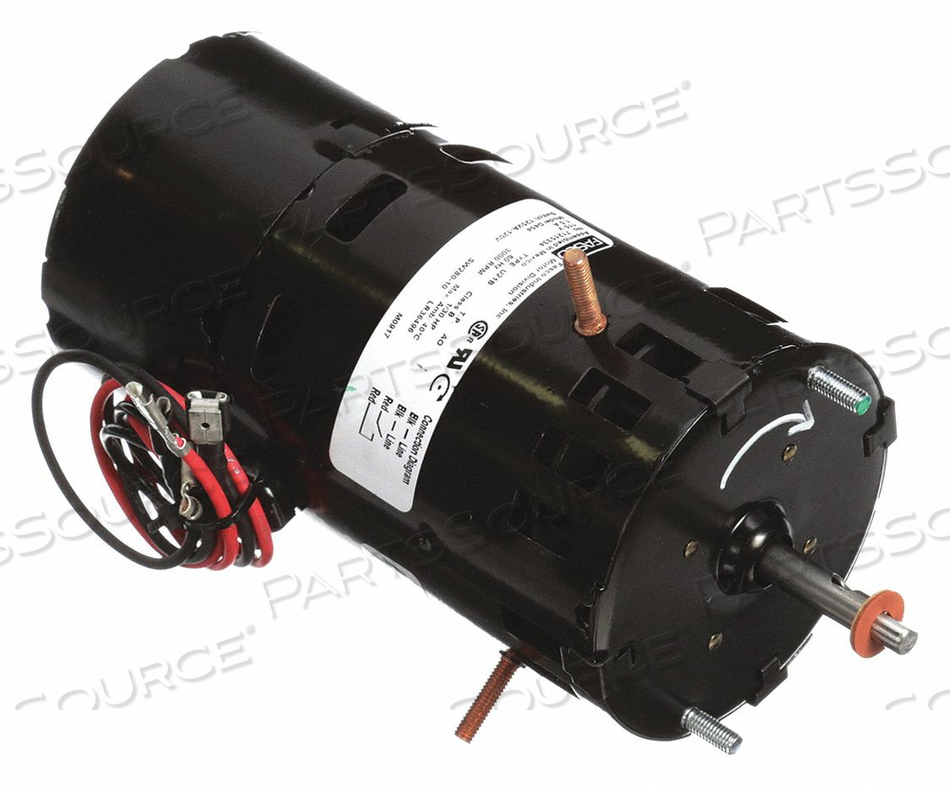

CONDENSER FAN MOTOR 1/30HP 115V 3000 RPM by Fasco
Your price:
$188.41 each
OEM#: D454CONDENSER FAN MOTOR 1/30HP 115V 3000 RPM by Fasco
New OEM Original Outright
Your price:
$188.41 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D454 Key Specs
Item
CONDENSER FAN MOTOR 1/30HP 115V 3000 RPM
OEM
Fasco
OEM #
D454
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Fans and Blowers
Body Diameter
3-19/64 in
Bolt Circle Diameter
2-13/16 in
Capacitor Required
No
Frame
Non-Standard
Full Load Amps
1.5
HP
1/30
Hz
60
Ins. Class
B
Length Less Shaft
6-5/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
OEM Replacement
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Mounting Stud Pattern
2 x 2 in
Nameplate RPM
3000
Number of Shafts
1
Number of Speeds
1
OEM Replacement Brand
Mid Continent
Overall Length
7-13/16 in
Phase
1
Replacement For
JA1M069NV
Shaft Diameter
1/4 in
Shaft Length
1-1/2 in
Stud Size
10-32 X 1/2 in
Voltage
115
