OEM#: D190New OEM Original Outright

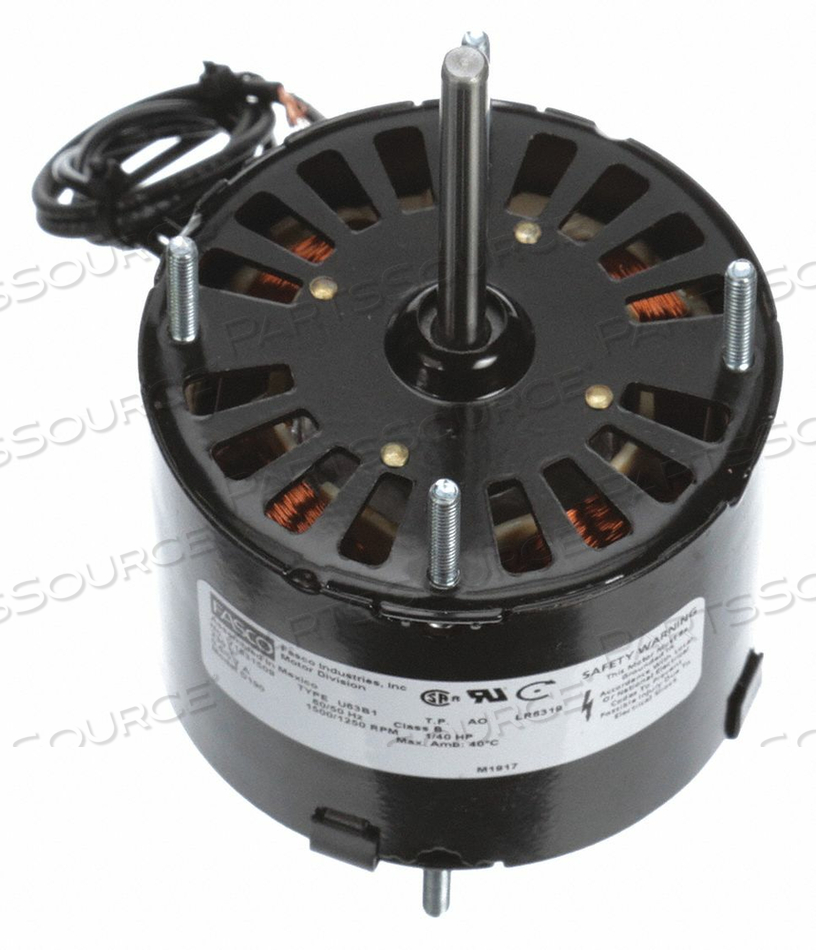

HVAC 3.3 IN MOTOR 1/40 HP 230V CW by Fasco
Your price:
$194.42 each
OEM#: D190HVAC 3.3 IN MOTOR 1/40 HP 230V CW by Fasco
New OEM Original Outright
Your price:
$194.42 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D190 Key Specs
Item
HVAC 3.3 IN MOTOR 1/40 HP 230V CW
OEM
Fasco
OEM #
D190
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
HVAC/R
Body Diameter
3.3 in
Country of Origin
Mexico
Duty
Continuous
Frame
3.3
Full Load Amps
0.6
HP
1/40 hp
Hz
60/50
Ins. Class
B
Length Less Shaft
2-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Pattern
2-7/8 x 2-7/8
Mounting Stud Location
4/Both Ends
Nameplate RPM
1500/1250
Number of Shafts
1
Number of Speeds
1
Phase
1
Shaft Diameter
1/4 in
Shaft Length
2-1/4 in
Standards
CSA Certified (LR6319), UL Recognized (E40513)
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Voltage
230
