OEM#: D136New OEM Original Outright

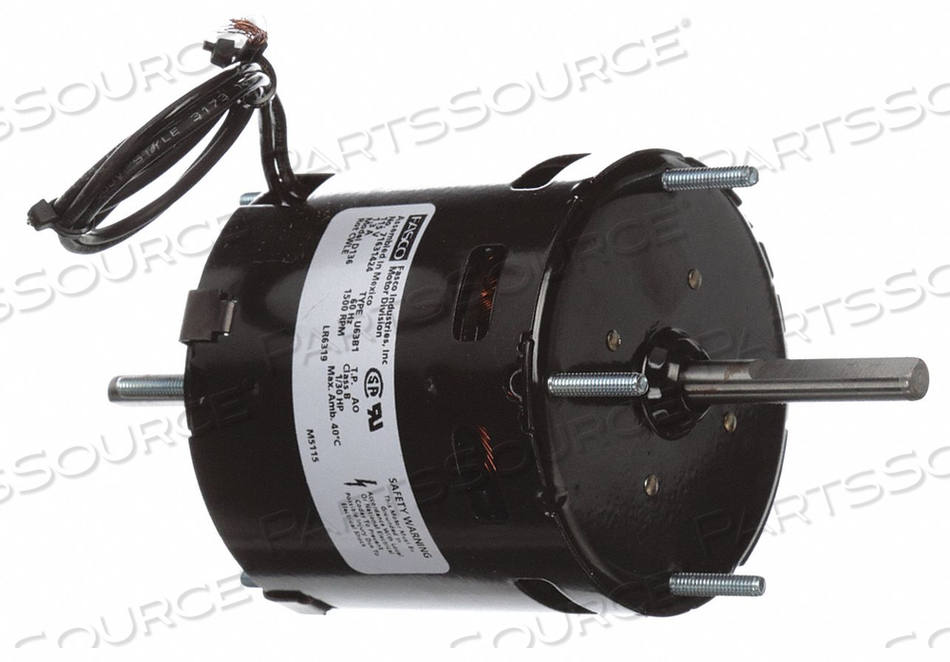

HVAC MOTOR 1/30 HP 1500 RPM 115V 3.3 by Fasco

Your price:
$195.66 eachReady to ship
HomeFascoD136
HVAC MOTOR 1/30 HP 1500 RPM 115V 3.3 by Fasco
HVAC MOTOR 1/30 HP 1500 RPM 115V 3.3 by Fasco

OEM#: D136
HVAC MOTOR 1/30 HP 1500 RPM 115V 3.3 by Fasco

New OEM Original Outright
Your price:
$195.66 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D136 Key Specs
Item
HVAC MOTOR 1/30 HP 1500 RPM 115V 3.3
OEM
Fasco
OEM #
D136
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
HVAC/R
Body Diameter
3.3 in
Duty
Continuous
Frame
3.3
Full Load Amps
1.3
HP
1/30 hp
Hz
60
Ins. Class
B
Length Less Shaft
3-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWLE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Pattern
2-7/8 x 2-7/8
Mounting Stud Location
4/Both Ends
Nameplate RPM
1500
Number of Shafts
2
Number of Speeds
1
Phase
1
Shaft Diameter
5/16 in
Shaft Length
2 in
Standards
CSA Certified (LR36496), UL Recognized (E40513)
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Voltage
115
