Replaces Extron Electronics 60-1328-13 AND 60-1328-12

3 H X 7.5 W X 10.5IN D DUAL LINK DVI FIBER OPTIC TRANSMITTER AND RECEIVER

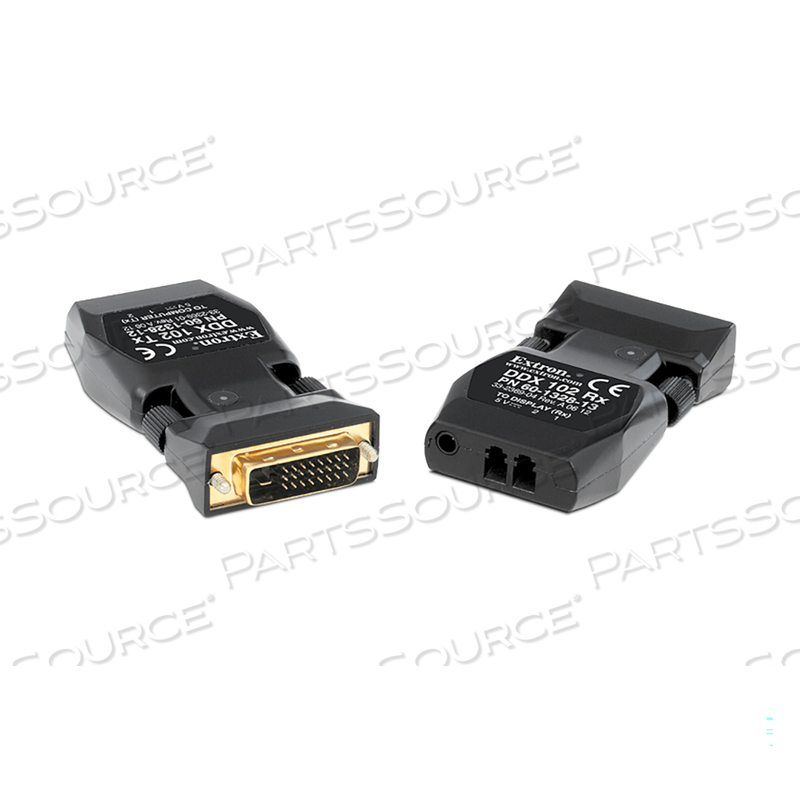

The Extron DDX 102 Fiber Optic Extender is an extremely compact transmitter and receiver set that provides an effective, economical solution for extending dual link DVI-D signals long distances over fiber optic cabling. It uses all-digital technology to deliver perfect pixel-for-pixel transmission of DVI computer-video images up to 2560x1600, including HDTV 1080p/60 and 2K. The transmitter and receiver work together to send dual link DVI signals up to 500 meters (1,640 feet) over two multimode cables. Designed for AV systems, the DDX 102 includes integrator-friendly features such as EDID Minder® and direct device connection. The DDX 102 transmitter and receiver are housed in compact DVI cable-type clamshell enclosures. The units connect to the fiber optic cables via industry standard LC-type connectors. To simplify installation, the cables can be run through conduits and other tight spaces before the transmitter and receiver are attached. The extender set connects directly to DVI source and display devices so no special mounting is necessary. To ensure a reliable DVI connection, EDID Minder automatically manages EDID by maintaining continuous EDID communication with the source. EDID Minder ensures that the source powers up properly and reliably outputs content for display. Pre-stored EDID is communicated to the source. Alternatively, the transmitter can be set to capture and store EDID information when connected to a display. The DDX 102 is ideal for a wide range of applications requiring long distance transmission of high resolution content. Because transmission of content is inherently secure and immune to outside interference, fiber applications are favored in government, military, rental and staging and medical environments.

• Transmits dual link DVI-D signals up to 500 meters (1,640 feet) over two multimode fiber optic cables
• Input: DVI-D connector - DDX 102 Tx/Output: DVI-D connector - DDX 102 Rx
• All-digital technology provides pixel-for-pixel performance with signals up to 2560x1600, including HDTV 1080p/60 and 2K
• Supports Single Link DVI-D signals over one fiber optic cable
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display
• Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
• Transmitter and receiver are detachable from cables — With the DDX 102 units detached, fiber optic cables can be easily run through conduit and other tight-spaced environments
• Direct device connection — The transmitter and receiver are housed in adapter-sized enclosures that attach directly to the source device and the display without the need for extra cables or mounting accessories

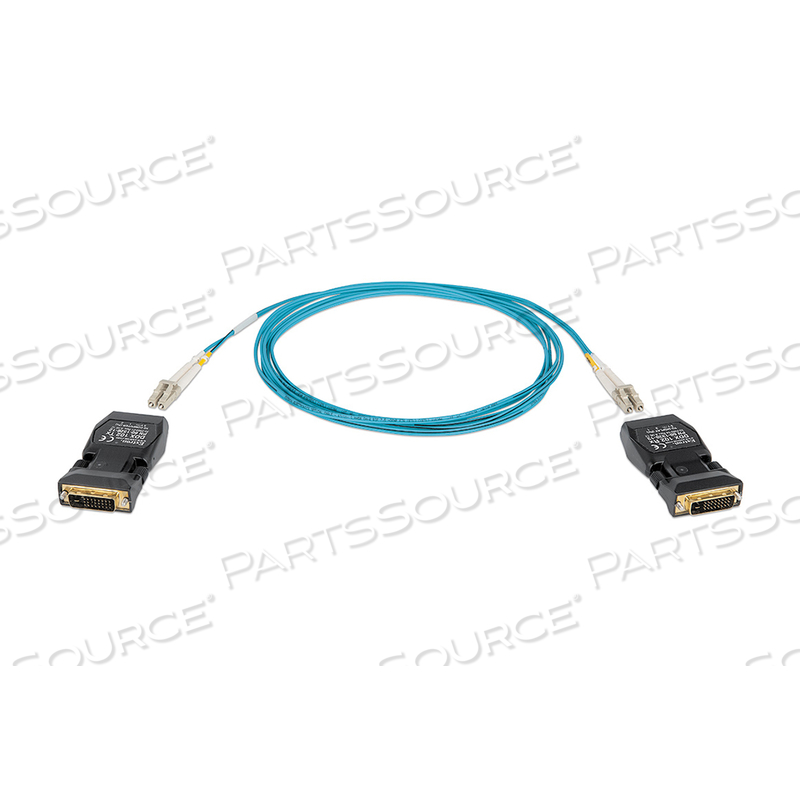

• Compatible with 2LC OM4 MM P pre-terminated fiber optic cable assemblies from Extron — Cable assemblies are available in various lengths from one meter (3.3 feet) to 60 meters (197 feet)
• Energy-efficient, external universal power supply included — Provides worldwide power compatibility

• Energy-efficient, external universal power supply included - Provides worldwide power compatibility
• Transmits dual link DVI-D signals up to 500 meters (1,640 feet) over two multimode fiber optic cables
• Input: DVI-D connector - DDX 102 Tx/Output: DVI-D connector - DDX 102 Rx
• All-digital technology provides pixel-for-pixel performance with signals up to 2560x1600, including HDTV 1080p/60 and 2K
• Supports Single Link DVI-D signals over one fiber optic cable
• EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display
• Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
• Transmitter and receiver are detachable from cables - With the DDX 102 units detached, fiber optic cables can be easily run through conduit and other tight-spaced environments
• Direct device connection - The transmitter and receiver are housed in adapter-sized enclosures that attach directly to the source device and the display without the need for extra cables or mounting accessories
• Compatible with 2LC OM4 MM P pre-terminated fiber optic cable assemblies from Extron - Cable assemblies are available in various lengths from one meter (3.3 feet) to 60 meters (197 feet)

The Extron DDX 102 Fiber Optic Extender is an extremely compact transmitter and receiver set that provides an effective, economical solution for extending dual link DVI-D signals long distances over fiber optic cabling. It uses all-digital technology to deliver perfect pixel-for-pixel transmission of DVI computer-video images up to 2560x1600, including HDTV 1080p/60 and 2K. The transmitter and receiver work together to send dual link DVI signals up to 500 meters (1,640 feet) over two multimode cables. Designed for AV systems, the DDX 102 includes integrator-friendly features such as EDID Minder® and direct device connection. The DDX 102 transmitter and receiver are housed in compact DVI cable-type clamshell enclosures. The units connect to the fiber optic cables via industry standard LC-type connectors. To simplify installation, the cables can be run through conduits and other tight spaces before the transmitter and receiver are attached. The extender set connects directly to DVI source and display devices so no special mounting is necessary. To ensure a reliable DVI connection, EDID Minder automatically manages EDID by maintaining continuous EDID communication with the source. EDID Minder ensures that the source powers up properly and reliably outputs content for display. Pre-stored EDID is communicated to the source. Alternatively, the transmitter can be set to capture and store EDID information when connected to a display. The DDX 102 is ideal for a wide range of applications requiring long distance transmission of high resolution content. Because transmission of content is inherently secure and immune to outside interference, fiber applications are favored in government, military, rental and staging and medical environments.

• Transmits dual link DVI-D signals up to 500 meters (1,640 feet) over two multimode fiber optic cables
• Input: DVI-D connector - DDX 102 Tx/Output: DVI-D connector - DDX 102 Rx
• All-digital technology provides pixel-for-pixel performance with signals up to 2560x1600, including HDTV 1080p/60 and 2K
• Supports Single Link DVI-D signals over one fiber optic cable
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display
• Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
• Transmitter and receiver are detachable from cables — With the DDX 102 units detached, fiber optic cables can be easily run through conduit and other tight-spaced environments
• Direct device connection — The transmitter and receiver are housed in adapter-sized enclosures that attach directly to the source device and the display without the need for extra cables or mounting accessories
• Compatible with 2LC OM4 MM P pre-terminated fiber optic cable assemblies from Extron — Cable assemblies are available in various lengths from one meter (3.3 feet) to 60 meters (197 feet)
• Energy-efficient, external universal power supply included — Provides worldwide power compatibility
