OEM#: UTB1CC1551EM56New OEM Original Outright

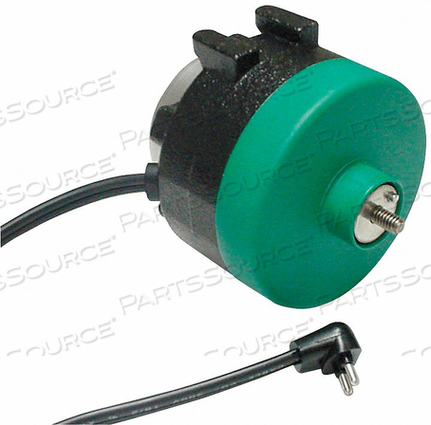

UNIT BEARING MOTOR ECM 7/16 IN L by EM&S
Your price:
$174.76 each
OEM#: UTB1CC1551EM56UNIT BEARING MOTOR ECM 7/16 IN L by EM&S
New OEM Original Outright
Your price:
$174.76 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: UTB1CC1551EM56 Key Specs
Item
UNIT BEARING MOTOR ECM 7/16 IN L
OEM
EM&S
OEM #
UTB1CC1551EM56
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
-40 to 40 Degrees C
Application
Condenser Fans
Body Diameter
3-1/2 in
Bolt Circle Diameter
2-13/16 in
Capacitor Required
No
Cord Length
18 in
Country of Origin
USA
Frame
Non-Standard
Full Load Amps
0.58
HP
1/50
Hz
60
Includes
Mounting Screws, Speed Nut
Ins. Class
A
Length Less Shaft
3-3/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Unit
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Rear/Foot
Motor Service Factor
1
Motor Shaft Design
Threaded
Motor Shaft Rotation
CWLE
Motor Sub Application
Refrigerator/Freezer
Motor Thermal Protection
Auto
Mounting Pattern
Bolt Circle
Nameplate RPM
1550
Output Watts
14 to 16
Overall Length
4-1/8 in
Phase
1
Plug Type
Round 2 Pin
RPM Range
1501-1600
Shaft Diameter
1/4 in
Shaft Length
7/16 in
Standards
UL Recognized for US and Canada
Voltage
115
Voltage Compatibility
115, 120
