OEM#: UTBCF1701E56CNew OEM Original Outright

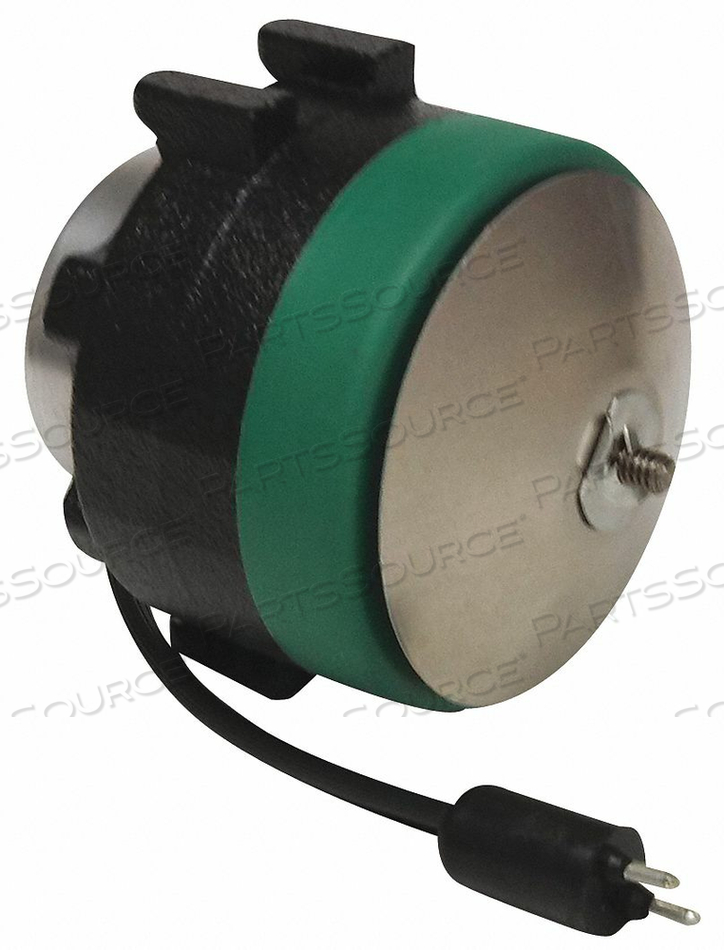

UNIT BEARING FAN MOTOR 1/57 HP 1725 RPM by EM&S
Your price:
$139.57 each
OEM#: UTBCF1701E56CUNIT BEARING FAN MOTOR 1/57 HP 1725 RPM by EM&S
New OEM Original Outright
Your price:
$139.57 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: UTBCF1701E56C Key Specs
Item
UNIT BEARING FAN MOTOR 1/57 HP 1725 RPM
OEM
EM&S
OEM #
UTBCF1701E56C
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
13/32 in
Bolt Circle Diameter
2-13/16 in
Cord Length
15 in
Country of Origin
USA
Frame
Non-Standard
Full Load Amps
0.3
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
1/57
Hz
60
Includes
Mounting Screws and Fan Nut
Ins. Class
B
Length Less Shaft
13/32 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Unit
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Mounting Type
Rear/Foot
Motor Shaft Design
Threaded
Motor Shaft Rotation
CWLE
Motor Sub Application
Refrigerator/Freezer
Motor Thermal Protection
Auto
Nameplate RPM
1725
Output Watts
13
Overall Length
13/32 in
Phase
1
Plug Type
Round 2 Pin
Resilient Ring Diameter
2-1/8 in
Ring Diameter
13/32 in
Shaft Diameter
1/4 in
Shaft Length
13/32 in
Standards
UL/CUL
Voltage
115
