OEM#: STFV30010NNew OEM Original Outright

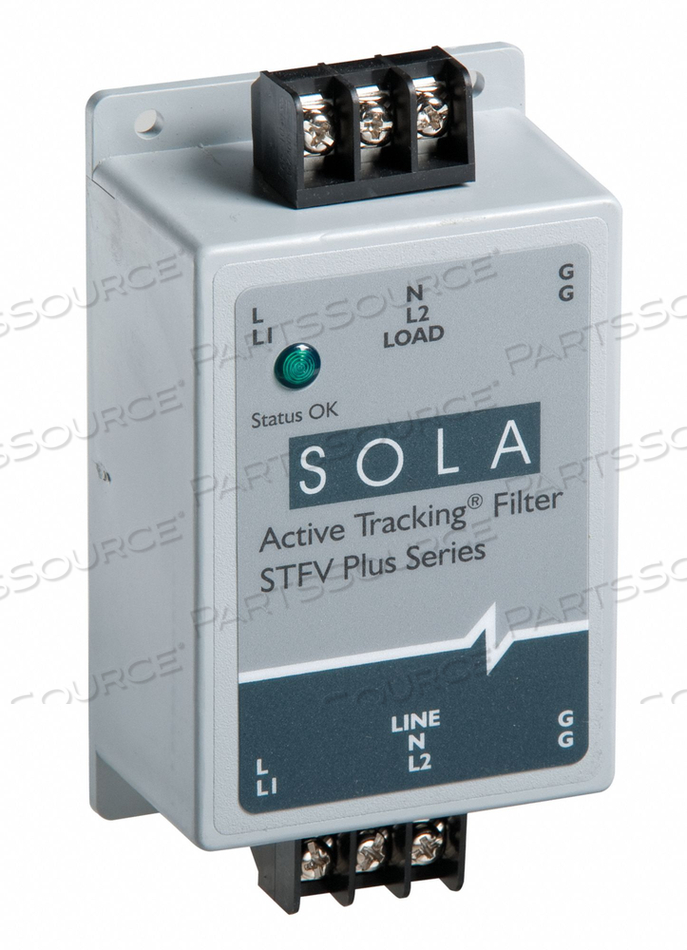

SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial
Your price:
$1,717.00 each
OEM#: STFV30010NSURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial
New OEM Original Outright
Your price:
$1,717.00 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: STFV30010N Key Specs
Item
SURGE PROTECTION DEVICE 120VAC 1PH
OEM
Emerson Industrial
OEM #
STFV30010N
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
30 A
Basic Material
Nonmetallic
Country of Origin
Mexico
Depth
2.35 in
Enclosure Material
Epoxy Encapsulated Plastic
Filtering
Yes
Green Environmental Attribute
Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists)
Includes
LED Status Indicator
Length
4.75 in
Max Continuing Operating Voltage
150V AC
Max Operating Temperature
140 Degrees F
Max Surge Current per Mode
12.5kA (L-N, L-G, N-G)
Max Surge Current per Phase
25 kA
Min Operating Temperature
-40 Degrees F
Modes of Protection
L-G, L-N, N-G
Modular
Yes
Mounting Location
Internally Mounted
Mounting Style
Surface
Noise Attenuation
90dB @ 100kHz to 50 MHz
Nominal Discharge Current
30 A
Number of Poles
1
Number of Wires
2 Wires + Ground
Phase
1
Short Circuit Current Rating
Not Rated
Standards
CE, CSA, RoHS, UL Listed, cULus Listed
System Connection
Series
Voltage
120V AC
Width
4.75 in
Wire Gauge
10 AWG
