OEM#: STFE20010NNew OEM Original Outright

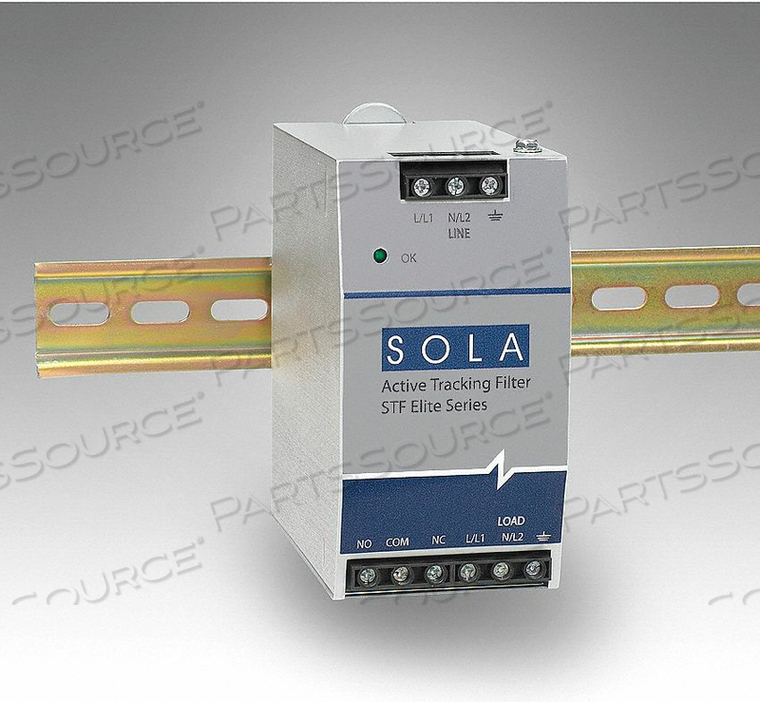

SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial
Your price:
$1,144.76 each
OEM#: STFE20010NSURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial
New OEM Original Outright
Your price:
$1,144.76 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: STFE20010N Key Specs
Item
SURGE PROTECTION DEVICE 120VAC 1PH
OEM
Emerson Industrial
OEM #
STFE20010N
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
20 A
Basic Material
Metallic
Country of Origin
Mexico
Depth
4.56 in
Enclosure Material
Metal
Filtering
Yes
Green Environmental Attribute
Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists)
IP Rating
20
Includes
LED Status Indicator
Length
4.88 in
Max Continuing Operating Voltage
150V AC
Max Operating Temperature
122 Degrees F
Max Surge Current per Mode
10kA (L-G, 20kA (L-N), N-G)
Max Surge Current per Phase
30 kA
Min Operating Temperature
-40 Degrees F
Modes of Protection
L-G, L-N, N-G
Modular
Yes
Mounting Location
Internally Mounted
Mounting Style
DIN Rail
Noise Attenuation
Common: 60dB @ 5 MHz to 50 MHz, Normal: 90dB @ 100kHz to 50 MHz
Nominal Discharge Current
20 A
Number of Poles
1
Number of Wires
2 Wires + Ground
Phase
1
Short Circuit Current Rating
5kAIC
Standards
CE, RoHS, Type 4, UL Listed, cULus Listed
System Connection
Series
UL SPD Type
Type 4
Voltage
120V AC
Voltage Protection Rating
400V (L-N), 500V (L-G, N-G)
Width
2.56 in
Wire Gauge
12 AWG
