OEM#: ET1517LNew OEM Original Outright

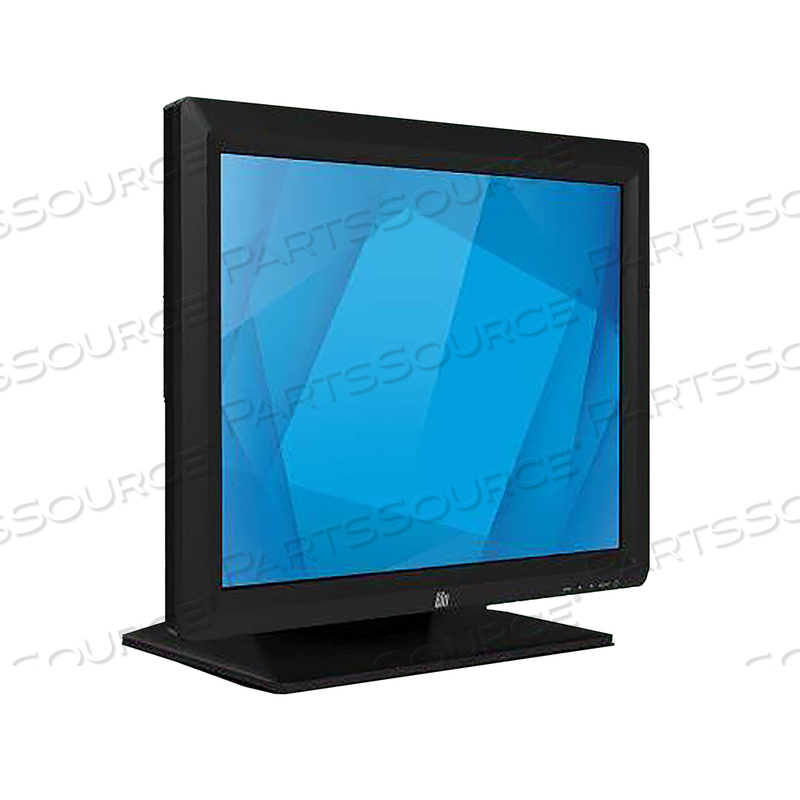

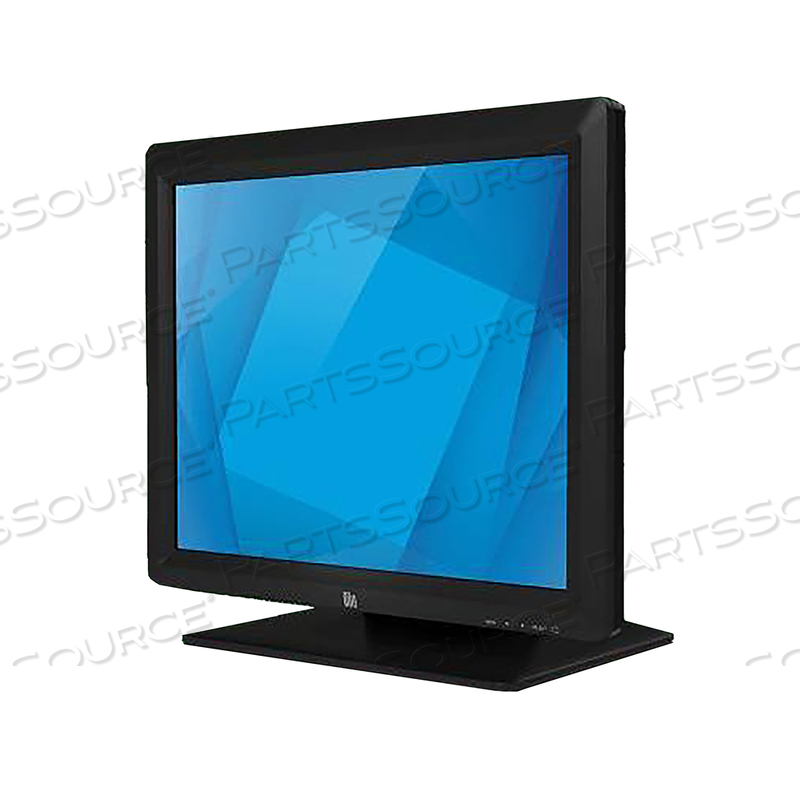

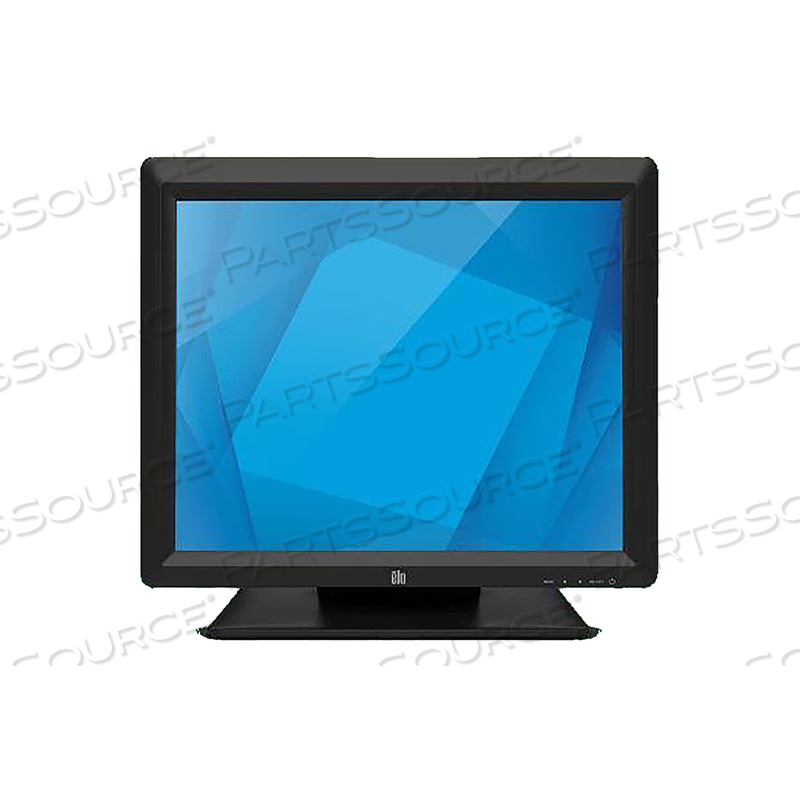

MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions

Your price:
$594.73 each
$599.99 Savings: $5.26 (1%)
Ready to ship
MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions
MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions
MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions
MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions
View All

OEM#: ET1517L
MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR by Elo Touch Solutions

New OEM Original Outright
Your price:
$594.73 each
$599.99 Savings: $5.26 (1%)
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
Product Overview

The Elo 1517L standard format touch screen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touch screen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

  • Sleek and thin design with built-for-touch reliability
  • 60% Energy savings using LED technology
  • Removable base and mounting options including VESA, wall and pole-mounting
  • Flexible and space-saving
  • Sealed touch screen against dirt, dust and liquids
  • USB and RS232 serial connections
  • Features
    • Worldwide agency approvals
    • High performance, flexible and reliable
    • Available with AccuTouch 5-wire zero-bezel resistive technology (activated with fingernails, gloves, credit cards, or any stylus), iTouch Surface Wave Technology for superior image quality (activated with finger or glove)
    • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation, USB with human interface device (HID) class specification 1.1 and a choice of optional customer displays
    • Sealed touchscreen
    • USB interface
    • Removable stand and VESA mounting option
    • Mounting holes on stand bottom for tabletop security
    • Controls on the side rather than the front, plus lockout function for public use
    • Digital on-screen display (OSD)
    Technical Specs
    P/N: ET1517L Key Specs
    Item
    MULTIFUNCTION 15 INCH DESKTOP TOUCHMONITOR
    OEM
    Elo Touch Solutions
    OEM #
    ET1517L
    Condition
    New OEM Original
    Returnable
    No
    Warranty
    24 Month
    Approvals
    UL; cUL; FCC; IC; CCC; CE; VCCI; KCC; e-Standby; CoC; BSMI Mark; CB; RoHS; China RoHS; RCM; Argentinean S-Mark; WEEE
    Aspect Ratio
    4:3
    Color
    White/Black Enclosure
    Contrast Ratio
    800:1
    Diagonal Size
    15 in
    Input Video Format
    Analog VGA on Female DB-15 connector; Digital HDMI on Type A receptacle
    Monitor Dimensions
    14.1 in x 7.8 in x 12.5 in
    Monitor Thickness
    1.7 in
    Number of Colors
    16.2 million
    Operating Temperature
    0 to 40 deg C
    Panel Type
    LCD
    Power Supply
    12 VDC
    Resolution
    1024 x 768 at 60 HZ, 75 HZ
    Response Time
    23 msec
    Storage Temperature
    20 to 60 deg C
    Supported Resolutions
    640 x 480 @ 60 Hz; 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 56 Hz; 60 Hz; 75 Hz; 1024 x 768 @ 60 Hz; 75 Hz
    Touch Interface
    Serial (RS232) and USB
    Touch Technology
    5-Wire Resistive; SAW; SAW ZB
    Viewing Angle
    Horizontal: ± 80 deg or 160 deg total / Vertical: 70 deg /80 deg or 150 deg total
    Voltage Rating
    100 to 240 VAC
