OEM#: E5666BWL62641New OEM Original Outright

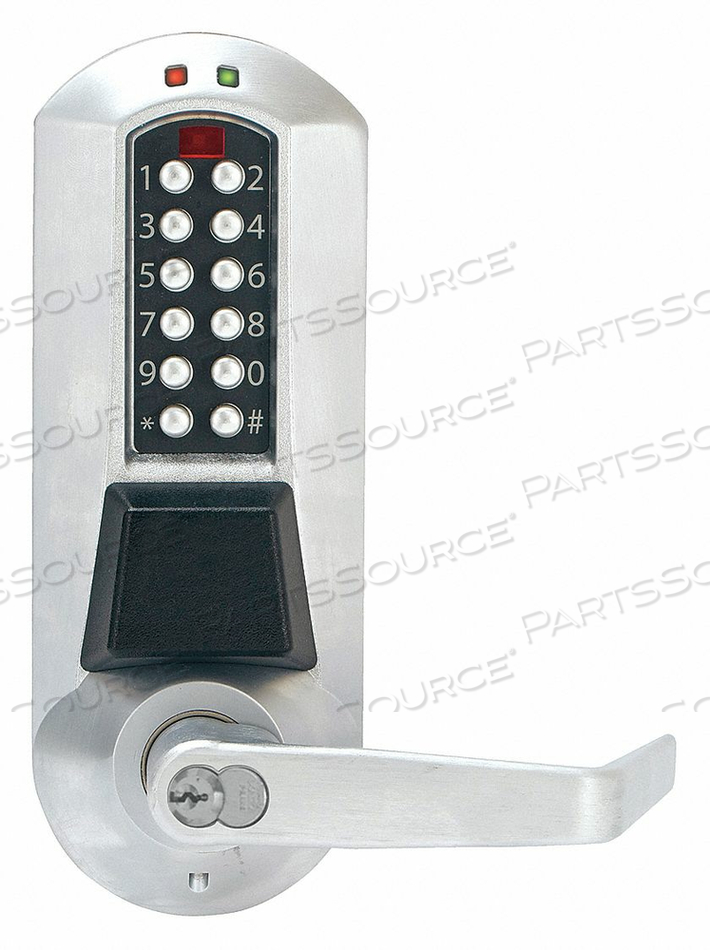

ELECTRONIC LOCK SATIN CHROME 20 BUTTON by E-Plex
Your price:
$1,877.32 each
OEM#: E5666BWL62641ELECTRONIC LOCK SATIN CHROME 20 BUTTON by E-Plex
New OEM Original Outright
Your price:
$1,877.32 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: E5666BWL62641 Key Specs
Item
ELECTRONIC LOCK SATIN CHROME 20 BUTTON
OEM
E-Plex
OEM #
E5666BWL62641
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
ADA Compliant
Yes
Access Method
Keypad
Backset
2-3/4 in
Battery Life
Up to 120,000 Cycles
Country of Origin
Mexico
Door Thickness
1-3/4 in to 2-1/4 in
Electrical/Mechanical
Electrical
Event Audit Trail
3000
Finish
Satin Chrome
Fire Rating
3 hr
Function
Entry with Key Override
Grade
1
Hand
Nonhanded
Handle Type
Lever
Includes
Installation Screws
Inside Depth
2-1/8 in
Inside Height
8-7/8 in
Inside Width
3-3/16 in
Key Override Options
Best and Equivalents
Keypad Material
Solid Metal
Latch Front Size
3/4 in
Latch Length
3/4 in
Lock Material
Solid Cast
Max Proximity Range
1/2 in
Max User Codes
100
Mounting Style
Mortise
Number of Keys
12
Operating Temperature Range
-31 Degrees to 130 Degrees F Housing, -31 Degrees to 151 Degrees F Front Housing
Outside Depth
3-13/16 in
Outside Height
8-7/8 in
Outside Width
3-3/8 in
Power Source
(4) AA Batteries
Series
E5600
Standards
ANSI/BHMA A156.13
Timed Entry Allowance
2 to 20 sec
Weather Resistant
Yes
