OEM#: E5031SWL626-41New OEM Original Outright

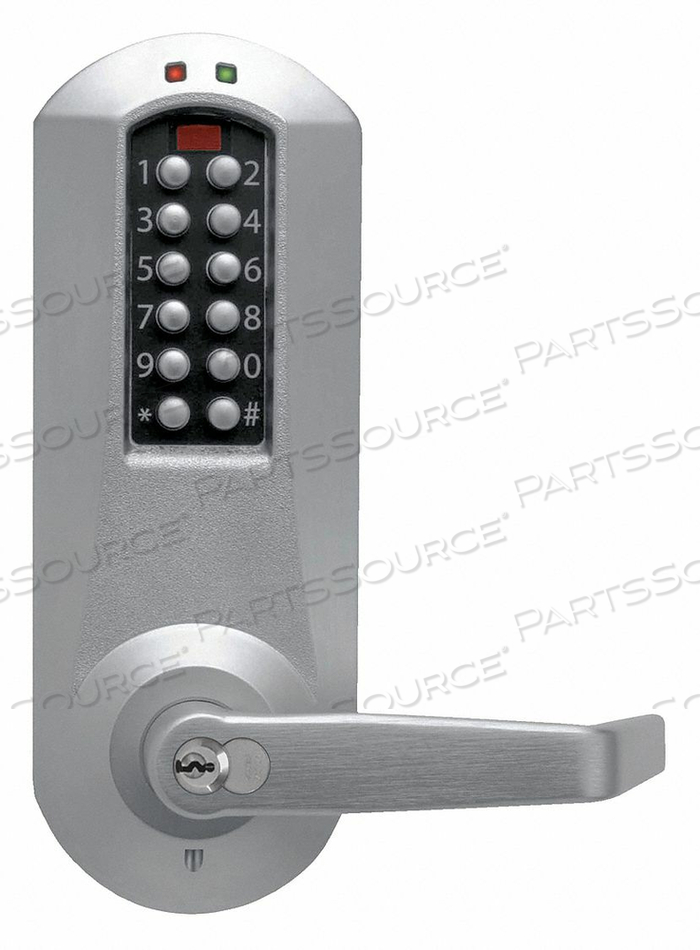

ELECTRONIC LOCK SATIN CHROME 12 BUTTON by E-Plex

Your price:
$1,054.27 eachReady to ship
HomeE-PlexE5031SWL62641
ELECTRONIC LOCK SATIN CHROME 12 BUTTON by E-Plex
ELECTRONIC LOCK SATIN CHROME 12 BUTTON by E-Plex

OEM#: E5031SWL626-41
ELECTRONIC LOCK SATIN CHROME 12 BUTTON by E-Plex

New OEM Original Outright
Your price:
$1,054.27 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: E5031SWL626-41 Key Specs
Item
ELECTRONIC LOCK SATIN CHROME 12 BUTTON
OEM
E-Plex
OEM #
E5031SWL626-41
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
ADA Compliant
Yes
Access Method
Keypad
Backset
2-3/4 in
Battery Life
Up to180,000 Cycles
Country of Origin
Mexico
Door Thickness
1-3/8 in to 2-1/4 in
Electrical/Mechanical
Electrical
Event Audit Trail
9000
Finish
Satin Chrome
Fire Rating
3 hr
For Use With
Schlage R/C
Function
Entry with Key Override
Grade
1
Hand
Nonhanded
Handle Type
Lever
Includes
Kaba 1599 6-pin cylinder (prepped to Kaba 90 or Schlage "C" Keyway, keyed different) and tailpieces
Inside Depth
2-1/8 in
Inside Height
8-7/8 in
Inside Width
3-3/16 in
Key Override Options
Schlage Interchangeable Core
Keypad Material
Solid Metal
Latch Front Size
1/2 in
Latch Length
1/2 in
Lock Material
Solid Cast
Max Proximity Range
At Lock
Max User Codes
100
Mounting Style
Cylindrical
Number of Keys
12
Operating Temperature Range
-31 Degrees to 130 Degrees F Housing, -31 Degrees to 151 Degrees F Front Housing
Outside Depth
3-13/16 in
Outside Height
8-7/8 in
Outside Width
3-3/8 in
Power Source
(4) AA Batteries
Series
E5000
Standards
ANSI/BHMA A156.2, Grade 1 Certification, UL/ULC Fire Door Rating for in A in Labeled Doors
Timed Entry Allowance
2 to 20 sec
Weather Resistant
Yes
