OEM#: IS626-13-GH-P1-E1-S1New OEM Original Outright

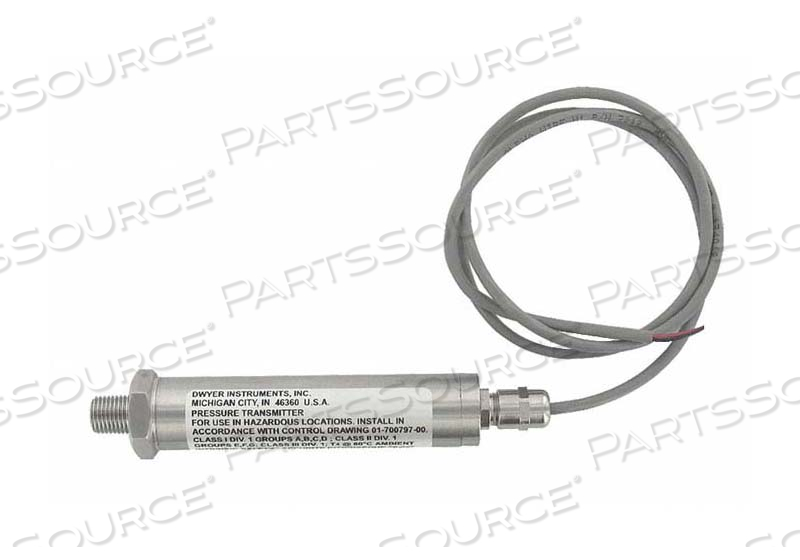

INTRINSICALLY SAFE TRANSDUCER 0TO300 PSI by Dwyer Instruments
Your price:
$831.27 each
OEM#: IS626-13-GH-P1-E1-S1INTRINSICALLY SAFE TRANSDUCER 0TO300 PSI by Dwyer Instruments
New OEM Original Outright
Your price:
$831.27 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: IS626-13-GH-P1-E1-S1 Key Specs
Item
INTRINSICALLY SAFE TRANSDUCER 0TO300 PSI
OEM
Dwyer Instruments
OEM #
IS626-13-GH-P1-E1-S1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Accuracy - Transmitter
+/-0.25% Full Scale
Country of Origin
USA
Electrical Connections - Transmitter
3 ft Cable
Housing
Stainless Steel
Includes
Instructions
Loop Resistance
900 ohms Max
Max Pressure (PSI)
600 psi
NEMA Rating
4X
Operating Temperature - Transmitter
0 Degrees to 176 Degrees F
Output - Transmitter
4 to 20mA DC
Power Required - Transmitters
10 to 28V DC
Process Connection Size - Transmitter
1/4 in
Process Connection Type - Transmitter
MNPT
Range Units - Transmitter
psi
Range Values - Transmitter
0 to 300
Safety Rating - Transmitter
Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1
Thermal Error
+/-0.02% Full Scale / Degrees F
Transmitter Type
Intrinsically Safe Pressure Transmitter
Wetted Materials - Transmitters
316L Stainless Steel
Wiring Entry - Transmitter
1/2 in FNPT
