OEM#: 7M8F5New OEM Original Outright

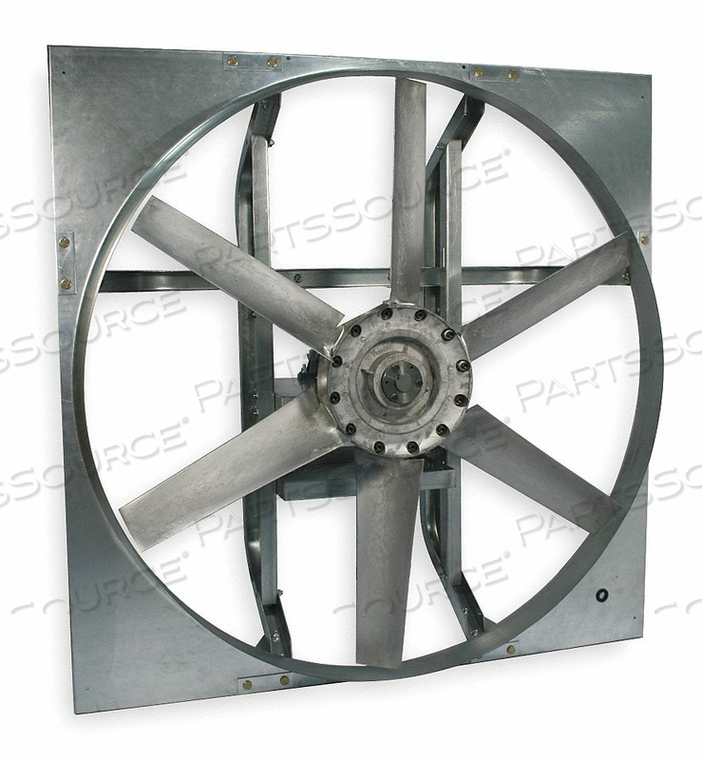

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$6,460.21 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7m8f5
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW by DAYTON ELECTRIC MANUFACTURING CO
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7M8F5
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$6,460.21 each

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN SP 33,602 CFM, FOR CUT-OUT HEIGHT 56 1/2 IN, FOR CUT-OUT WIDTH 56 1/2 IN, FRAME FINISH ZINC PLATED, FRAME MATERIAL STEEL, GUARD TYPE NONE, INCLUDES DRIVE PACKAGE, INCLUDES DEHUMIDISTAT NO, MAXIMUM AIRFLOW 33,602 CFM, MAXIMUM NOISE LEVEL 27 SONES

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7M8F5 Key Specs
Item
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 54 IN, BLADE MATERIAL ALUMINUM, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7M8F5
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Aluminum Wall Shutter Number
3C313
Assembly
Unassembled
Bearing Size
1-1/2 in
Bearing Type
Regreasable Pillow Block
Blade Diameter
54 in
CFM @ 0.000 in SP
33,602
CFM @ 0.125 in SP
30,247
CFM @ 0.250 in SP
25,975
Drive Package With Motor Included
Yes
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
3
Fan RPM
480
Fan Voltage
115/230 V AC
Fiberglass Wall Shutter Number
5C221
Flange Depth
2 in
Flange Width
60 in
Frame Material
Galvanized Steel
Full Load Amps
30/15
Galvanized Wall Shutter Number
3C115
Height
60 in
Hz
60
Includes
)V-Belt, Drive Package, Exhaust Fan, General Purpose Motor, Quick Detachable Bushing, Standard V-Belt Pulley, Variable Pitch V-Belt Pulley
Intake Guard Number
1WBU8
Max BHP
3.45
Max Depth
33-1/2 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation
Class F
Motor RPM
1740
Motor Type
Capacitor-Start
Motorized Wall Galv. Shutter Stock Number
3C732
Mounting Position
Horizontal or Vertical
Number of Blades
6
Phase
1
Propeller Material
Cast Aluminum
Shaft Diameter
1-1/2 in
Sones @ 0.000 in SP @ 5 ft
27
Sones @ 0.250 in SP @ 5 ft
29
Venturi Clearance Diameter
55 in
Venturi Depth
6-1/2 in
Wall Collar Stock Number
1WBV7
Weatherhood Number
1WBW5
Width (Inches)
60
