OEM#: 7M7W5New OEM Original Outright

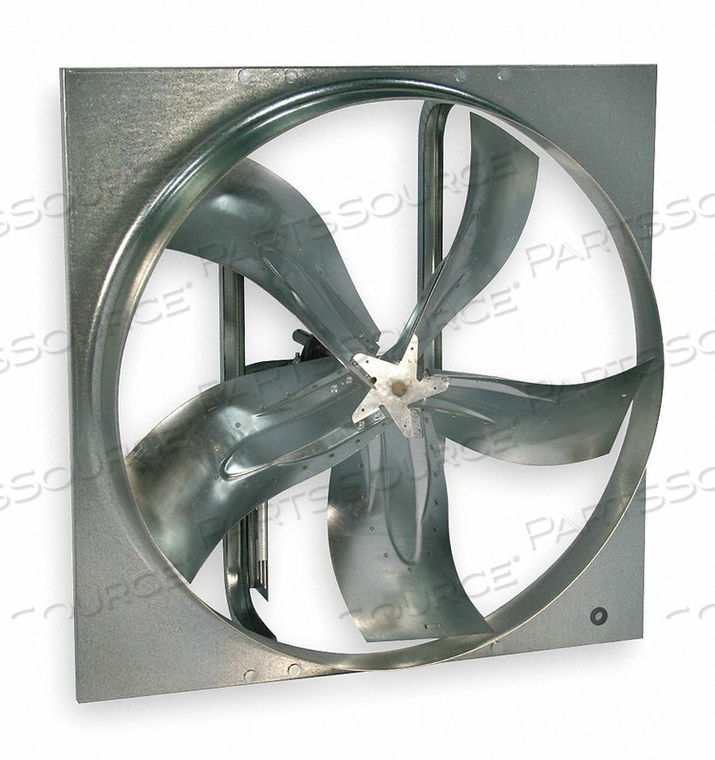

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,559.71 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7m7w5
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7M7W5
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,559.71 each

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN SP 8,734 CFM, FOR CUT-OUT HEIGHT 26 1/2 IN, FOR CUT-OUT WIDTH 26 1/2 IN, FRAME FINISH ZINC PLATED, FRAME MATERIAL STEEL, GUARD TYPE NONE, INCLUDES DRIVE PACKAGE, INCLUDES DEHUMIDISTAT NO, MAXIMUM AIRFLOW 8,734 CFM, MAXIMUM NOISE LEVEL 27 SONES

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7M7W5 Key Specs
Item
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7M7W5
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Aluminum Wall Shutter Number
4FZH7
Assembly
Unassembled
Bearing Size
3/4 in
Bearing Type
Regreasable Pillow Block
Blade Diameter
24 in
CFM @ 0.000 in SP
8734
CFM @ 0.125 in SP
8173
CFM @ 0.250 in SP
7507
CFM @ 0.375 in SP
6279
Drive Package With Motor Included
Yes
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1
Fan RPM
930
Fan Voltage
115/208-230 V AC
Flange Depth
1-1/4 in
Flange Width
28 in
Frame Material
Galvanized Steel
Full Load Amps
10/5.3-5
Height
28 in
Hz
60
Includes
Drive Package
Intake Guard Number
1WBU3
Max BHP
1.15
Max Depth
18 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation
Class B
Motor RPM
1750
Motor Type
Capacitor-Start
Motorized Wall Galv. Shutter Stock Number
3C327
Mounting Position
Horizontal or Vertical
Number of Blades
5
Phase
1
Propeller Material
Galvanized Steel
Shaft Diameter
3/4 in
Sones @ 0.000 in SP @ 5 feet
27
Sones @ 0.250 in SP @ 5 feet
17.7
Venturi Clearance Diameter
24-3/8 in
Venturi Depth
4-3/8 in
Wall Collar Stock Number
1WBV1
Weatherhood Number
1WBV9
Width (Inches)
28
