OEM#: 7F884New OEM Original Outright

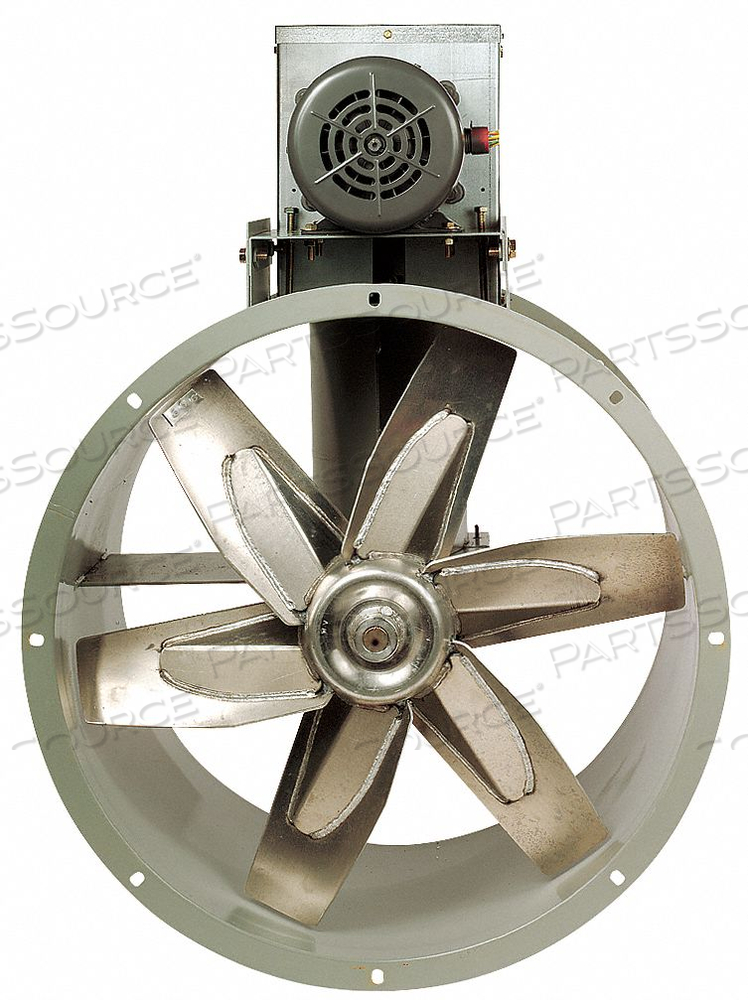

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, P by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$7,129.14 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7f884
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, P by DAYTON ELECTRIC MANUFACTURING CO
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, P by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7F884
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, P by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$7,129.14 each

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, PHASE 3, MOTOR HORSEPOWER 5 HP, AIRFLOW @ 0.000 IN SP 31,260 CFM, MAXIMUM NOISE LEVEL @ 5 FEET 64 SONES, ASSEMBLY UNASSEMBLED, FOR AIR TYPE FLAMMABLE VAPOR, BLADE MATERIAL ALUMINUM, HOUSING MATERIAL STEEL, NUMBER OF BLADES 5, NUMBER OF SPEEDS 1, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN COOLED, STANDARDS AMCA, BOLT

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7F884 Key Specs
Item
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 48 IN, NAMEPLATE VOLTAGE 230/460V AC, P
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7F884
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Unassembled
Bearing Type
Ball
Blade Dia.
48 in
Blade Material
Spark Resistant Aluminum
Bolt Circle Dia.
50 1/4 in
CFM @ 0.000-In. SP
31,260 cfm
CFM @ 0.125-In. SP
30,070 cfm
CFM @ 0.250-In. SP
28,745 cfm
CFM @ 0.500-In. SP
25,810 cfm
CFM @ 0.750-In. SP
22,170 cfm
Companion Flange Stock No.
3C444
Dimension A
51 3/4 in
Dimension B
28 5/16 in
Dimension C
48 1/2 in
Dimension D
36 in
Dimension E
9/16 in
Drive Type
Belt-Drive
Fan RPM
731
Full Load Amps
12.8/6.4
Height
64 3/4 in
Housing Dia. w/Mtg. Flange
51 3/4 in
Housing Dia. w/o Mtg. Flange
48 1/2 in
Housing Finish
Baked Enamel
Housing Material
Steel
Hz
60 Hz
Includes
Belt Guard
Inlet Dia.
48 5/8 in
Max. Ambient Temp.
104 Degrees F
Max. BHP
5.0 hp
Max. Depth
36 in
Max. Inlet Temp.
200 Degrees F
Max. Motor Height
12 1/2 in
Motor Enclosure
Hazardous Location, Totally Enclosed Fan-Cooled
Motor HP
5 hp
Motor RPM
1,750 RPM
Motor Type
3-Phase
Mounting Position
Vertical/Horizontal
Number of Blades
5
Outlet Dia.
48 5/8 in
Phase
3
Replacement Fan Blade Stock No.
3C422
Shaft Dia.
1 7/16 in
Sones @ 0.250 in SP @ 5 ft
64
Standards
AMCA
Voltage
230/460
Width
51 3/4 in
