OEM#: 7F852New OEM Original Outright

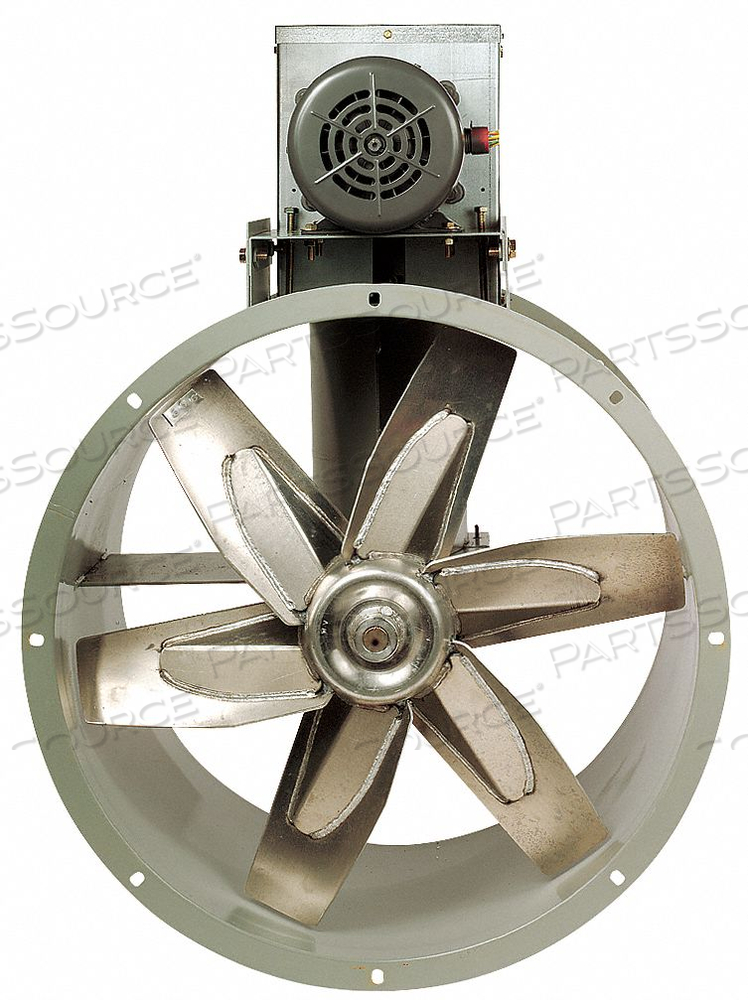

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V A by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$4,320.07 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7f852
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V A by DAYTON ELECTRIC MANUFACTURING CO
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V A by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7F852
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V A by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$4,320.07 each

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V AC, PHASE 3, MOTOR HORSEPOWER 3 HP, AIRFLOW @ 0.000 IN SP 16,560 CFM, MAXIMUM NOISE LEVEL @ 5 FEET 50 SONES, ASSEMBLY UNASSEMBLED, FOR AIR TYPE CLEAN AIR, BLADE MATERIAL ALUMINUM, HOUSING MATERIAL STEEL, NUMBER OF BLADES 6, NUMBER OF SPEEDS 1, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN COOLED, STANDARDS AMCA, BOLT C

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7F852 Key Specs
Item
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 34 IN, NAMEPLATE VOLTAGE 208-230/460V A
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7F852
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Unassembled
Bearing Type
Ball
Blade Dia.
34 in
Blade Material
Spark Resistant Aluminum
Bolt Circle Dia.
36 1/4 in
CFM @ 0.000-In. SP
16,560 cfm
CFM @ 0.125-In. SP
15,985 cfm
CFM @ 0.250-In. SP
15,350 cfm
CFM @ 0.500-In. SP
13,965 cfm
CFM @ 0.750-In. SP
12,305 cfm
CFM @ 1.000-In. SP
7,750
Companion Flange Stock No.
3C441
Dimension A
37 3/4 in
Dimension B
21 3/8 in
Dimension C
34 1/2 in
Dimension D
29 in
Dimension E
7/16 in
Drive Type
Belt-Drive
Fan RPM
1,074
Full Load Amps
8.7-7.8/3.9
Height
50 3/4 in
Housing Dia. w/Mtg. Flange
37 3/4 in
Housing Dia. w/o Mtg. Flange
34 1/2 in
Housing Finish
Baked Enamel
Housing Material
Steel
Hz
60 Hz
Includes
Belt Guard
Inlet Dia.
34 5/8 in
Max. Ambient Temp.
104 Degrees F
Max. BHP
2.78 hp
Max. Depth
29 in
Max. Inlet Temp.
200 Degrees F
Max. Motor Height
10 in
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor HP
3 hp
Motor RPM
1,740 RPM
Motor Type
3-Phase
Mounting Position
Vertical/Horizontal
Number of Blades
6
Outlet Dia.
34 5/8 in
Phase
3
Replacement Fan Blade Stock No.
3C419
Shaft Dia.
1 3/16 in
Sones @ 0.250 in SP @ 5 ft
50
Standards
AMCA
Voltage
208-230/460
Width
37 3/4 in
