OEM#: 7CC78New OEM Original Outright

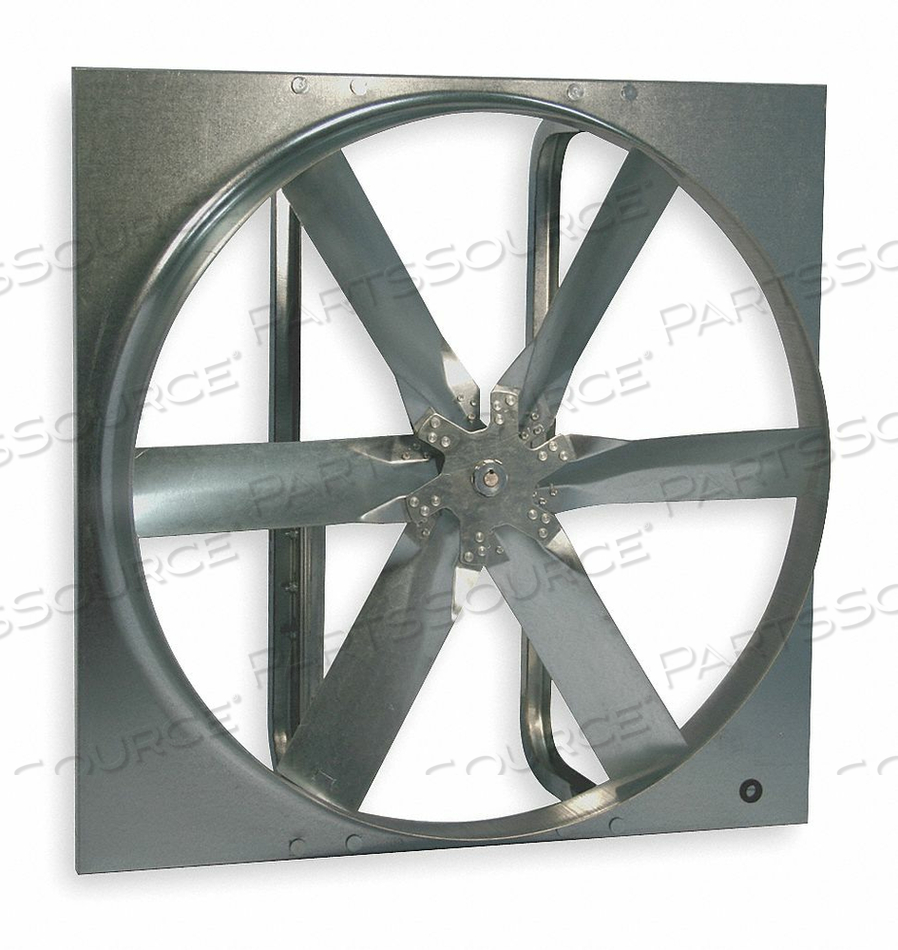

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,211.29 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7cc78
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7CC78
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,211.29 each

EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @ 0.000 IN SP 5,292 CFM, FOR CUT-OUT HEIGHT 26 1/2 IN, FOR CUT-OUT WIDTH 26 1/2 IN, FRAME FINISH ZINC PLATED, FRAME MATERIAL STEEL, GUARD TYPE NONE, INCLUDES DRIVE PACKAGE, INCLUDES DEHUMIDISTAT NO, MAXIMUM AIRFLOW 5,292 CFM, MAXIMUM NOISE LEVEL 21 SONES

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7CC78 Key Specs
Item
EXHAUST FAN WITH DRIVE PACKAGE, ASSEMBLED UNASSEMBLED, BLADE DIAMETER 24 IN, BLADE MATERIAL STEEL, DRIVE TYPE BELT DRIVE, EXHAUST AIRFLOW @
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7CC78
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Aluminum Wall Shutter Number
3C308
Assembly
Unassembled
Bearing Size
3/4 in
Bearing Type
Sealed Pillow Block
Blade Diameter
24 in
CFM @ 0.000 in SP
5292
CFM @ 0.125 in SP
4830
CFM @ 0.250 in SP
4207
Drive Package With Motor Included
Yes
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1/3
Fan RPM
1012
Fan Voltage
208-230/460 V AC
Fiberglass Wall Shutter Number
5C215
Flange Depth
1 in
Flange Width
28 in
Frame Material
Galvanized Steel
Full Load Amps
1.6-1.8/.9
Galvanized Wall Shutter Number
1C746
Height
28 in
Hz
60
Includes
Drive Package
Intake Guard Number
1WBU3
Max BHP
0.39
Max Depth
18 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation
Class B
Motor RPM
1725
Motor Type
3-Phase
Motorized Wall Galv. Shutter Stock Number
3C727
Mounting Position
Horizontal or Vertical
Number of Blades
6
Phase
3
Propeller Material
Galvanized Steel
Shaft Diameter
3/4 in
Sones @ 0.000 in SP @ 5 feet
21
Sones @ 0.250 in SP @ 5 feet
19.9
Venturi Clearance Diameter
24-3/8 in
Venturi Depth
4-3/8 in
Wall Collar Stock Number
1WBV1
Weatherhood Number
1WBV9
Width (Inches)
28
