OEM#: 7AV06New OEM Original Outright

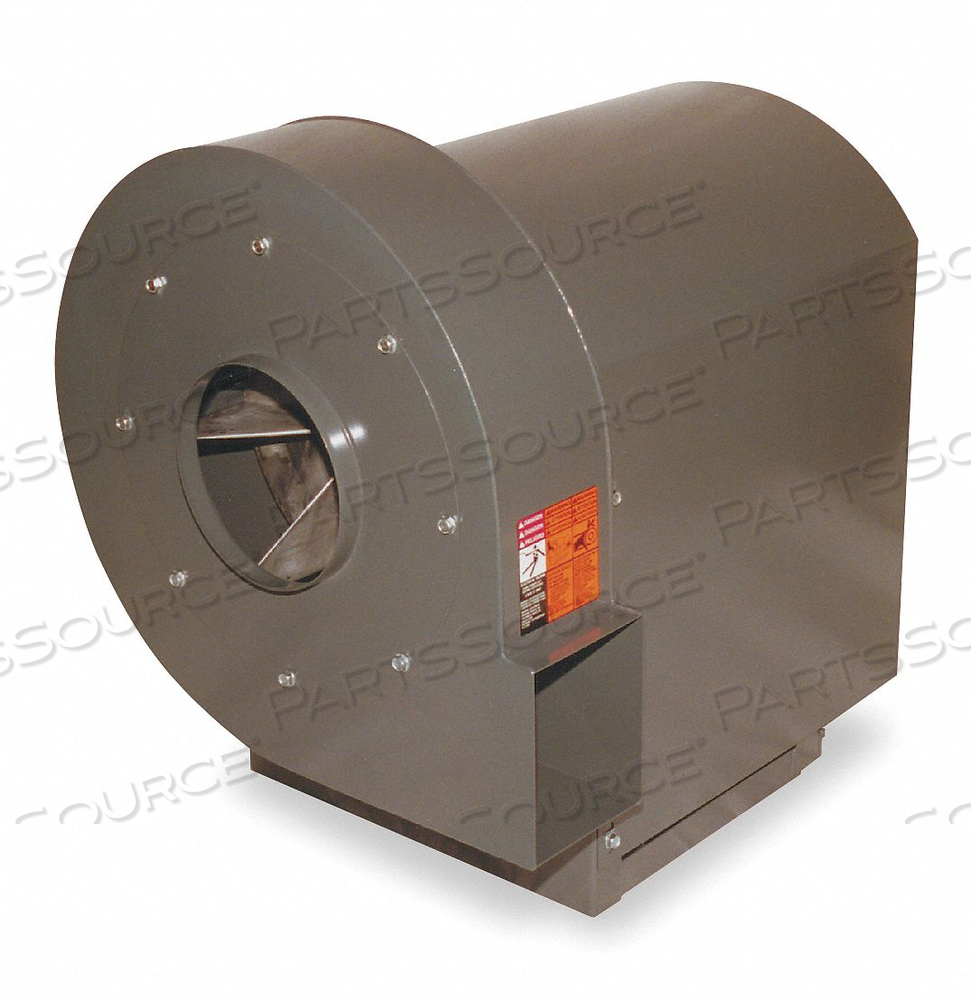

BLOWER W/ DR PKG 10 5/8 DIA 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,264.06 each
OEM#: 7AV06BLOWER W/ DR PKG 10 5/8 DIA 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,264.06 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7AV06 Key Specs
Item
BLOWER W/ DR PKG 10 5/8 DIA 115/208-230V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7AV06
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Type
Ball
CFM @ 1.000-In. SP
648 @3100 RPM
CFM @ 2.000-In. SP
614 @3200 RPM
CFM @ 3.000-In. SP
579 @3300 RPM
CFM @ 4.000-In. SP
527 @3350 RPM
CFM @ 5.000-In. SP
471 @3400 RPM
CFM @ 6.000-In. SP
427 @3500 RPM
CFM @ 7.000-In. SP
378 @3600 RPM
CFM @ 8.000-In. SP
317 @3700 RPM
Discharge Height (In.)
4
Discharge Width (In.)
3-1/2
Full Load Amps
11.8/6.3-5.9
Housing Finish
Gray Polyester Epoxy
Housing Height (In.)
21
Housing Length (In.)
16
Housing Material
Steel
Housing Width (In.)
20
Hz
60
Includes
4C129, 4L300, 6K484, AK3934, 1VP4458
Inlet Dia. (In.)
6
Max. Ambient Temp. (F)
104
Max. Blower RPM
3700
Max. Inlet Temp. (Deg. F)
180
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Frame
56
Motor HP
1
Motor Insulation
Class B
Motor RPM
3450
Motor Type
Capacitor-Start
Phase
Single
Rotation
CW
Shaft Dia. (In.)
3/4
Type
With Drive Package
Voltage
115/208-230
Wheel Dia. (In.)
10-5/8
Wheel Material
Aluminum
Wheel Width (In.)
3
dBA @ 5 Feet
87
