OEM#: 7AF27New OEM Original Outright

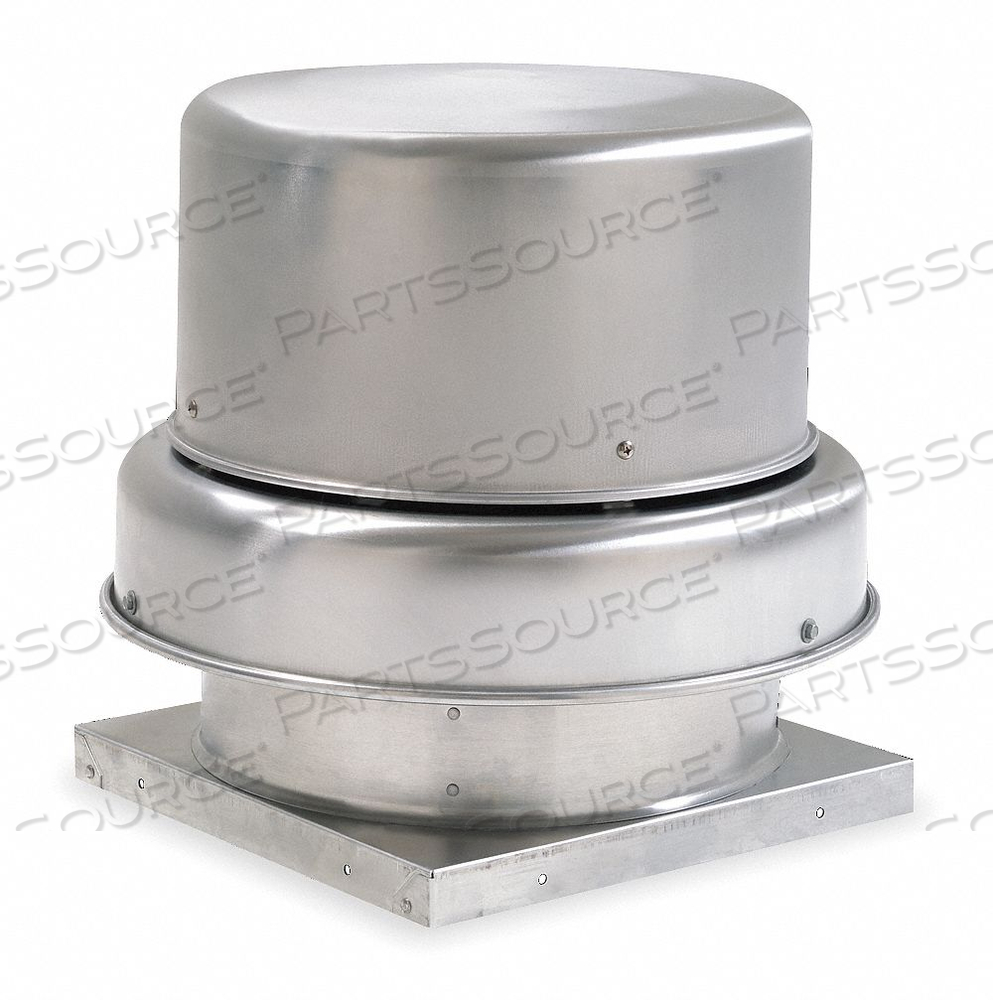

CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE, by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$4,035.74 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7af27
CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE, by DAYTON ELECTRIC MANUFACTURING CO
CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE, by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7AF27
CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE, by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$4,035.74 each

CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE, BASE LENGTH 42 IN, BASE WIDTH 42 IN, BASE SHAPE SQUARE, NAMEPLATE VOLTAGE 230/460V AC, PHASE 3, MOTOR HORSEPOWER 3/4 HP, EXHAUST AIRFLOW @ 0.000 IN SP 7,694 CFM, FOR HIGH-STATIC PRESSURE APPLICATIONS NO, HIGH-EFFICIENCY MOTOR NO, FOR AIR TYPE FLAMMABLE VAPOR, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, M

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7AF27 Key Specs
Item
CENTRIFUGAL DOWNBLAST ROOF EXHAUST FAN, DRIVE TYPE BELT DRIVE, ASSEMBLY UNASSEMBLED, WHEEL DIAMETER 30 1/2 IN, BASE DIAMETER NOT APPLICABLE,
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7AF27
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Adj. 12 3/8"H Roof Curb Stock No.
2ZV84
Adj. 6 3/8"H Roof Curb Stock No.
4C455
Agency Compliance
& G hazardous locations, F, Motor only UL Listed for Class I Groups C, D andClass II Groups E
Assembly
Unassembled
Base Height
1 3/4 in
Base Size - Roof Ventilators
42 in x 42 in
CFM @ 0.000-In. SP
7694
CFM @ 0.125-In. SP
7197
CFM @ 0.250-In. SP
6616
CFM @ 0.375-In. SP
5955
CFM @ 0.500-In. SP
5095
Dimension A
42 in
Dimension B
50 in
Dimension C
36 in
Dimension D
8 1/4 in
Drive Package With Motor Included
Yes
Drive Type - Roof Ventilators
Belt Drive
Duty Rating - Roof Ventilators
Hazardous Location
Housing Material
Spun Aluminum
Hz
60
Includes
056T17G15551, 3X699, 4YY10, AK1141, 1VP3458, 33M296
Item - Roof Ventilators
Downblast Ventilator
Max. BHP
0.77
Max. Inlet Temp.
180 Degrees
Max. Operating Amps
3.0/1.5
Motor HP - Roof Ventilators
3/4 hp
Mounting Location - Roof Ventilators
Roof
Number of Speeds
1
Overall Dia.
50 in
Overall Height
36 in
Phase
3
RPM
475
Recommended 12 In. Fixed Curb Item No.
2RB81
Recommended 8 In. Fixed Curb Item No.
4HX43
Shaft Dia. Wheel End
1 in
Sones @ 0.125-In. SP @ 5 Ft.
10.6
Sones @ 0.250-In. SP @ 5 Ft.
9.6
Sones @ 0.500-In. SP @ 5 Ft.
8.1
Speed Controllable
No
Voltage - Roof Ventilators
230V AC/460V AC
Wheel Dia.
30 1/2 in
Wheel Material
Aluminum
Wheel Type
Backward Inclined Centrifugal
