OEM#: 7M7Y9New OEM Original Outright

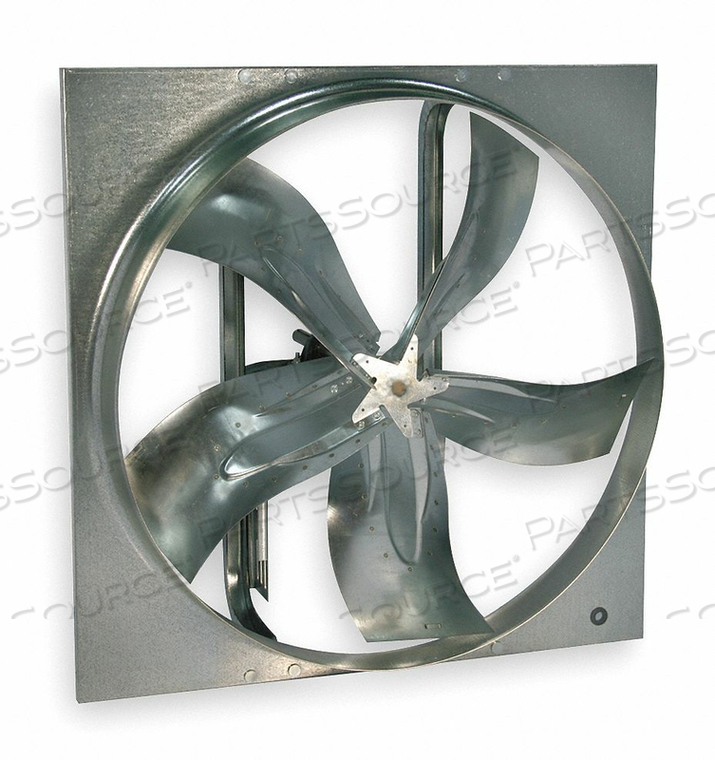

MED DUTY FAN 12 328 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$2,002.23 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7M7Y9
MED DUTY FAN 12 328 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO
MED DUTY FAN 12 328 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7M7Y9
MED DUTY FAN 12 328 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$2,002.23 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7M7Y9 Key Specs
Item
MED DUTY FAN 12 328 CFM 208-230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7M7Y9
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Aluminum Wall Shutter Number
3C309
Assembly
Unassembled
Bearing Size
1 in
Bearing Type
Regreasable Pillow Block
Blade Diameter
30 in
CFM @ 0.000 in SP
12,328
CFM @ 0.125 in SP
11,355
CFM @ 0.250 in SP
9977
Drive Package With Motor Included
Yes
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1
Fan RPM
745
Fan Voltage
208-230/460 V AC
Fiberglass Wall Shutter Number
5C216
Flange Depth
1-1/4 in
Flange Width
34 in
Frame Material
Galvanized Steel
Full Load Amps
3.2-3.2/1.6
Galvanized Wall Shutter Number
1C055
Height
34 in
Hz
60
Includes
Drive Package
Intake Guard Number
1WBU4
Max BHP
1.15
Max Depth
20 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation
Class F
Motor RPM
1750
Motor Type
3-Phase
Motorized Wall Galv. Shutter Stock Number
3C728
Mounting Position
Horizontal or Vertical
Number of Blades
5
Phase
3
Propeller Material
Galvanized Steel
Shaft Diameter
1 in
Sones @ 0.000 in SP @ 5 feet
21
Sones @ 0.250 in SP @ 5 feet
19.8
Venturi Clearance Diameter
30-3/8 in
Venturi Depth
5-1/4 in
Wall Collar Stock Number
1WBV2
Weatherhood Number
1WBW1
Width (Inches)
34
