OEM#: 7M7X2New OEM Original Outright

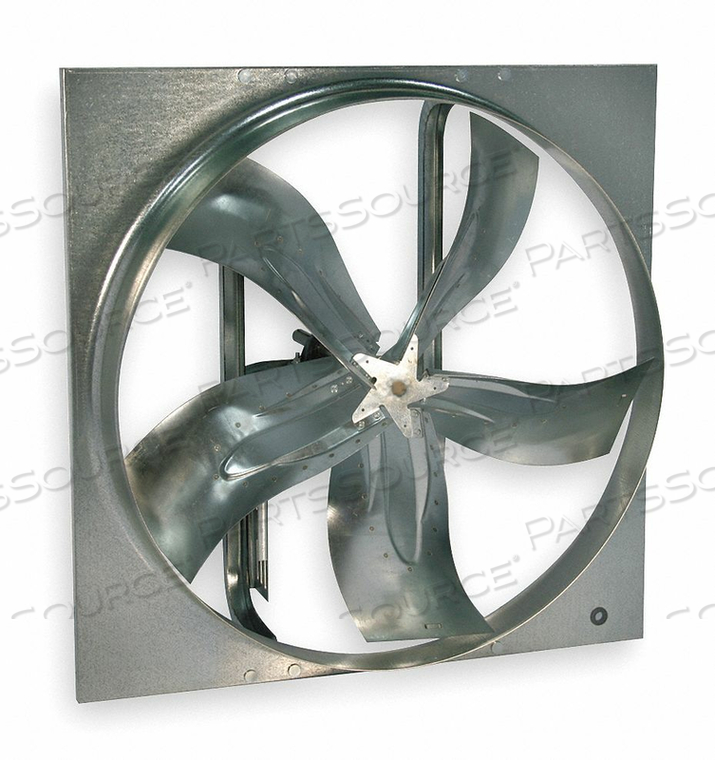

MED DUTY FAN 8734 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,766.78 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7M7X2
MED DUTY FAN 8734 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO
MED DUTY FAN 8734 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7M7X2
MED DUTY FAN 8734 CFM 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,766.78 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7M7X2 Key Specs
Item
MED DUTY FAN 8734 CFM 208-230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7M7X2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Aluminum Wall Shutter Number
4FZH7
Assembly
Unassembled
Bearing Size
3/4 in
Bearing Type
Regreasable Pillow Block
Blade Diameter
24 in
CFM @ 0.000 in SP
8734
CFM @ 0.125 in SP
8173
CFM @ 0.250 in SP
7507
CFM @ 0.375 in SP
6279
Drive Package With Motor Included
Yes
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1
Fan RPM
930
Fan Voltage
208-230/460 V AC
Flange Depth
1-1/4 in
Flange Width
28 in
Frame Material
Galvanized Steel
Full Load Amps
3.2-3.2/1.6
Height
28 in
Hz
60
Includes
Drive Package
Intake Guard Number
1WBU3
Max BHP
1.15
Max Depth
18 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation
Class F
Motor RPM
1750
Motor Type
3-Phase
Motorized Wall Galv. Shutter Stock Number
3C327
Mounting Position
Horizontal or Vertical
Number of Blades
5
Phase
3
Propeller Material
Galvanized Steel
Shaft Diameter
3/4 in
Sones @ 0.000 in SP @ 5 feet
27
Sones @ 0.250 in SP @ 5 feet
17.7
Venturi Clearance Diameter
24-3/8 in
Venturi Depth
4-3/8 in
Wall Collar Stock Number
1WBV1
Weatherhood Number
1WBV9
Width (Inches)
28
