OEM#: 7F955New OEM Original Outright

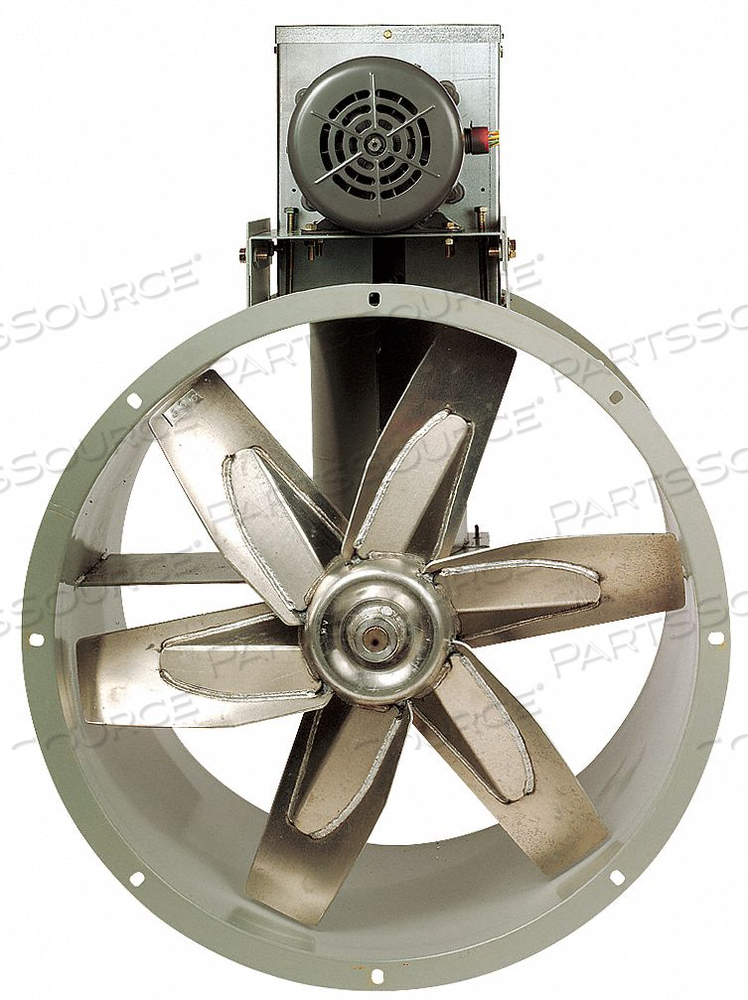

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, P by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$2,209.82 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7F955
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, P by DAYTON ELECTRIC MANUFACTURING CO
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, P by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7F955
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, P by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$2,209.82 each

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, PHASE 1, MOTOR HORSEPOWER 1 HP, AIRFLOW @ 0.000 IN SP 4,671 CFM, MAXIMUM NOISE LEVEL @ 5 FEET 32 SONES, ASSEMBLY UNASSEMBLED, FOR AIR TYPE FLAMMABLE VAPOR, BLADE MATERIAL ALUMINUM, HOUSING MATERIAL STEEL, NUMBER OF BLADES 6, NUMBER OF SPEEDS 1, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN COOLED, STANDARDS AMCA, BOLT

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7F955 Key Specs
Item
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 18 IN, NAMEPLATE VOLTAGE 115/230V AC, P
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7F955
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Unassembled
Bearing Type
Ball
Blade Dia.
18 in
Blade Material
Spark Resistant Aluminum
Bolt Circle Dia.
19 7/8 in
CFM @ 0.000-In. SP
4,671 cfm
CFM @ 0.125-In. SP
4,504 cfm
CFM @ 0.250-In. SP
4,321 cfm
CFM @ 0.500-In. SP
3,914 cfm
CFM @ 0.750-In. SP
3,421 cfm
CFM @ 1.000-In. SP
2,163
Companion Flange Stock No.
4C718
Dimension A
21 1/8 in
Dimension B
12 1/2 in
Dimension C
18 1/2 in
Dimension D
16 1/2 in
Dimension E
5/16 in
Drive Type
Belt-Drive
Fan RPM
1,988
Full Load Amps
13.6/6.8
Height
31 in
Housing Dia. w/Mtg. Flange
21 1/8 in
Housing Dia. w/o Mtg. Flange
18 1/2 in
Housing Finish
Baked Enamel
Housing Material
Steel
Hz
60 Hz
Includes
Belt Guard
Inlet Dia.
18 1/2 in
Max. Ambient Temp.
104 Degrees F
Max. BHP
0.91 hp
Max. Depth
16 1/2 in
Max. Inlet Temp.
200 Degrees F
Max. Motor Height
9 in
Motor Enclosure
Hazardous Location, Totally Enclosed Fan-Cooled
Motor HP
1 hp
Motor RPM
1,725 RPM
Motor Type
Capacitor Start
Mounting Position
Vertical/Horizontal
Number of Blades
6
Outlet Dia.
18 1/2 in
Phase
1
Replacement Fan Blade Stock No.
4C715
Shaft Dia.
7/8 in
Sones @ 0.250-In. SP @ 5 Ft.
32
Standards
AMCA
Voltage
115/230
Width
21 in
