OEM#: 7E662New OEM Original Outright

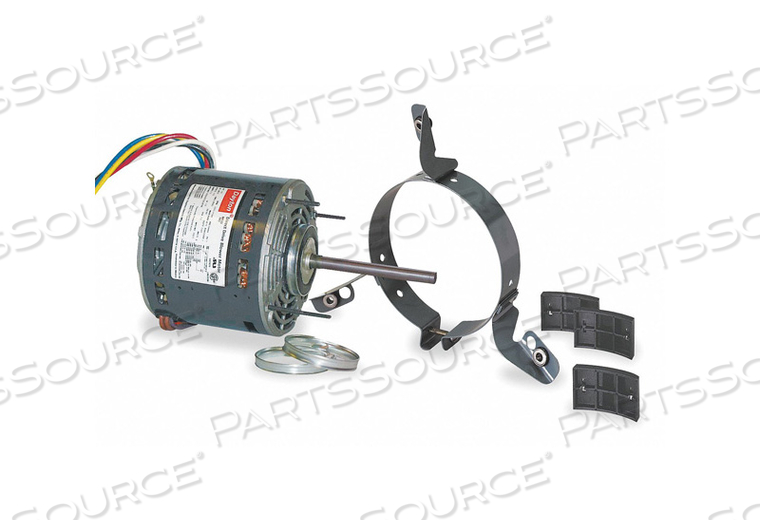

MOTOR PSC 1/4HP 1075/3 277 V RING/STUD by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$309.25 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7E662
MOTOR PSC 1/4HP 1075/3 277 V RING/STUD by DAYTON ELECTRIC MANUFACTURING CO
MOTOR PSC 1/4HP 1075/3 277 V RING/STUD by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7E662
MOTOR PSC 1/4HP 1075/3 277 V RING/STUD by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$309.25 each

DIRECT DRIVE BLOWER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/4 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 3, VOLTAGE 277V AC, FULL LOAD AMPS 2.0 A, 48YZ FRAME, MOTOR THERMAL PROTECTION AUTO, 60 HZ HZ, MOTOR SERVICE FACTOR 1, INS. CLASS B, MOTOR SHAFT ROTATION CW/CCW, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR ENCLOSURE DESIGN OPEN AIR-OVER, MOTOR MOUNTING TYPE RING/STUD, MOTOR MOUNTING POSITION ALL ANGLE

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7E662 Key Specs
Item
MOTOR PSC 1/4HP 1075/3 277 V RING/STUD
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7E662
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Capacitor Required
2MDV3
Duty
Continuous
Frame
48YZ
Full Load Amps
2
HP
1/4 in
Hz
60
Ins. Class
B
Length Less Shaft
5-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1075
Number of Speeds
3
Overall Length
11-7/16 in
Phase
1
Ring to Ring Center
5 in
Shaft Diameter
1/2 in
Shaft Length
6 in
Voltage
277
Voltage Compatibility
208-230/277, 265, 277
