OEM#: 7AF72New OEM Original Outright

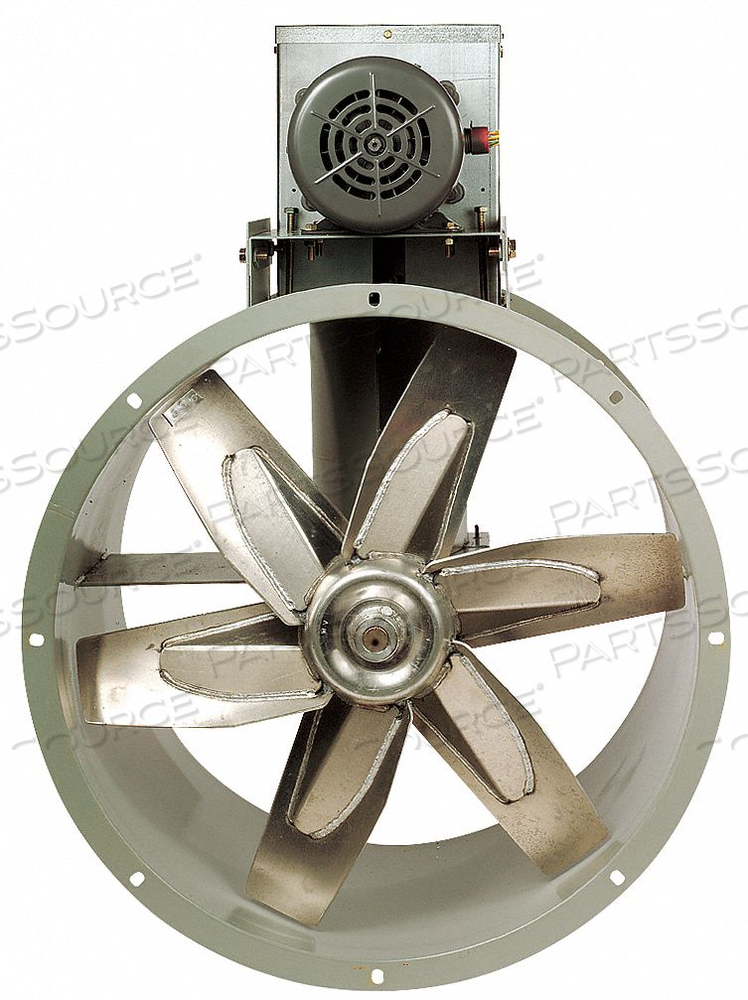

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$2,265.70 each
$2,540.36 Savings: $274.66 (11%)
Ready to ship
HomeDAYTON ELECTRIC MANUFACTURING CO7AF72
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 7AF72
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V A by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$2,265.70 each
$2,540.36 Savings: $274.66 (11%)

TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V AC, PHASE 1, MOTOR HORSEPOWER 3/4 HP, AIRFLOW @ 0.000 IN SP 6,470 CFM, MAXIMUM NOISE LEVEL @ 5 FEET 29 SONES, ASSEMBLY UNASSEMBLED, FOR AIR TYPE FLAMMABLE VAPOR, BLADE MATERIAL ALUMINUM, HOUSING MATERIAL STEEL, NUMBER OF BLADES 6, NUMBER OF SPEEDS 1, MOTOR ENCLOSURE TOTALLY ENCLOSED FAN COOLED, STANDARDS AMCA,

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 7AF72 Key Specs
Item
TUBEAXIAL FAN, DRIVE TYPE BELT DRIVE, INCLUDES DRIVE PACKAGE YES, INCLUDES MOTOR YES, BLADE DIAMETER 24 IN, NAMEPLATE VOLTAGE 115/208-230V A
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7AF72
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Unassembled
Bearing Type
Ball
Blade Dia.
24 in
Blade Material
Aluminum
Bolt Circle Dia.
25 3/4 in
CFM @ 0.000-In. SP
6,470 cfm
CFM @ 0.125-In. SP
6,096 cfm
CFM @ 0.250-In. SP
5,678 cfm
CFM @ 0.500-In. SP
4,600 cfm
Companion Flange Stock No.
3C436
Dimension A
27 in
Dimension B
16 3/4 in
Dimension C
24 5/16 in
Dimension D
18 in
Dimension E
7/16 in
Drive Type
Belt-Drive
Fan RPM
1,199
Full Load Amps
11.0/5.4-5.5
Height
37 1/4 in
Housing Dia. w/Mtg. Flange
27 in
Housing Dia. w/o Mtg. Flange
24 5/16 in
Housing Finish
Baked Enamel
Housing Material
Steel
Hz
60 Hz
Includes
Drive Package and Belt Guard
Inlet Dia.
24 7/16 in
Max. Ambient Temp.
104 Degrees F
Max. BHP
0.65 hp
Max. Depth
18 in
Max. Inlet Temp.
200 Degrees F
Max. Motor Height
10 in
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor HP
3/4 hp
Motor RPM
1,725 RPM
Motor Type
Capacitor Start, Hazardous Location
Mounting Position
Vertical/Horizontal
Number of Blades
6
Outlet Dia.
24 7/16 in
Phase
1
Replacement Fan Blade Stock No.
4C664
Shaft Dia.
1 in
Sones @ 0.250-In. SP @ 5 Ft.
29
Standards
AMCA
Voltage
115/208-230
Width
26 7/8 in
