OEM#: 71626876MNew OEM Original Outright

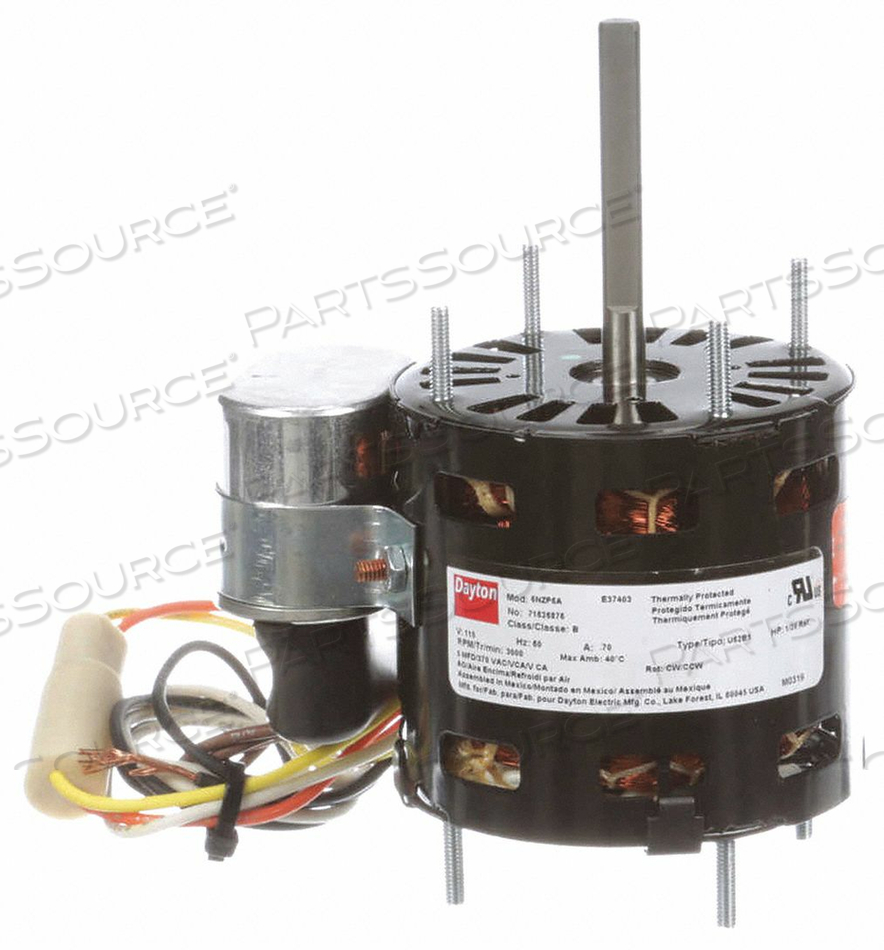

HVAC MOTOR 1/20 HP 3000 RPM 115V 3.3 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$122.46 each
OEM#: 71626876MHVAC MOTOR 1/20 HP 3000 RPM 115V 3.3 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$122.46 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 71626876M Key Specs
Item
HVAC MOTOR 1/20 HP 3000 RPM 115V 3.3
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
71626876M
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Replaces 1/20 HP PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Body Diameter
3.3 in
Capacitor Required
Yes
Cord Length
20 in
Country of Origin
Mexico
Duty
Continuous
Frame
3.3
Full Load Amps
0.63
HP
1/20
Hz
60
Includes
4 MFD 370 V AC Capacitor
Ins. Class
B
Length Less Shaft
3-11/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Pattern
2 x 2
Mounting Stud Location
4/Both Ends
Nameplate RPM
3000
Number of Shafts
1
Number of Speeds
1
Phase
1
Shaft Diameter
5/16 in
Shaft Length
2-1/2 in
Standards
CSA Certified (244617), UL Recognized (E37403)
Stud/Base Mtg. Pattern
2 x 2 in
Voltage
115
