OEM#: 6XJ01New OEM Original Outright

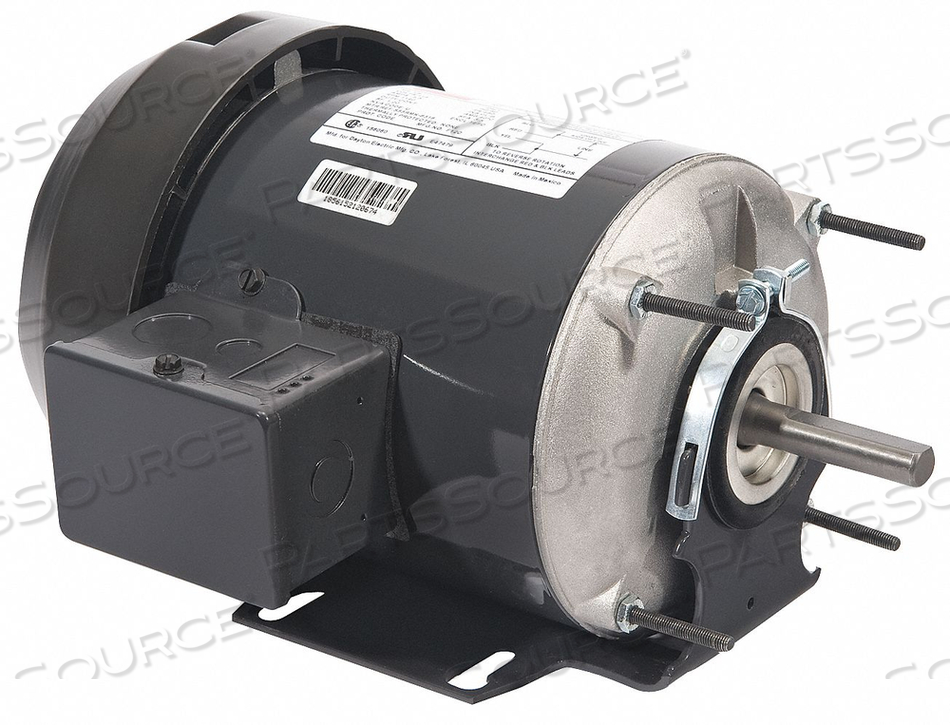

GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$362.63 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO6xj01
GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50 by DAYTON ELECTRIC MANUFACTURING CO
GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6XJ01
GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$362.63 each

GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 1/8 HP, NAMEPLATE RPM 1,140, NO. OF SPEEDS 1, VOLTAGE 115V AC, FULL LOAD AMPS 3.5 A, 48Z FRAME, HZ 60 HZ, MOTOR SERVICE FACTOR 1, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR THERMAL PROTECTION NONE, DUTY CYCLE CONTINUOUS, INS. CLASS B, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR SHAFT DESIGN FLAT, MOTOR FRAME MATE

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6XJ01 Key Specs
Item
GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6XJ01
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
48Z
Full Load Amps
3.5
HP
1/8
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
9-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
50 %
Number of Speeds
1
Overall Length
11 1/16 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
1-7/8 in
Standards
CSA (156060), UL (E47479)
Voltage
115
    Technical Specs
    P/N: 6XJ01 Key Specs
    Item
    GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50
    OEM
    DAYTON ELECTRIC MANUFACTURING CO
    OEM #
    6XJ01
    Condition
    New OEM Original
    Returnable
    No
    Warranty
    Mfr Warranty
    Country of Origin
    Mexico
    Duty
    Continuous
    Frame
    48Z
    Full Load Amps
    3.5
    HP
    1/8
    Hz
    60
    Includes
    Conduit Box
    Ins. Class
    B
    Length Less Shaft
    9-3/16 in
    Max Ambient Temperature
    40 Degrees C
    Motor Application
    General Application
    Motor Bearings
    Ball
    Motor Design
    Split-Phase
    Motor Efficiency Group
    Standard Efficient
    Motor Enclosure Design
    Totally Enclosed Fan-Cooled
    Motor Frame Material
    Rolled Steel
    Motor Mounting Type
    Cradle Base
    Motor Service Factor
    1
    Motor Shaft Design
    Flat
    Motor Shaft Rotation
    CW/CCW
    Motor Thermal Protection
    None
    Nameplate RPM
    1140
    Nominal Efficiency
    50 %
    Number of Speeds
    1
    Overall Length
    11 1/16 in
    Phase
    1
    Shaft Diameter
    1/2 in
    Shaft Length
    1-7/8 in
    Standards
    CSA (156060), UL (E47479)
    Voltage
    115
      Technical Specs
      P/N: 6XJ01 Key Specs
      Item
      GP MTR SPLIT PH TEFC 1/8 HP 1140 RPM 50
      OEM
      DAYTON ELECTRIC MANUFACTURING CO
      OEM #
      6XJ01
      Condition
      New OEM Original
      Returnable
      No
      Warranty
      Mfr Warranty
      Country of Origin
      Mexico
      Duty
      Continuous
      Frame
      48Z
      Full Load Amps
      3.5
      HP
      1/8
      Hz
      60
      Includes
      Conduit Box
      Ins. Class
      B
      Length Less Shaft
      9-3/16 in
      Max Ambient Temperature
      40 Degrees C
      Motor Application
      General Application
      Motor Bearings
      Ball
      Motor Design
      Split-Phase
      Motor Efficiency Group
      Standard Efficient
      Motor Enclosure Design
      Totally Enclosed Fan-Cooled
      Motor Frame Material
      Rolled Steel
      Motor Mounting Type
      Cradle Base
      Motor Service Factor
      1
      Motor Shaft Design
      Flat
      Motor Shaft Rotation
      CW/CCW
      Motor Thermal Protection
      None
      Nameplate RPM
      1140
      Nominal Efficiency
      50 %
      Number of Speeds
      1
      Overall Length
      11 1/16 in
      Phase
      1
      Shaft Diameter
      1/2 in
      Shaft Length
      1-7/8 in
      Standards
      CSA (156060), UL (E47479)
      Voltage
      115
