OEM#: 6WY30New OEM Original Outright

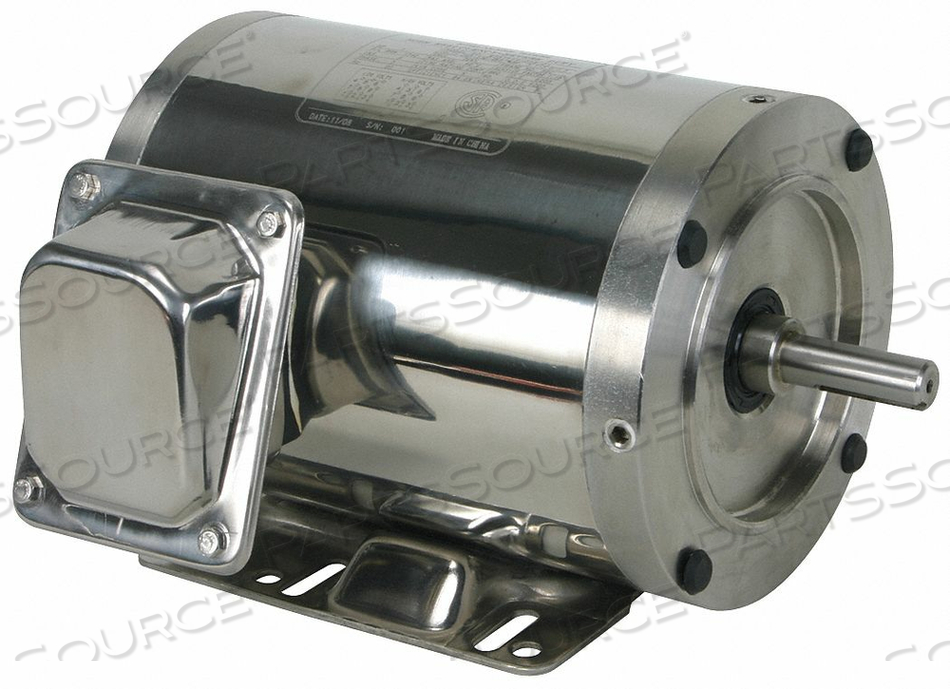

MOTOR 1/2 HP 1155 56C 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$753.50 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO6wy30
MOTOR 1/2 HP 1155 56C 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO
MOTOR 1/2 HP 1155 56C 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6WY30
MOTOR 1/2 HP 1155 56C 208-230/460V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$753.50 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6WY30 Key Specs
Item
MOTOR 1/2 HP 1155 56C 208-230/460V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6WY30
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
China
Drain Plugs
4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Duty
Continuous
Endshields
300 Series Stainless Steel
Frame
56C
Full Load Amps
1.9-1.8/0.9
HP
1/2
Hz
60
Ins. Class
F
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Stainless Steel
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1155
Nominal Efficiency
80 %
Overall Length
9-7/8 in
Phase
3
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Shaft Material
300 Series Stainless Steel
Standards
CE Compliant, CSA Certified, UL Component Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
